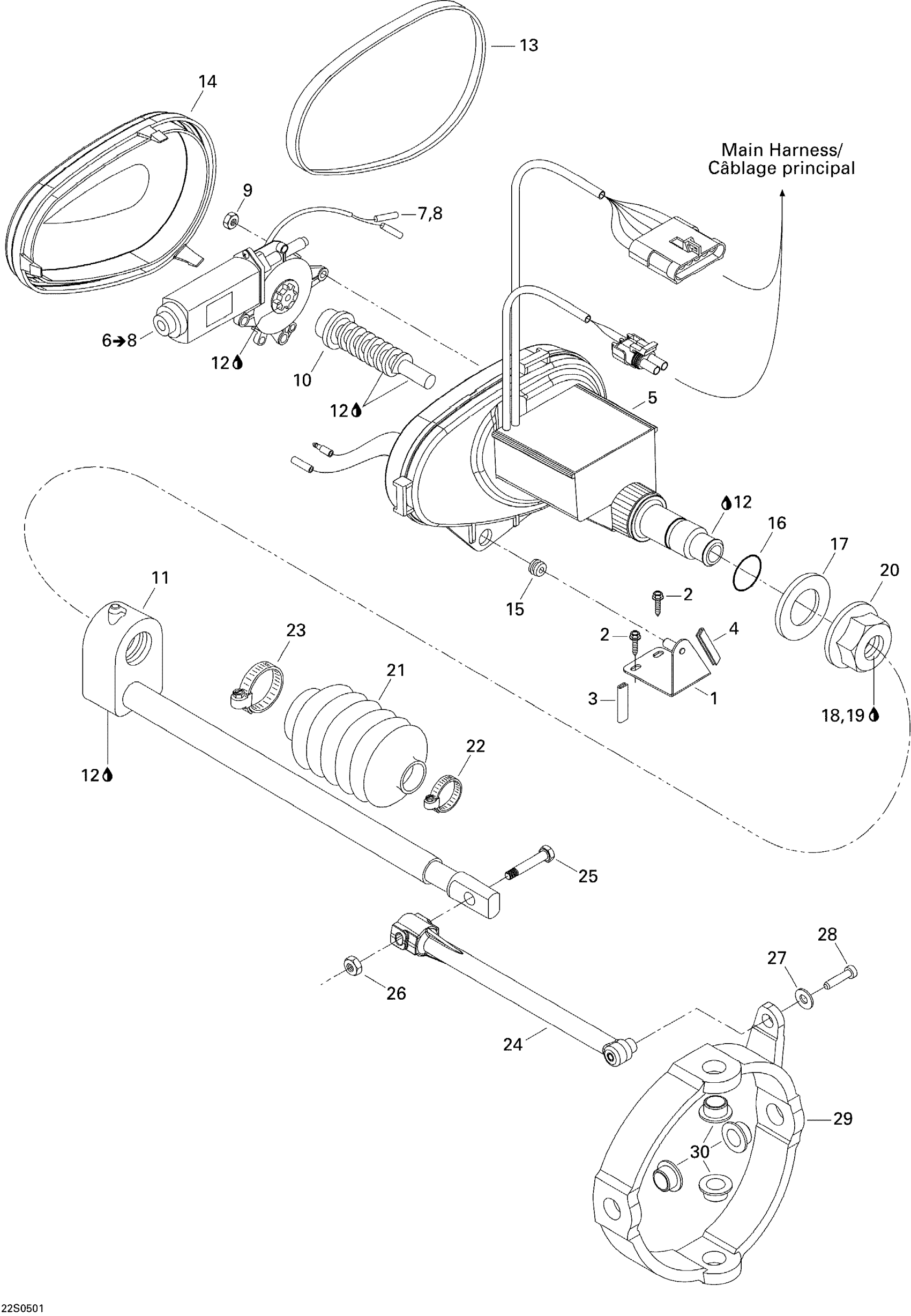

Sea-doo RXP, 2005 Trim, Electrical Diagram

#

Description
Price

1

V.T.S. SUPPORT ASSY - Call your local BRP dealership

292000250

Unavailable

2

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

3

Was 271000110 Protection Trim

219704353

$15.99

4

Was 271000110 Protection Trim

219704353

$15.99

5

V.T.S Housing

278001605

$419.99

6

Windshield Motor

278002579

$234.99

7

Insulation Sheath

278000231

$5.08

8

Male Terminal

278000230

$4.39

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Worm Screw

278000428

$14.30

11

Sliding Block Ass’y

278001698

$43.99

12

Synthetic Grease, 400 G

293550010

Unavailable

13

GASKET - Call your local BRP dealership

293200027

Unavailable

14

V.T.S. COVER - Call your local BRP dealership

278000595

Unavailable

15

GROMMET - Call your local BRP dealership

293720015

Unavailable

16

O-Ring

293300044

$1.05

17

SEAL WASHER - Call your local BRP dealership

293830027

Unavailable

18

Was 293800041 Loctite Primer 7649

219704458

$39.99

19

Loctite 243, 10 ml

293800060

$21.49

20

SPECIAL NUT M27 - Call your local BRP dealership

211100020

Unavailable

21

Protector Hose

271000459

$17.49

22

Clamp

293650082

$3.99

23

CLAMP - Call your local BRP dealership

293650083

Unavailable

24

V.T.S. ROD - Call your local BRP dealership

271001179

Unavailable

25

HEX. SCREW M6 X 35 - Call your local BRP dealership

250000173

Unavailable

26

Hex. Elastic Stop Nut M6

232561600

$1.15

27

Flat Washer 5 mm, Stainless

234052600

$0.77

28

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

29

Trim Ring, Black

266000013

$119.99

30

Venturi Bushing

293900007

$5.45
