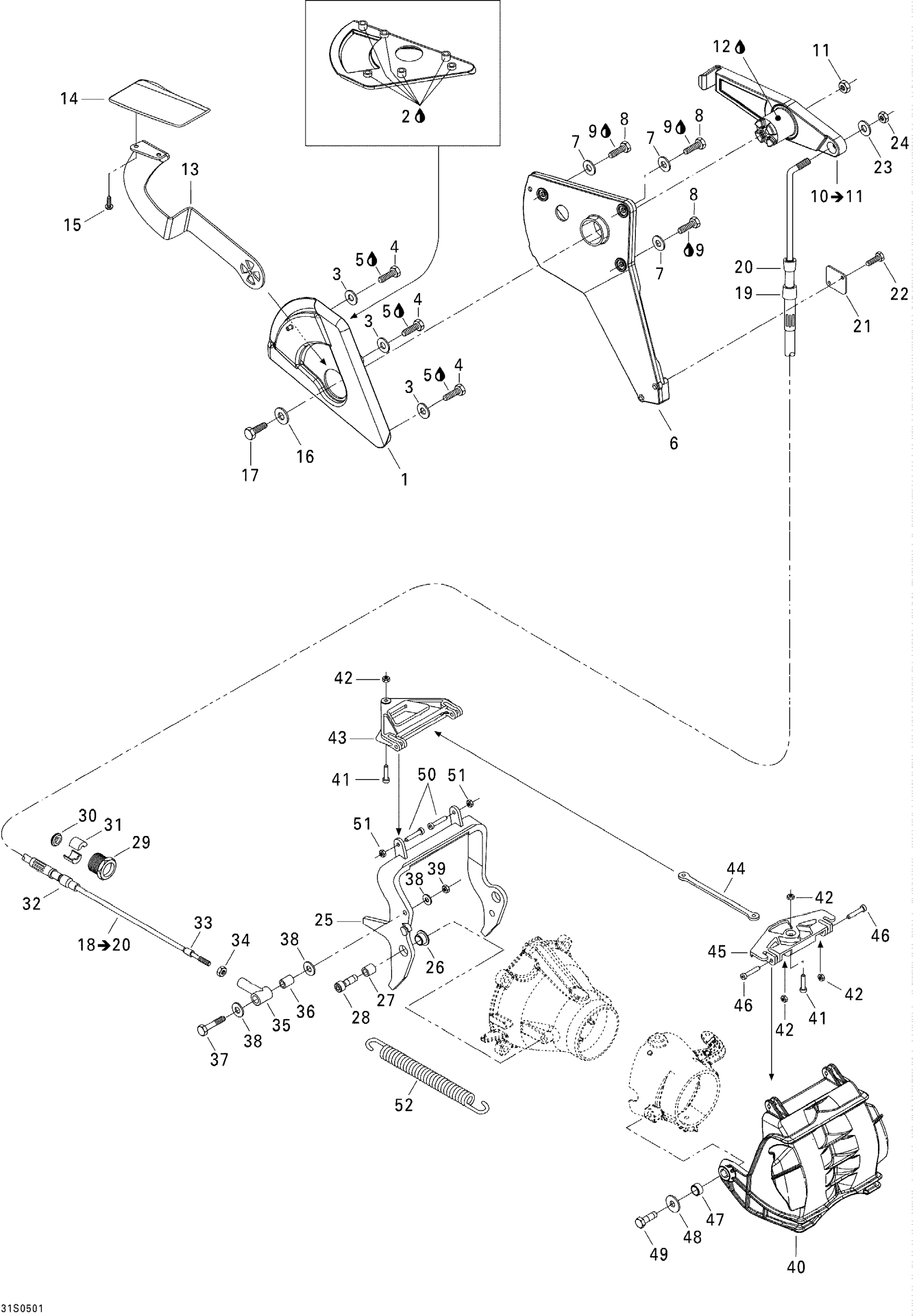

Sea-doo RXP, 2005 05- Reverse Diagram
#
1
REVERSE HANDLE HOUSING - Call your local BRP dealership
268000009
Unavailable
2
Silicone Sealant 51388, 300 ml
296000309
$36.99
3
Flat Washer M6.6 X 22
250200022
$2.72
4
Hex. Cap Screw M6 X 12
207161260
$1.26
5
Loctite 243, 10 ml
293800060
$21.49
6
REVERSE CABLE SUPPORT - Call your local BRP dealership
268000010
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
Hex. Screw M6 X 16
207161660
$1.59
9
Loctite 243, 10 ml
293800060
$21.49
10
Lever Ass.
271000986
$42.99
11
Hex. Elastic Stop Nut M6
232561600
$1.15
12
Synthetic Grease, 400 G
293550010
Unavailable
13
HANDLE LEVER - Call your local BRP dealership | RXP
271000982
Unavailable
14
REVERSE HANDLE, VIPER RED - Call your local BRP dealership | RXP Viper Red
271001511
Unavailable
14
REVERSE HANDLE, APPLE GREEN - Call your local BRP dealership | Apple Green
271001334
Unavailable
15
Phillips Screw M5 x 12
250000319
$1.39
16
Stainless Flat Washer M6
234061600
$0.33
17
Hex. Screw M6 X 16
207161660
$1.59
18
Reverse Cable
268000017
$153.49
19
Boot, Large
277000473
Unavailable
20
Boot, Small
277000466
Unavailable
21
BRACKET - Call your local BRP dealership
277001058
Unavailable
22
Hex. Flange Screw M5 X 30
207153060
$1.99
23
Flat Washer M5, Stainless
234051600
$0.77
24
HEX. ELASTIC STOP NUT - Call your local BRP dealership
212000006
Unavailable
25
ARM BLACK - Call your local BRP dealership
271001012
Unavailable
26
Venturi Bushing
271000321
$8.69
27
Spacer
271001039
$16.49
28
PIVOT SCREW M8 X 25 - Call your local BRP dealership
250000026
Unavailable
29
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
30
RUBBER WASHER - Call your local BRP dealership
211100009
Unavailable
31
Half Ring
277000055
$9.49
32
Boot, Large
277000473
Unavailable
33
Boot, Small
277000466
Unavailable
34
Hex. Nut
212100005
$1.35
35
Joint
277001204
$18.49
36
Spacer
271001020
$12.99
37
Hex. Screw M6 X 35
207063560
$2.22
38
Flat Washer M6, Stainless
234062600
$0.77
39
Hex. Elastic Stop Nut M6
232561600
$1.15
40
Gate Reverse
271001317
Unavailable
41
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
42
Hex. Elastic Nut M5 | X
232551600
$1.15
43
TRIANGLE - Call your local BRP dealership
268000013
Unavailable
44
CONNECTOR ROD - Call your local BRP dealership
271001018
Unavailable
45
ROD PIVOT - Call your local BRP dealership
268000014
Unavailable
46
SCREW PIVOT - Call your local BRP dealership
250000023
Unavailable
47
Spacer
277001066
Unavailable
48
Flat Washer 8 mm, Stainless
234082600
$2.43
49
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
50
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
51
Hex. Elastic Nut M5 | X
232551600
$1.15
52
Spring
271001328
$17.49
