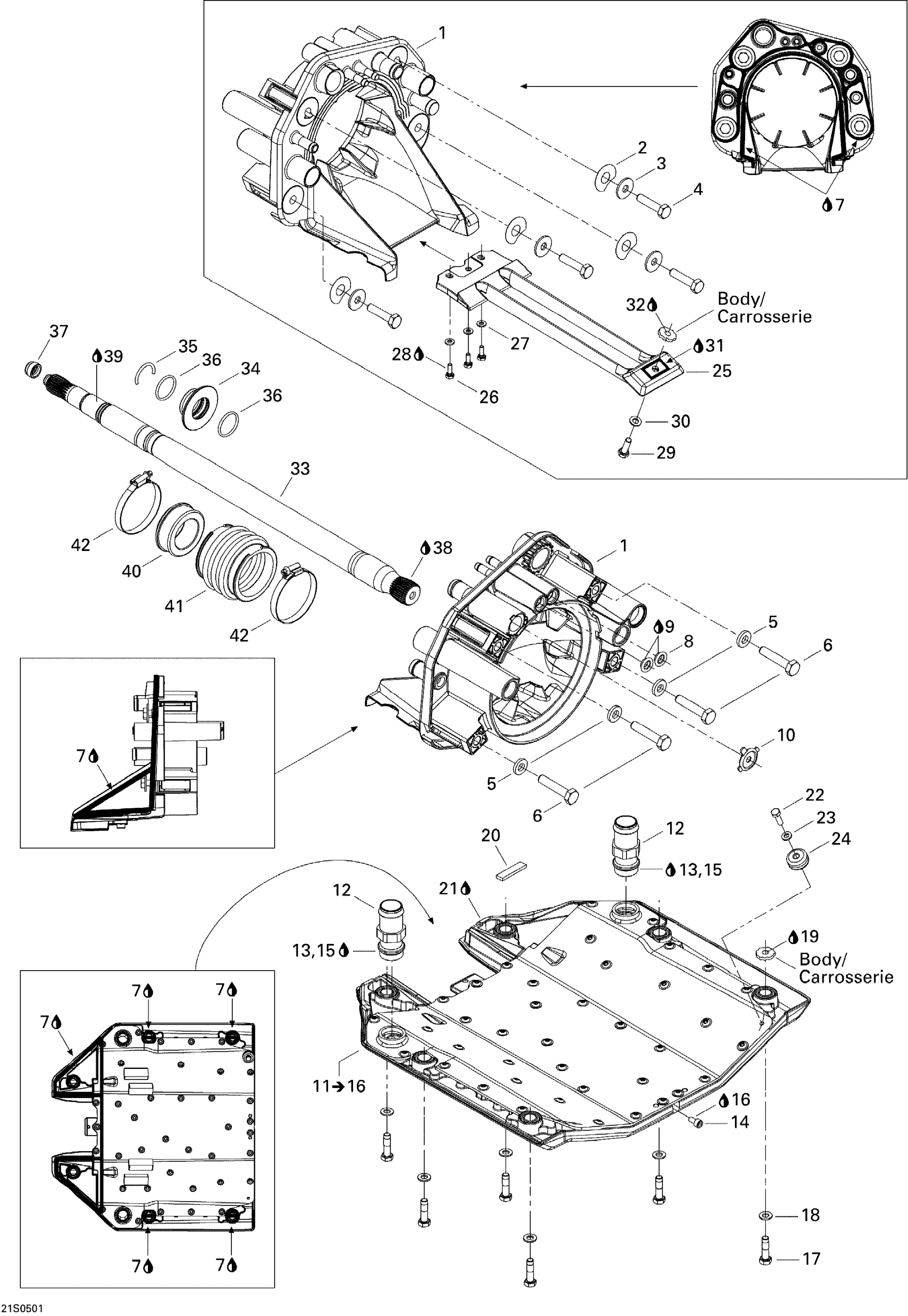

Sea-doo RXP, 2005 05- Propulsion Diagram
#
Description
Price
1
Pump Support
271001251
Unavailable
2
Shim 0.3 mm
272000053
$11.49
3
Flat Washer 10 mm, Stainless
234002600
$2.22
4
HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership
250000189
Unavailable
5
Flat Washer
211200051
$1.68
6
HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership
250000188
Unavailable
7
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
8
Watertight Seal
293250084
$7.49
9
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
10
Reducer This part replaces 291001887.
291004649
$17.49
11
Riding Plate | Includes 11 to 16
271001491
Unavailable
12
STRAIGHT PLASTIC FITTING - Call your local BRP dealership
293710087
Unavailable
13
Was 293800041 Loctite Primer 7649
219704458
$39.99
14
Socket Drain Plug M6 X 12
250500005
$16.49
15
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
16
Was 293800013 Loctite 56765
219704454
$65.99
17
Hex. Screw M8 X 40, Scotch Grip
250000230
$2.53
18
Stainless, Flat Washer 8 mm
234081600
$0.55
19
Silicone Sealant 51388, 300 ml
296000309
$36.99
20
Gasket, Neoprene 2000Mm Long
219704476
$15.36
21
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
22
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
23
Stainless Flat Washer M6
234061600
$0.33
24
Anode Zinc
271001813
$18.99
25
Pump Grate
271001476
Unavailable
26
Hex. Screw M6 X 16
207161660
$1.59
27
Stainless Flat Washer M6
234061600
$0.33
28
Loctite 271, 10 ml
293800005
$26.99
29
Hex. Screw M8 X 30, Scotch Grip
207383060
$1.90
30
Stainless, Flat Washer 8 mm
234081600
$0.55
31
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
$64.99
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
Drive Shaft
271001601
$328.49
34
Carbon Ring Kit | Includes 280b to 280b4
295501204
$82.49
35
C-Clip
271001577
$3.27
36
O-Ring
293300107
$1.01
37
Drive Shaft Plug
272000173
$8.68
38
Synthetic Grease, 400 G
293550010
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4
271001420
Unavailable
41
Bellow This part replaces 271001422.
271001933
$23.49
42
Norma Clamp
293650079
$11.60
