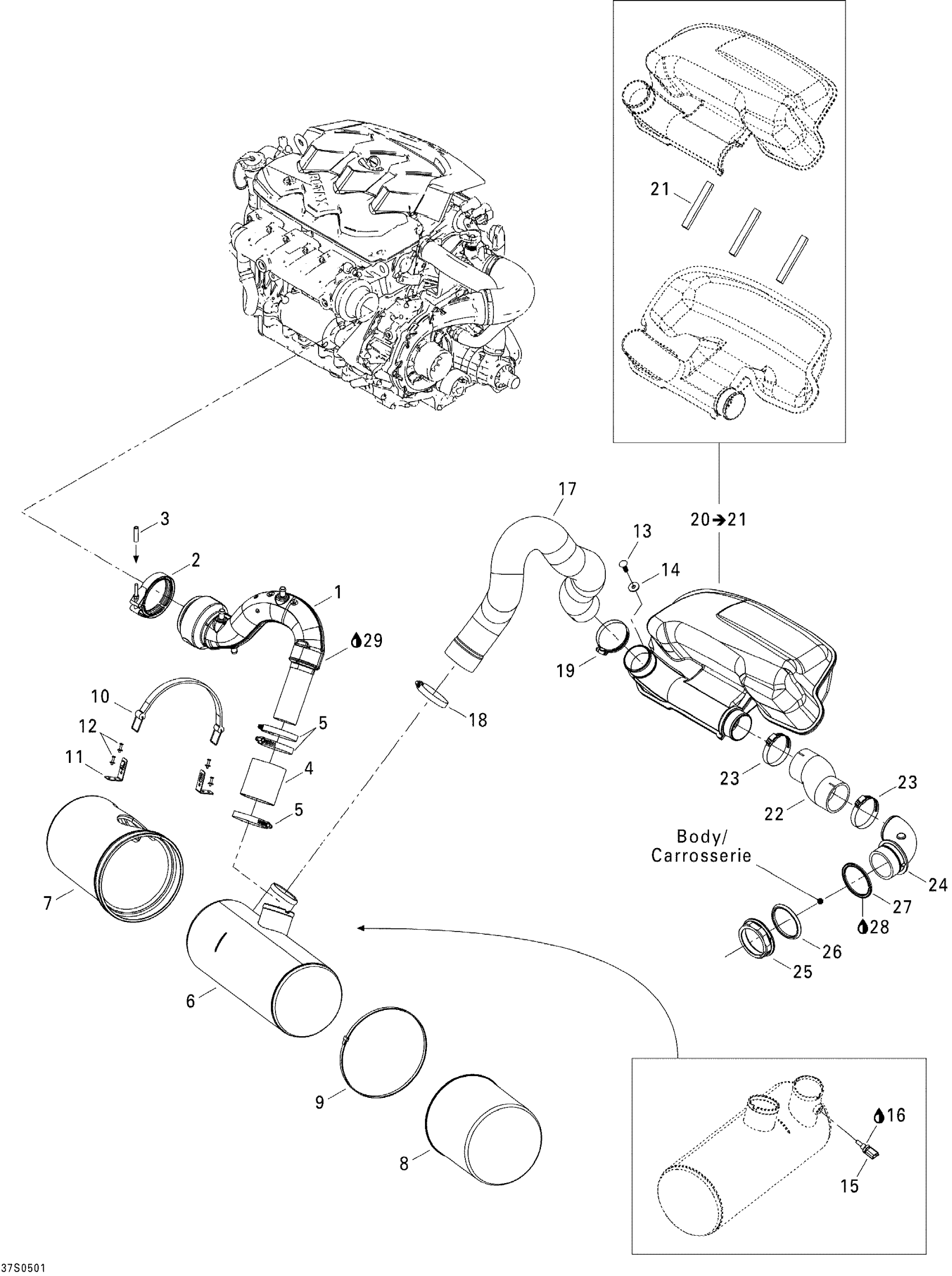

Sea-doo RXP, 2005 Exhaust System Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

3

Polyurethane Hose 10000Mm Long

219704410

$46.12

4

Exhaust Hose

274001302

$28.57

5

Tridon Clamp

293650179

$8.81

6

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

7

Front Muffler Cover

274001008

Unavailable

8

REAR MUFFLER COVER - Call your local BRP dealership

274000984

$138.43

9

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

$4.00

10

Fuel Tank Strap

293850036

$13.62

11

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

12

Avdel Rivet 3/16"

293150037

$0.47

13

Dart, Black

293730004

Unavailable

14

Flat Washer 8 mm, Stainless

234082600

$1.98

15

Temperature Sensor

278002895

$31.82

16

Était/Was 293800038 Loctite 518, 50 ml

219704456

$49.97

17

PIPE_EXHAUST F FORMED - Call your local BRP dealership This part replaces 274001297.

274001425

$83.05

18

Tridon Clamp

293650179

$8.81

19

Tridon Clamp

293650064

$7.80

20

Resonator

274001366

$136.47

21

Neoprene Seal (1PAC=3M)

219704364

$22.72

22

Rear Exhaust Hose This part replaces 274001427.

274001710

$38.32

23

Tridon Clamp

293650064

$7.80

24

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

$26.62

25

Nut 72 mm

274000224

$12.17

26

STABILIZING WASHER - Call your local BRP dealership

274000225

$6.42

27

GASKET - Call your local BRP dealership

293250041

$7.85

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77
