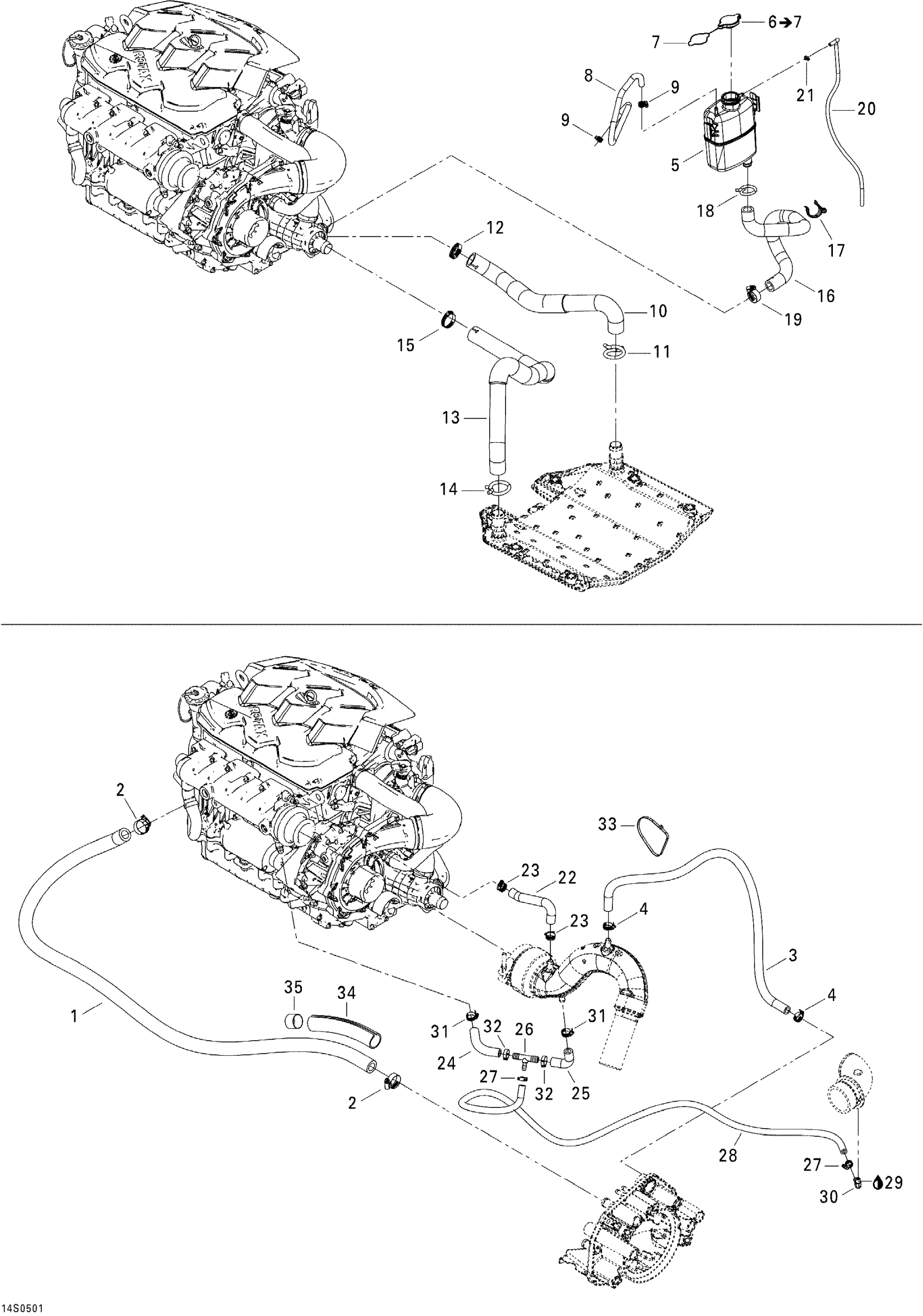

Sea-doo RXP, 2005 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.29

3

Was 276000001 Hose 12.5 mm

219704394

$52.99

4

Tridon Gear Clamp

293650172

$3.19

5

Coolant Tank

276000086

$114.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

8

Molded Hose

276000123

Unavailable

9

Tridon Gear Clamp

293650170

$2.00

10

RH RADIATOR HOSE - Call your local BRP dealership

276000247

Unavailable

11

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

12

Tridon Gear Clamp

293650045

$5.79

13

Radiator Hose This part replaces 276000249.

276000492

$56.99

14

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

15

Tridon Gear Clamp

293650045

$5.79

16

FORMED RETURN HOSE - Call your local BRP dealership

276000122

Unavailable

17

Retainer

275500526

$4.69

18

Spring Clamp

293650115

$3.19

19

Tridon Gear Clamp

293650019

$5.99

20

Polyurethane Hose 10000Mm Long

219704410

$57.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.49

22

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

23

Tridon Gear Clamp

293650172

$3.19

24

LOWER FORMED HOSE - Call your local BRP dealership

276000136

Unavailable

25

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

26

T-Fitting

293710116

$17.62

27

Tridon Gear Clamp

293650171

$3.19

28

Hose 8 mm

509000093

Unavailable

29

Was 293800013 Loctite 56765

219704454

$65.99

30

ELBOW FITTING 90 - Call your local BRP dealership

293700024

Unavailable

31

Tridon Gear Clamp

293650172

$3.19

32

Oetiker Clamp

293650012

$7.69

33

Tie Wrap 368 mm

293750008

$1.49

34

Tubing 25 MM 1000MM Long

219704402

$16.49

35

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable
