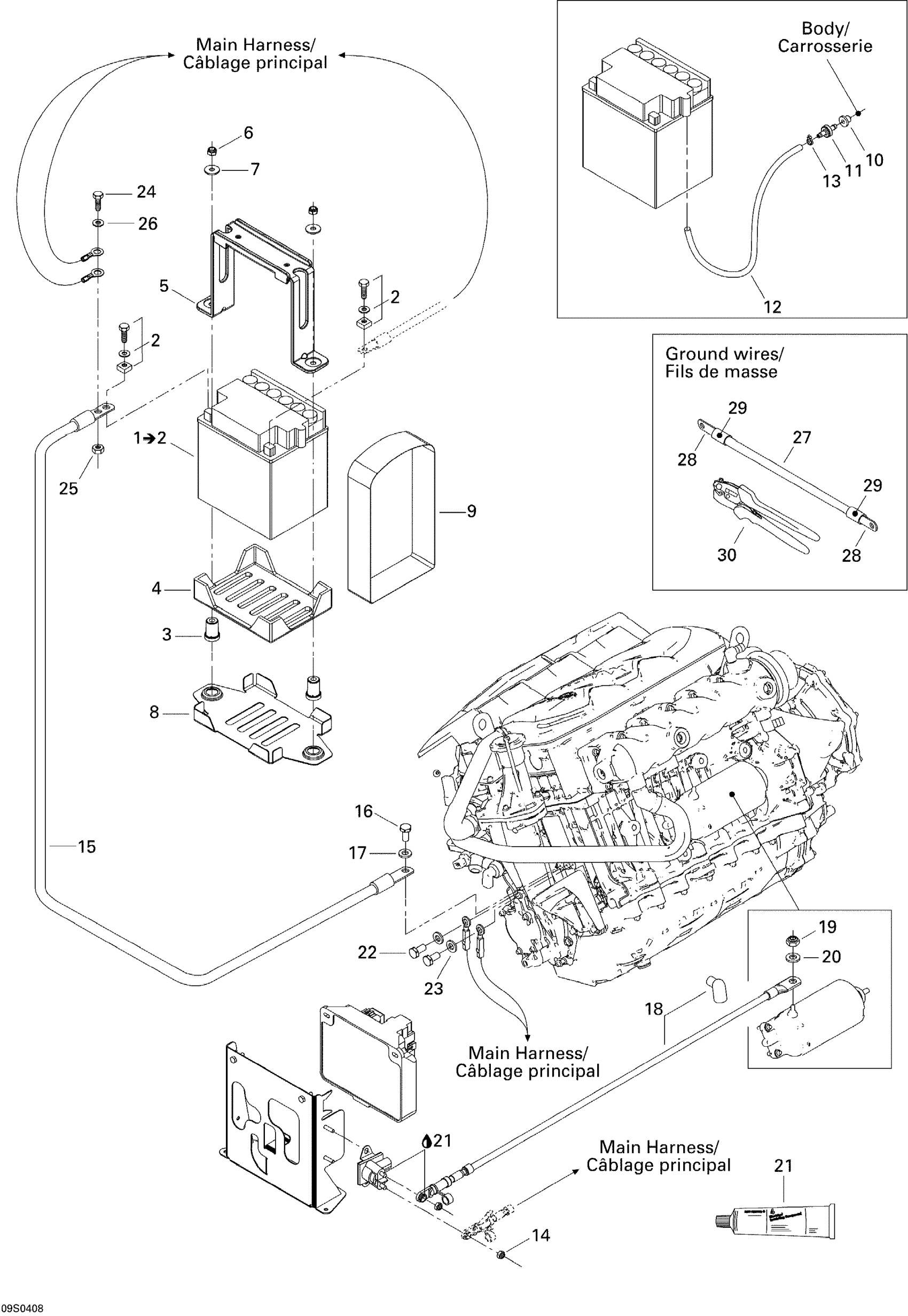

Sea-doo RXP, 2004 Electrical System Diagram

#

Description
Price

1

Battery, 30 Amperes

278001882

$184.01

2

Battery Bolt Kit

250000282

$7.29

3

BUSHING - Call your local BRP dealership

278001939

Unavailable

4

LOWER BATTERY PAD - Call your local BRP dealership

278001582

Unavailable

5

BATTERY SUPPORT - Call your local BRP dealership

278001677

Unavailable

6

Hex. Elastic Nut M8

232581600

$1.48

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

BATTERY SUPPORT - Call your local BRP dealership

278001966

Unavailable

9

BATTERY STRAP 337 MM - Call your local BRP dealership

278001764

Unavailable

10

Grommet

293720029

$1.59

11

CHECK VALVE - Call your local BRP dealership This part replaces 275500167.

275500499

Unavailable

12

HOSE 6 MM - Call your local BRP dealership

275500446

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

BATTERY GROUND CABLE ASS'Y - Call your local BRP dealership

278001592

Unavailable

16

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

17

Stainless Flat Washer M6

234061600

$0.33

18

STARTER CABLE - Call your local BRP dealership

278002267

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Stainless Flat Washer M6

234061600

$0.33

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.58

23

Stainless Flat Washer M6

234061600

$0.33

24

Hex. Cap Screw M6 X 12

207161260

$1.26

25

Hex. Elastic Stop Nut M6

232561600

$1.15

26

Stainless Flat Washer M6

234061600

$0.33

27

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable
