Partiron

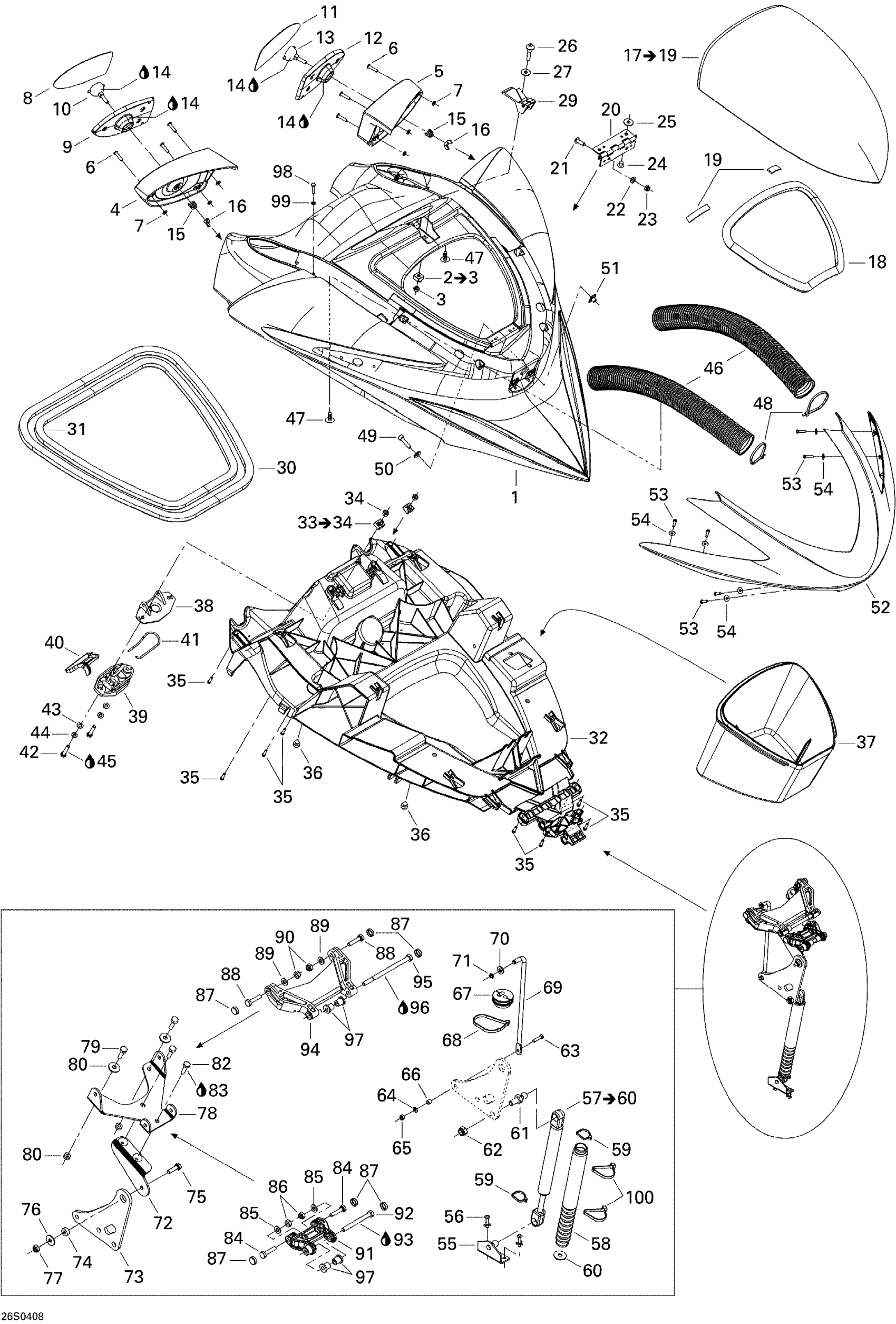

Sea-doo RXP, 2004 Front Cover Diagram

#

Description
Price

1

Upper Storage Cover, Apple Green | Apple Green

269501382

Unavailable

Superior Storage Cover | RXP (Yellow)

269501384

Unavailable

2

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

3

Hex. Nut M6

232061600

$1.15

4

RH Mirror Housing, Apple Green | Apple Green

269501204

Unavailable

RH Mirror Housing | RXP (Yellow)

269501285

Unavailable

5

LH MIRROR HOUSING, APPLE GREEN - Call your local BRP dealership | Apple Green

269501205

Unavailable

LH Mirror Housing | RXP (Yellow)

269501286

Unavailable

6

Pop Rivet 3/16"

293150005

$0.52

7

Flat Washer, Emhart

213200016

$0.72

8

RH Mirror

269500687

Unavailable

9

Frame Mirror

269500697

Unavailable

10

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

11

LH MIRROR - Call your local BRP dealership

269500788

Unavailable

12

Frame Mirror

269500697

Unavailable

13

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

14

Synthetic Grease, 400 G

293550010

Unavailable

15

Mirror Spring

269500453

$10.49

16

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

17

Access Cover Ass'y | Includes 17 to 19, Apple Green

269501006

Unavailable

18

Gasket, Neoprene 2000Mm Long

219704476

$15.36

19

Seal Tray 1000Mm Long

219704368

$13.99

20

HINGE - Call your local BRP dealership

269500338

Unavailable

21

Socket Head Screw M5 X 16

205451660

$1.15

22

Flat Washer | XT

211200035

$0.55

23

Hex. Elastic Nut M5 | X

232551600

$1.15

24

Pop Rivet 3/16"

204000081

$1.49

25

Flat Washer 5 mm, Stainless

234052600

$0.77

26

ANCHORING STUD - Call your local BRP dealership

291001242

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.77

29

Latch

269501487

$16.99

30

Was 293200017 Neoprene Seal

219704365

$149.99

31

Was 293200017 Neoprene Seal

219704365

$149.99

32

LOWER STORAGE COVER - Call your local BRP dealership | Includes 29 to 30

269501683

Unavailable

33

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

34

Hex. Nut M6

232061600

$1.15

35

Hex. Flange Screw K40 X 16

241141660

$1.48

36

Rubber Bumper

293830005

$8.09

37

STORAGE BOX - Call your local BRP dealership

269501133

Unavailable

38

Latch Ass'y

269700109

$24.99

39

Latch Ass'y

269700109

$24.99

40

Latch Ass'y

269700109

$24.99

41

Latch Spring

269700017

$9.19

42

Hex. Screw M6 X 30

207063060

$1.89

43

Stainless Flat Washer M6

234061600

$0.33

44

Lock Washer Helical M6

234161601

$1.15

45

Loctite 243, 10 ml

293800060

$21.49

46

VENTILALTION HOSE (BLACK) - Call your local BRP dealership

291002489

Unavailable

47

Black, Dart

293730011

$0.99

48

Tie Rap 371 mm

293750018

$0.56

49

Socket Head Screw M6 X 25

205062560

$1.69

50

Flat Washer M6, Stainless

234062600

$0.77

51

Nut Welded, M6

293100003

$9.12

52

Front Grille

269501238

$154.99

53

Hex. Flange Screw K40 X 16

241141660

$1.48

54

Flat Washer 4 mm, Stainless

234042600

$1.15

55

SHOCK SUPPORT - Call your local BRP dealership

291002124

Unavailable

56

Avdel Rivet 3/16"

293150037

$0.56

57

Gas Shock Ass'y | Includes 3 to 6

269501167

$79.99

58

BELLOW - Call your local BRP dealership

269501168

Unavailable

59

Tie Wrap 94 mm | 4X4

293750001

$1.03

60

Flat Washer, Aluminum

250200033

Unavailable

61

Ball Head Stud

250300016

$14.81

62

Hex. Elastic Nut M8

232581600

$1.48

63

Hex. Screw M4 X 16 | Europe

207141660

$1.47

64

Flat Washer 4 mm, Stainless

234041600

$1.15

65

Elastic Stop Nut M4

232541600

$1.15

66

SPACER - Call your local BRP dealership

269501130

Unavailable

67

CABLE GROMMET - Call your local BRP dealership | North America

293720070

Unavailable

68

Tie-Rap 180 mm

414115200

$0.11

69

ROD - Call your local BRP dealership

269500842

Unavailable

70

Stainless Flat Washer M6

234061600

$0.33

71

CIRCLIP 6 MM - Call your local BRP dealership | North America

293370005

Unavailable

72

SUPPORT LEVER - Call your local BRP dealership

269501742

Unavailable

73

LEVER - Call your local BRP dealership

269501576

Unavailable

74

SPACER - Call your local BRP dealership

269501172

Unavailable

75

Hex. Forming Screw M6 X 20

207162060

$1.29

76

Flat Washer M6, Stainless

234062600

$0.77

77

Hex. Elastic Stop Nut M6

232561600

$1.15

78

PIVOT SUPPORT - Call your local BRP dealership

269500703

Unavailable

79

Hex. Forming Screw M6 X 20

207162060

$1.29

80

Flat Washer M6, Stainless

234062600

$0.77

81

Hex. Elastic Stop Nut M6

232561600

$1.15

82

Hex. Forming Screw M6 X 20

207162060

$1.29

83

Loctite 243, 10 ml

293800060

$21.49

84

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

85

Stainless Flat Washer M6

234061600

$0.33

86

Hex. Elastic Stop Nut M6

232561600

$1.15

87

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

88

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

89

Stainless Flat Washer M6

234061600

$0.33

90

Hex. Elastic Stop Nut M6

232561600

$1.15

91

FRONT ARM - Call your local BRP dealership

269500704

Unavailable

92

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

93

Loctite 243, 10 ml

293800060

$21.49

94

REAR ARM - Call your local BRP dealership

269500705

Unavailable

95

Hex. Screw M6 X 100

230060060

$7.41

96

Loctite 243, 10 ml

293800060

$21.49

97

Sleeve

269500706

$4.65

98

Plastite Hex. Screw M6.8 X 35

243163560

$4.44

99

Flat Washer M6, Stainless

234062600

$0.77

100

Tie-Rap 180 mm

414115200

$0.11
