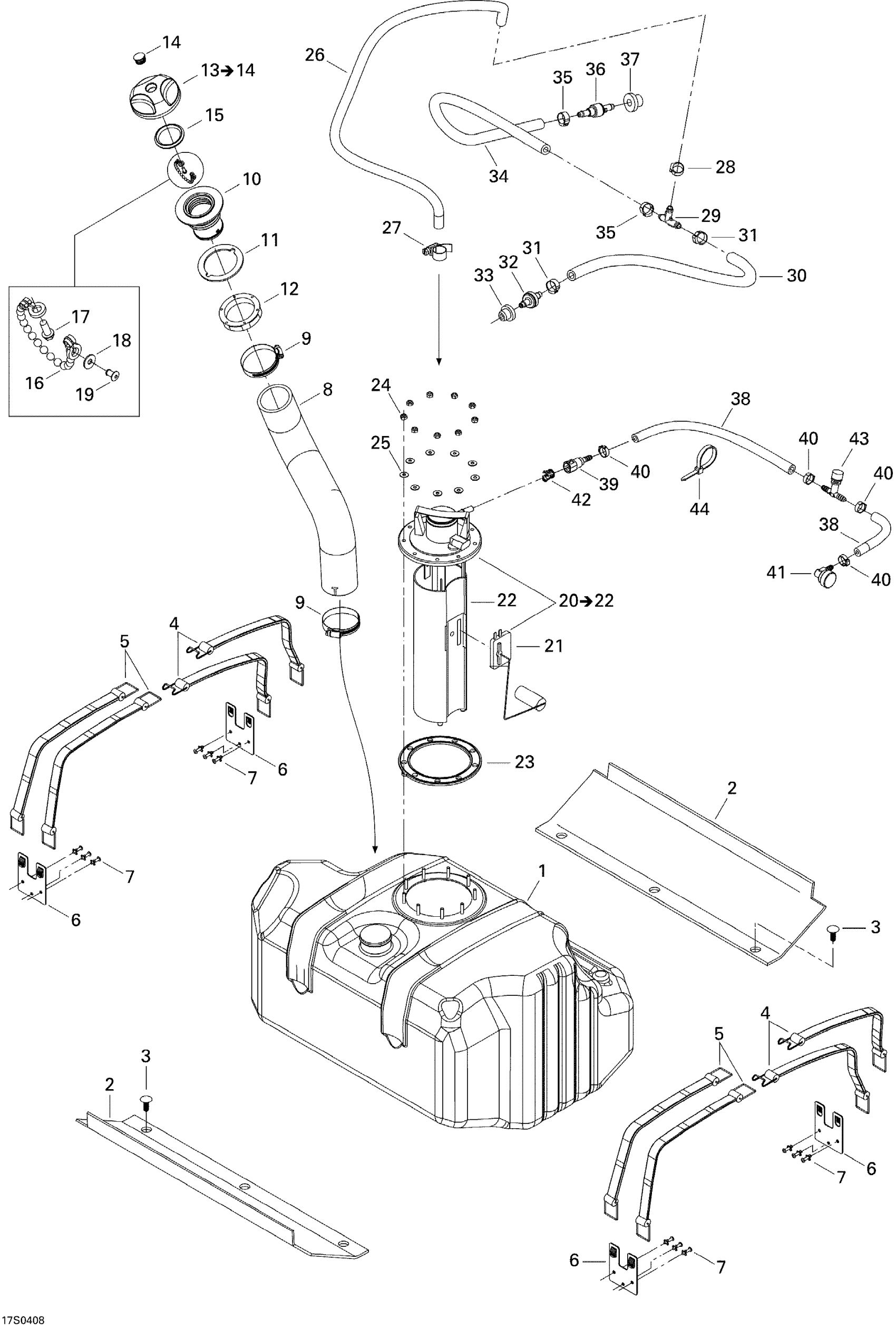

Sea-doo RXP, 2004 Fuel System Diagram
#
1
Fuel Tank
275500480
Unavailable
2
RUBBER PAD - Call your local BRP dealership
293830094
Unavailable
3
Black, Dart
293730006
Unavailable
4
Fuel Tank Strap
293850093
Unavailable
5
Fuel Tank Strap
293850094
Unavailable
6
STRAP CLIP - Call your local BRP dealership
293850066
Unavailable
7
Avdel Rivet 3/16"
293150037
Unavailable
8
FUEL FILLER NECK HOSE - Call your local BRP dealership
275500785
Unavailable
9
Tridon Clamp
293650023
Unavailable
10
Filler Neck, Fuel
275500231
Unavailable
11
Gasket
293250029
Unavailable
12
Filler Neck Nut, Fuel
211100012
Unavailable
13
Fuel Tank Cap, Black | Includes 26 to 27
275500430
Unavailable
14
Black, Snap Cap
293000034
Unavailable
15
GASKET - Call your local BRP dealership This part replaces 293250075.
293250211
Unavailable
16
Fuel Cap Chain
275500974
Unavailable
17
Screw K40 X 10
241140060
Unavailable
18
Flat Washer M3, Stainless
234032600
Unavailable
19
Pop Rivet 1/8"
390407900
Unavailable
20
FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 47 to 49
270600056
Unavailable
21
SENSOR LEVER - Call your local BRP dealership
270600051
Unavailable
22
Not Available As Spare Part - Friction Washer
Unavailable
23
Gasket
293250088
Unavailable
24
Elastic Stop Nut 5 mm
232551200
Unavailable
25
Flat Washer 5 mm, Stainless
234052400
Unavailable
26
Was 275500549 Hose 1/4"
219704357
Unavailable
27
Tridon Gear Clamp
293650170
Unavailable
28
Oetiker Gear Clamp
293650025
Unavailable
29
Y-Fitting
293710059
Unavailable
30
Was 275500549 Hose 1/4"
219704357
Unavailable
31
Oetiker Gear Clamp
293650025
Unavailable
32
Check Valve
275500398
Unavailable
33
Grommet
293720029
Unavailable
34
Was 275500549 Hose 1/4"
219704357
Unavailable
35
Oetiker Gear Clamp
293650025
Unavailable
36
Check Valve
275500505
Unavailable
37
Grommet
293720029
Unavailable
38
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
39
CONNECTOR BOX - Call your local BRP dealership
275500428
Unavailable
40
Oetiker Clamp
293650011
Unavailable
41
Elbow Fitting 90°
293710105
Unavailable
42
STOPPER CONNECTOR - Call your local BRP dealership
275500429
Unavailable
43
Bleed Valve
293710104
Unavailable
44
Tie-Rap 180 mm
414115200
Unavailable
