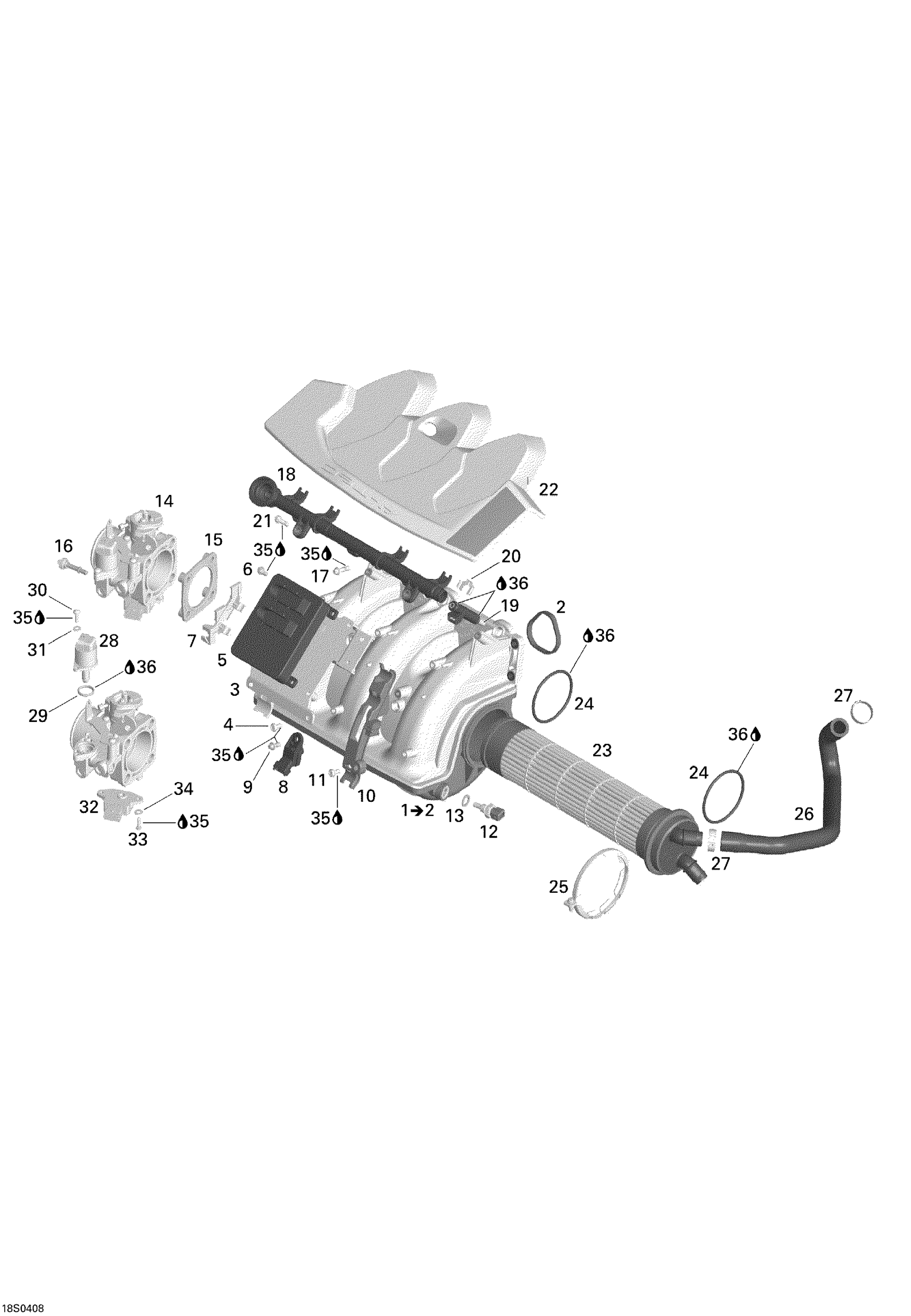

Sea-doo RXP, 2004 Air Intake Manifold Diagram
#
1
Air Intake Manifold | Includes 1 to 2
420867955
Unavailable
2
Gasket | Included in gasket kit
420950740
Unavailable
3
BASE PLATE - Call your local BRP dealership
420851521
Unavailable
4
Torx Flange Screw M6 X 16
420641048
Unavailable
5
Electronic Box
420664947
Unavailable
6
Torx Flange Screw M6 X 16
420641588
Unavailable
7
CONNECTOR BRACKET - Call your local BRP dealership
420660402
Unavailable
8
Pressure Sensor
420274058
Unavailable
9
Torx Flange Screw M6 X 16
420641048
Unavailable
10
WIRING SUPPORT - Call your local BRP dealership
420660410
Unavailable
11
Torx Flange Screw M6 X 16
420641588
Unavailable
12
Temperature Sensor This part replaces 420222423.
420222421
Unavailable
13
Aluminum Sealing Ring
420250016
Unavailable
14
Throttle Body
420892450
Unavailable
15
Rubber Gasket
420950792
Unavailable
16
Allen Screw M6 x 30,5
420440561
Unavailable
17
Torx Flange Screw M6 X 25
420641238
Unavailable
18
FUEL RAIL ASS'Y - Call your local BRP dealership
420874391
Unavailable
19
Fuel Injector | Includes 19 to 20
420874520
Unavailable
20
Injector Clip
420853030
Unavailable
21
Torx Flange Screw M6 X 25
420641238
Unavailable
22
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
23
Intercooler
420889650
Unavailable
24
O-Ring
420631900
Unavailable
25
Gear Clamp
420853253
Unavailable
26
FORMED HOSE - Call your local BRP dealership
420822173
Unavailable
27
Gear Clamp
420851673
Unavailable
28
Idle Bypass Valve
420963051
Unavailable
29
O-Ring
420631780
Unavailable
30
Binding Head Screw M5 X 16
420440911
Unavailable
31
Snap Ring
420845710
Unavailable
32
Position Sensor
420866120
Unavailable
33
Phillips Screw M4 X 16
208641660
Unavailable
34
Flat Washer 4 mm, Stainless
234042600
Unavailable
35
Loctite 243, 10 ml
293800060
Unavailable
36
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
