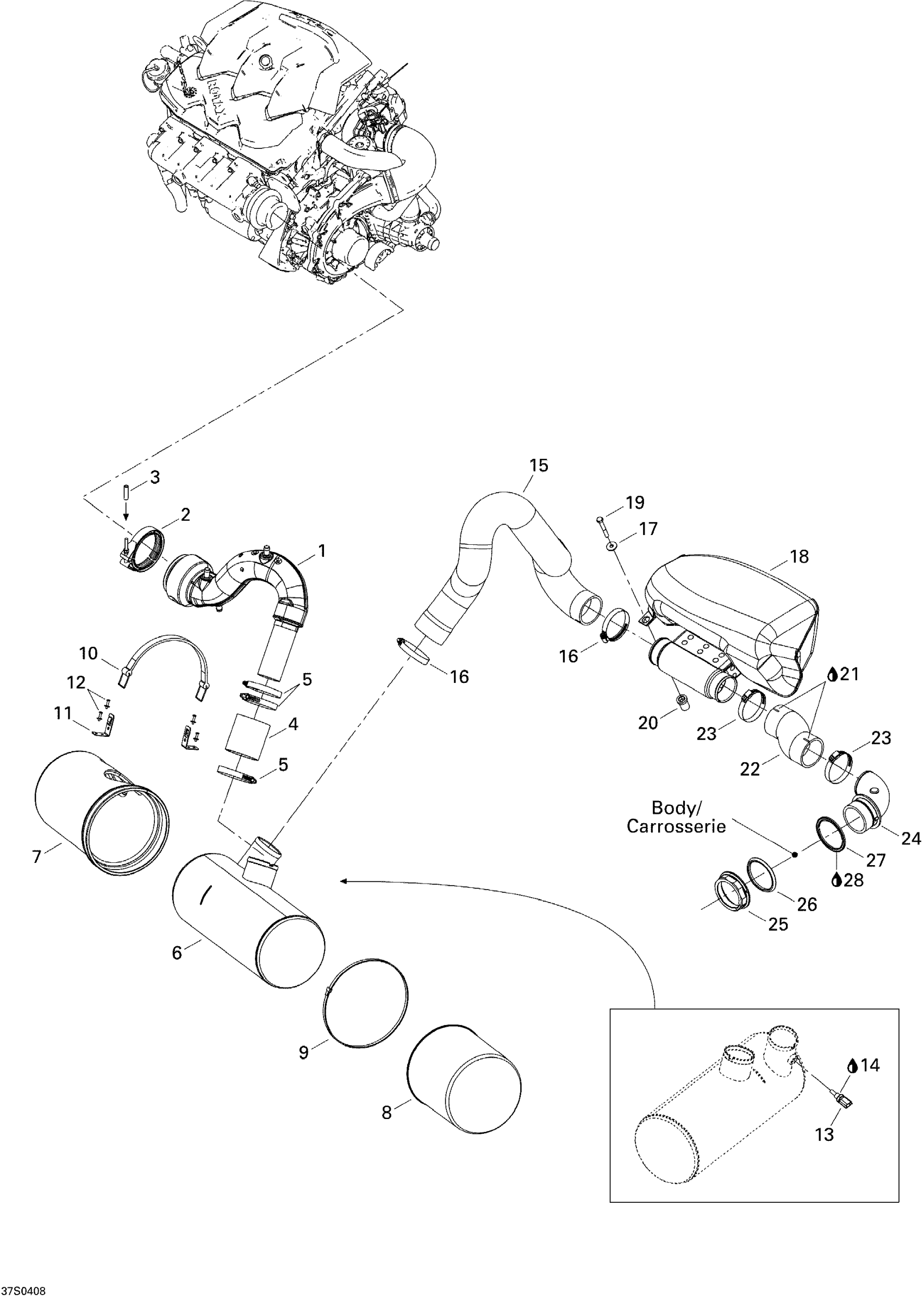

Sea-doo RXP, 2004 Exhaust Diagram

#

Description
Price

1

EXHAUST PIPE - Call your local BRP dealership

274001049

Unavailable

2

Exhaust Clamp This part replaces 274000959.

274001472

$45.47

3

Polyurethane Hose 10000Mm Long

219704410

$46.12

4

Exhaust Hose

274001302

$28.57

5

Tridon Clamp

293650179

$8.81

6

MUFFLER_EXHAUST - Call your local BRP dealership

274001095

Unavailable

7

Front Muffler Cover

274001008

Unavailable

8

REAR MUFFLER COVER - Call your local BRP dealership

274000984

Unavailable

9

WRAP_TIE 828 X 9 - Call your local BRP dealership

293750020

Unavailable

10

Fuel Tank Strap

293850036

$13.62

11

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

12

Avdel Rivet 3/16"

293150037

$0.47

13

Temperature Sensor

278002895

$31.82

14

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

15

FRONT EXHAUST HOSE - Call your local BRP dealership

274000987

Unavailable

16

Tridon Clamp

293650179

$8.81

17

Flat Washer 8 mm, Stainless

234082600

$1.98

18

RH Resonator

274001045

$176.12

19

Hex. Screw M8 X 60, Scotch Grip

250000187

$3.61

20

BUSHING - Call your local BRP dealership

278001939

Unavailable

21

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77

22

Rear Exhaust Hose This part replaces 274001427.

274001710

$38.32

23

Tridon Clamp

293650179

$8.81

24

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

Unavailable

25

Nut 72 mm

274000224

$12.17

26

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

27

GASKET - Call your local BRP dealership

293250041

Unavailable

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

Sealant, Loctite, 80 ml | DS 650

293800090

$20.77
