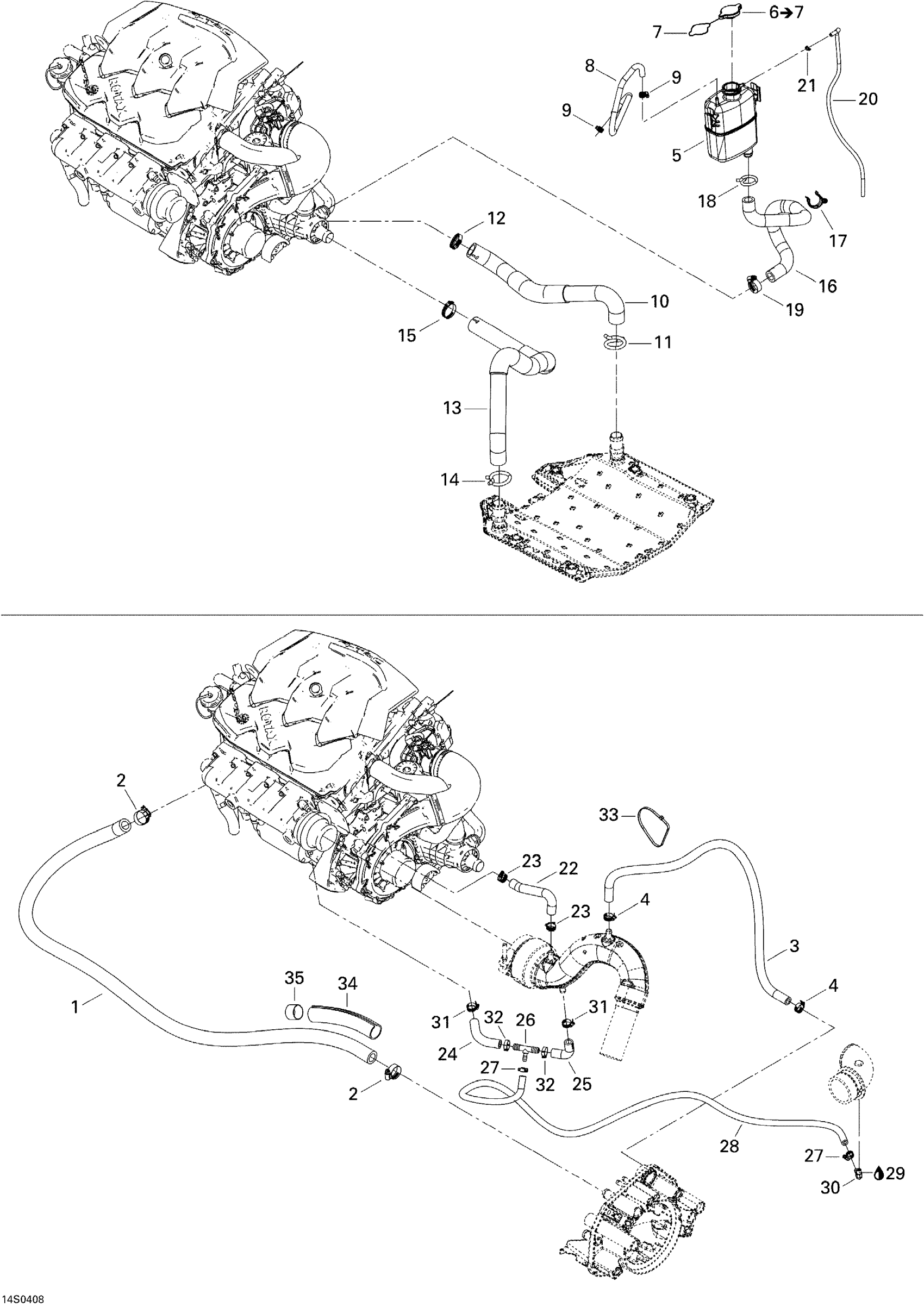

Sea-doo RXP, 2004 Cooling System Diagram
#
1
Hose 19.0Mm. 2000Mm Long
219704361
Unavailable
2
Tridon Gear Clamp
293650051
Unavailable
3
Was 276000001 Hose 12.5 mm
219704394
Unavailable
4
Tridon Gear Clamp
293650172
Unavailable
5
Coolant Tank
276000086
Unavailable
6
Pressure Cap | Includes 720 to 720a
276000100
Unavailable
7
Latch - Call your local BRP dealership | Not Shown
276000127
Unavailable
8
Molded Hose
276000123
Unavailable
9
Tridon Gear Clamp
293650170
Unavailable
10
RH RADIATOR HOSE - Call your local BRP dealership
276000247
Unavailable
11
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
12
Tridon Gear Clamp
293650045
Unavailable
13
Radiator Hose This part replaces 276000249.
276000492
Unavailable
14
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
15
Tridon Gear Clamp
293650045
Unavailable
16
FORMED RETURN HOSE - Call your local BRP dealership
276000122
Unavailable
17
Retainer
275500526
Unavailable
18
Spring Clamp
293650115
Unavailable
19
Tridon Gear Clamp
293650019
Unavailable
20
Polyurethane Hose 10000Mm Long
219704410
Unavailable
21
Tie Wrap 94 mm | 4X4
293750001
Unavailable
22
UPPER FORMED HOSE - Call your local BRP dealership
276000103
Unavailable
23
Tridon Gear Clamp
293650172
Unavailable
24
Formed Hose
276000128
Unavailable
25
Formed Hose
276000129
Unavailable
26
T-Fitting
293710116
Unavailable
27
Tridon Gear Clamp
293650171
Unavailable
28
Hose 8 mm
509000093
Unavailable
29
Was 293800013 Loctite 56765
219704454
Unavailable
30
ELBOW FITTING 90 - Call your local BRP dealership
293700024
Unavailable
31
Tridon Gear Clamp
293650172
Unavailable
32
Oetiker Clamp
293650012
Unavailable
33
Tie Wrap 368 mm
293750008
Unavailable
34
Tubing 25 MM 1000MM Long
219704402
Unavailable
35
SHRINK TUBING - Call your local BRP dealership
276000125
Unavailable
