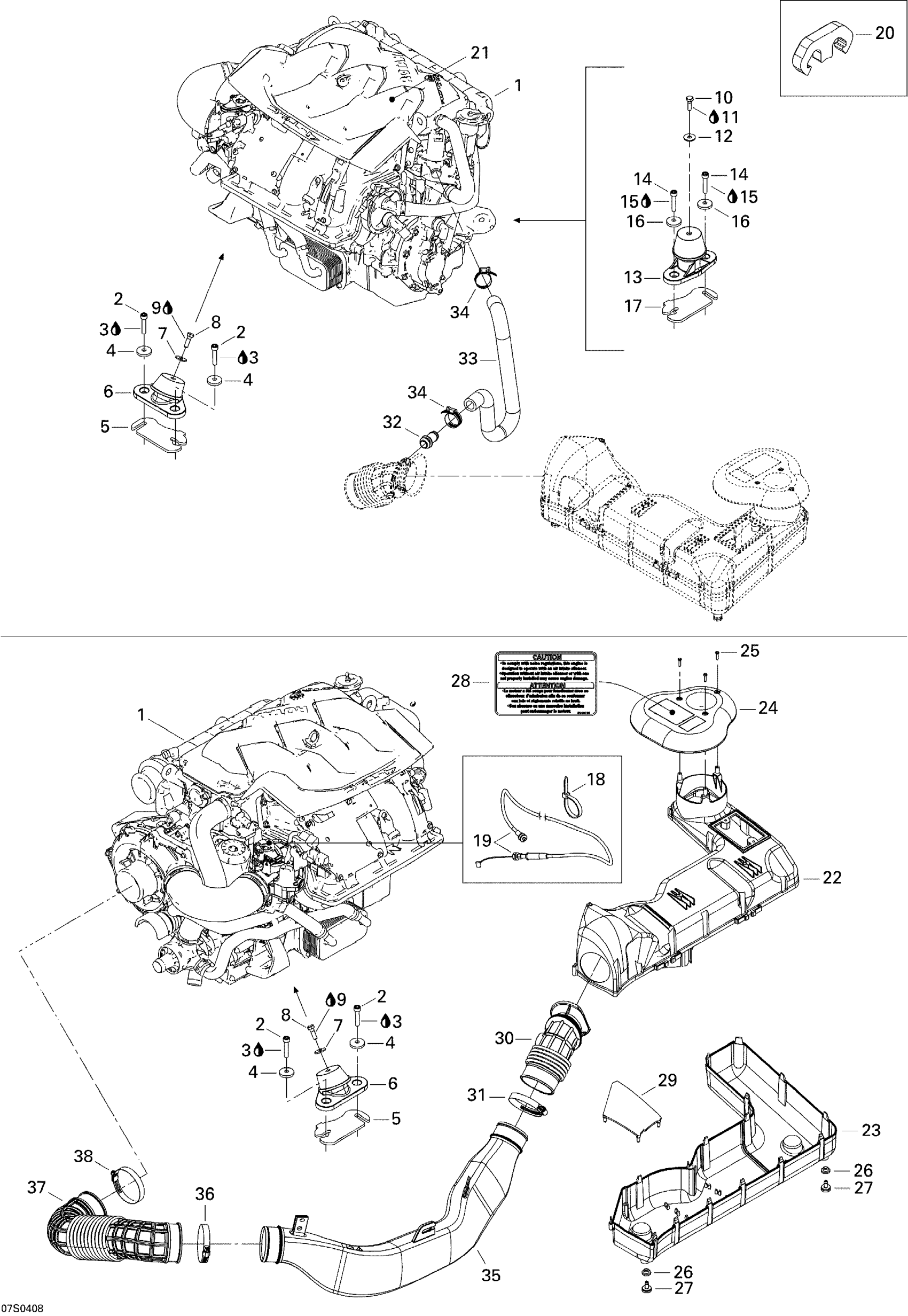

Sea-doo RXP, 2004 Engine Support And Air Intake Diagram

#

Description
Price

1

Rotax Engine 4 Strokes 1503

270000570

Unavailable

2

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Cone Washer

250200018

$5.61

5

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

5

Shim 1.3 mm

270000762

$12.99

6

Engine Support Ass'y

270001081

$109.99

7

Flat Washer 8 mm, Stainless

234082600

$2.43

8

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

11

Loctite 243, 10 ml

293800060

$21.49

12

Flat Washer 8 mm, Stainless

234082600

$2.43

13

Engine Support Ass'y

270001096

$97.99

14

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

15

Loctite 243, 10 ml

293800060

$21.49

16

Cone Washer

250200018

$5.61

17

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

17

Shim 1.3 mm

270000762

$12.99

18

Tie-Rap 180 mm

414115200

$0.11

19

THROTTLE CABLE - Call your local BRP dealership

277001070

Unavailable

20

TAB LOCK - Call your local BRP dealership

277000279

Unavailable

21

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

22

Upper Air Silencer - Call Your Local BRP Dealership

273000222

Unavailable

23

AIR SILENCER LOWER - Call your local BRP dealership

273000190

Unavailable

24

AIR SILENCER COVER - Call your local BRP dealership

273000266

Unavailable

25

Hex. Flange Screw K40 X 16

241141660

$1.48

26

GROMMET - Call your local BRP dealership

293720064

Unavailable

27

CHECK VALVE - Call your local BRP dealership

275500454

Unavailable

28

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

29

DEFLECTOR - Call your local BRP dealership

273000206

Unavailable

30

INTAKE HOSE - Call your local BRP dealership

273000186

Unavailable

31

Tridon Clamp

293650064

$8.29

32

Breather Valve

273000234

$14.49

33

Hose

275500604

Unavailable

34

Tridon Gear Clamp

293650051

$4.19

35

Intake Hose

273000185

Unavailable

36

Tridon Clamp

293650179

$11.49

37

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

38

Tridon Clamp

293650179

$11.49

39

Not Available As Spare Part - Friction Washer

Unavailable
