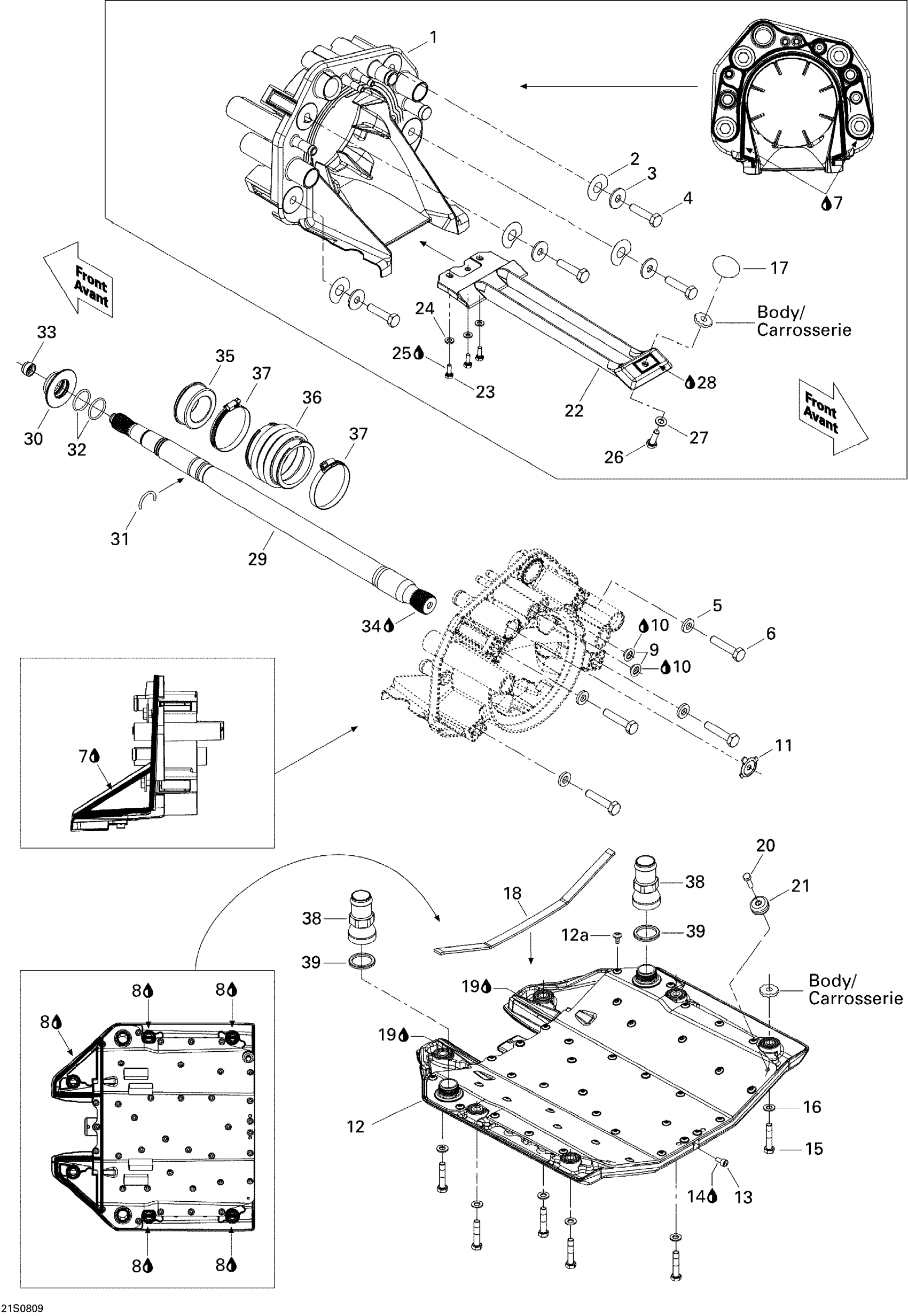

Sea-doo RXP 155, 2008 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

271001565

Unavailable

2

Shim 0.3 mm

272000053

$8.02

3

Flat Washer 10 mm, Stainless

234002600

$1.85

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer 10 mm, Stainless

234002600

$1.85

6

HEX. SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

250000292

Unavailable

7

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

8

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

9

Watertight Seal

293250084

$5.81

10

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

11

Reducer This part replaces 291001887.

291004649

$12.57

12

Riding Plate Ass'y | Includes 10 to 12

271001649

$220.32

12a

Torx Button Head Screw M6 X 14

250000064

$7.06

13

Socket Drain Plug M6 X 12

250500005

$11.74

14

Was 293800013 Loctite 56765

219704454

$63.40

15

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.05

16

Stainless, Flat Washer 8 mm

234081600

$0.46

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Gasket, Neoprene 2000Mm Long

219704476

$12.64

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

21

Anode Zinc

271001813

$13.62

22

Pump Grate

271001476

Unavailable

23

Hex. Screw M6 X 16

207161660

$1.22

24

Stainless Flat Washer M6

234061600

$0.25

25

Loctite 271, 10 ml

293800005

$20.77

26

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.55

27

Stainless, Flat Washer 8 mm

234081600

$0.46

28

Silicone Sealant 51388, 300 ml

296000309

$35.72

29

DRIVE SHAFT - Call your local BRP dealership

271001564

Unavailable

30

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

31

C-Clip

271001575

$4.54

32

O-Ring

293300044

$0.86

33

Drive Shaft Plug

272000173

$7.02

34

Synthetic Grease, 400 G

293550010

Unavailable

35

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

36

Bellows

272000183

$22.72

37

Norma Clamp

293650077

$6.11

38

Straight Plastic Fitting

293710111

$6.88

39

O-Ring

293300121

$6.18
