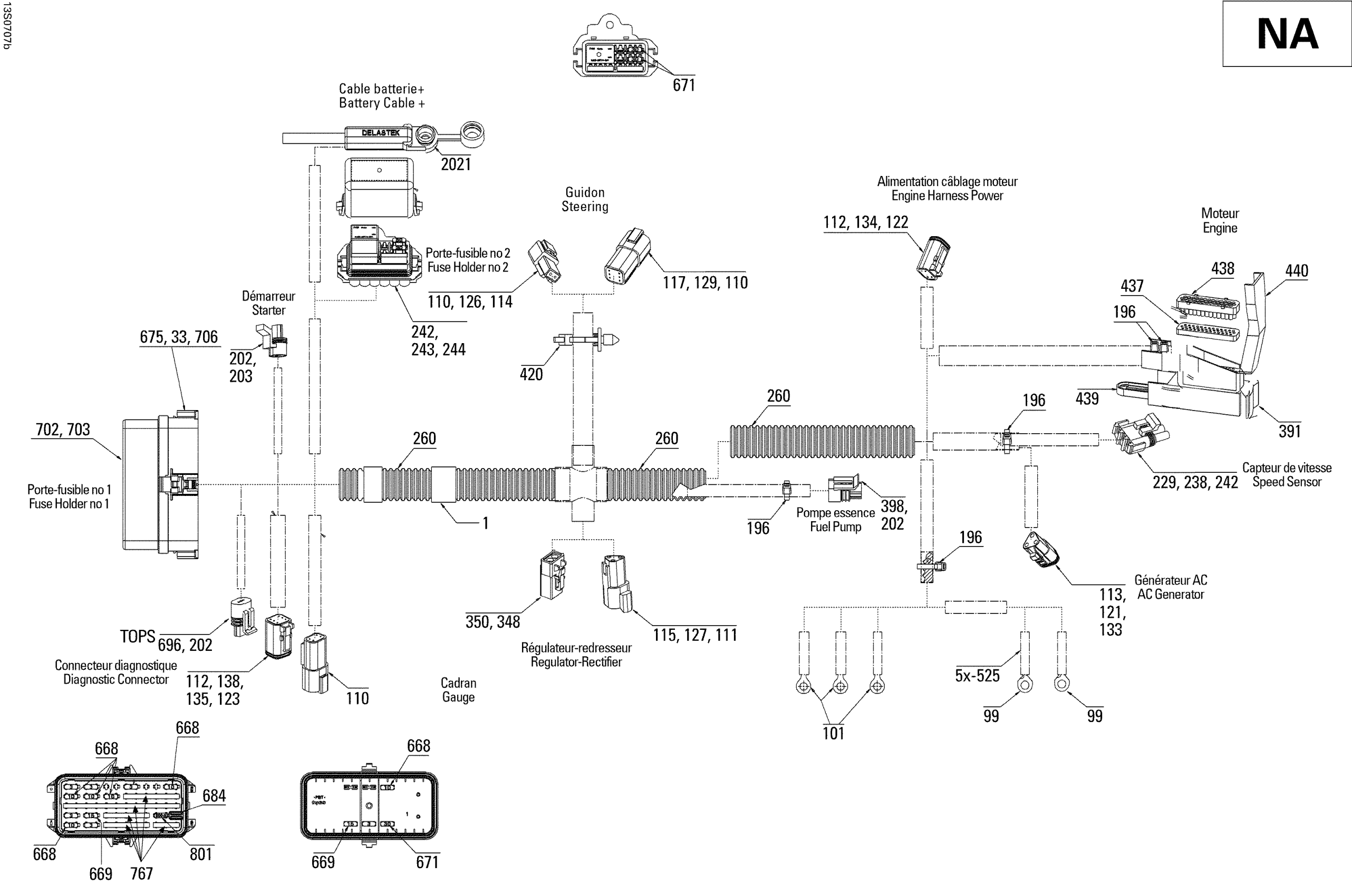

Sea-doo RXP 1503 NA, 2007 Electrical Harness NA 1 Diagram

#

Description
Price

1

Rear Harness Ass'y | Includes 1 to 2021

278002178

Unavailable

33

Wire Seal

278000999

$2.55

99

Open Barrel

278000992

$1.79

101

Open Barrel Terminal

278001392

$4.00

110

Male Terminal

278000631

$4.00

111

Male Terminal

515175823

$4.28

112

Female Terminal

278000632

$1.69

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

114

Male Housing, 2 Circuits

409206900

$8.72

115

Male Housing

278002378

$10.91

117

Male Terminal Housing, 6 Circuits

710001539

$15.57

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$27.58

122

Male Connector, 4 Circuits | CE

278000739

$14.92

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$19.37

126

Male Lock, 2 Circuits

409207500

$2.93

127

Male Lock, 3 Circuits

409207600

$2.93

129

Female Lock, 6 Circuits

278000735

$2.93

133

Female Lock

409207200

$3.48

134

Male Lock, 4 Circuits | CE

278000738

$2.82

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$2.55

196

Tie Wrap 142 mm

293750002

$0.88

202

Female Terminal

278001114

$2.55

203

Male Connector, 2 Circuits

278001113

$12.65

229

Female Terminal

278000223

$2.55

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

243

Wire Seal

710000048

$5.10

244

Wire Seal

278000216

$2.55

260

Was 515175319 Tubing 22 mm

219704423

$11.84

348

Female Terminal Housing, 2 Circuits

278001673

$22.36

350

Female Lock, 2 Circuits

278001671

$3.12

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

420

Tie-Rap 180 mm

414115200

$0.09

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$7.25

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

668

Little Fuse, 10 Amperes

710000744

$7.24

669

Little Fuse, 15 Ampere

710000745

$6.77

671

Little Fuse, 30 Amperes

710000747

$6.77

675

Fuse Box Base Ass´y

415129856

$41.57

684

Fuse Puller

710000781

$8.29

696

Connector, 3 Circuits

278002064

$24.60

702

Female Terminal

710000836

$5.30

703

Female Terminal

710000837

$4.32

706

Cap

710000840

$5.33

767

Bus Bar

278002165

$7.24

801

RESISTANCE 500 OHMS - Call your local BRP dealership

278002188

Unavailable

2021

Battery Cable

278002163

$51.32
