01- Cooling System (1503 NA)

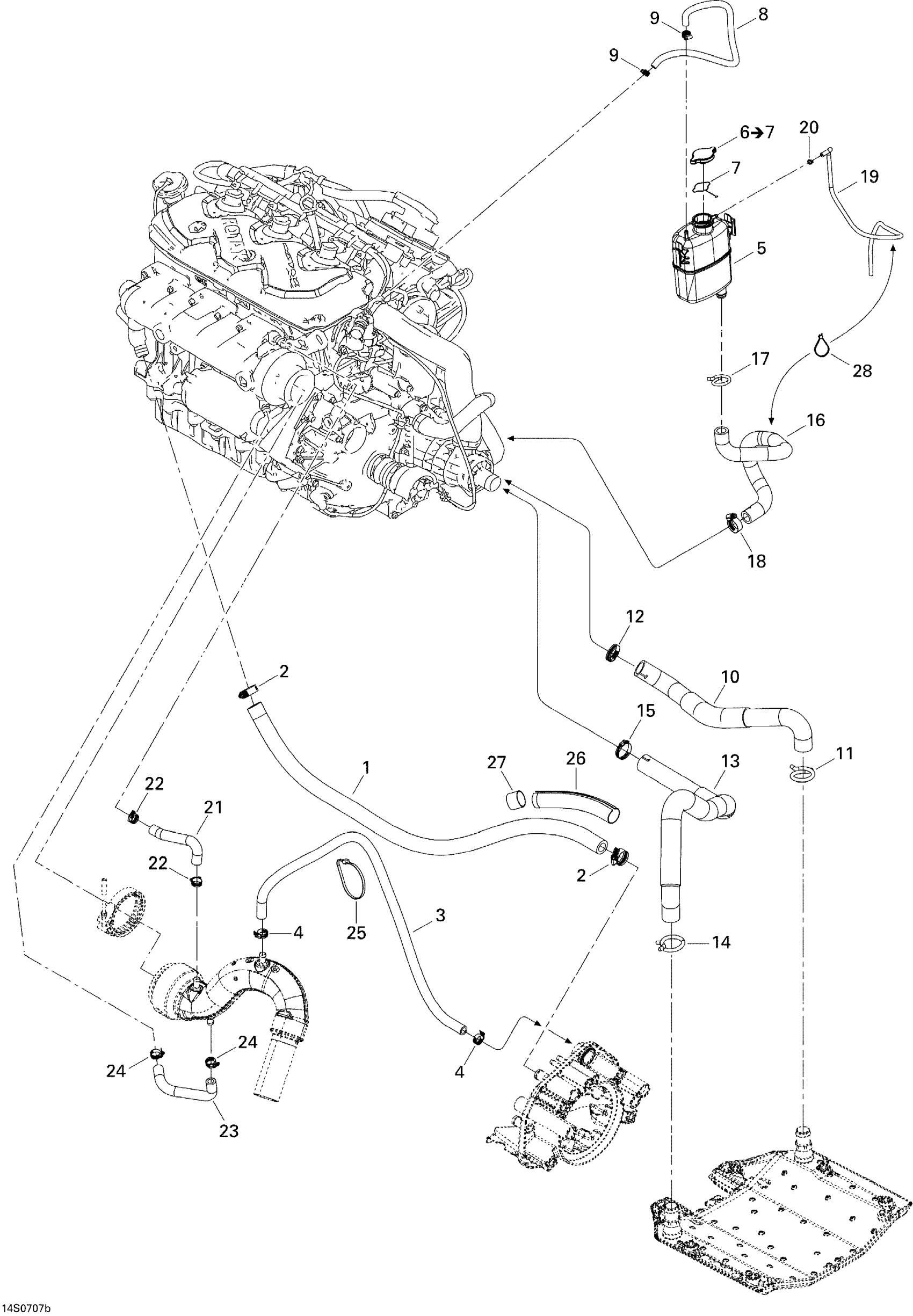

Sea-doo RXP 1503 NA, 2007 01- Cooling System (1503 NA) Diagram
#
Description
Price
1
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
2
Tridon Gear Clamp
293650051
$4.19
3
Was 276000001 Hose 12.5 mm
219704394
$51.99
4
Tridon Gear Clamp
293650172
$3.09
5
Coolant Tank
276000086
$109.99
6
Pressure Cap | Includes 720 to 720a
276000100
$25.99
7
Latch - Call your local BRP dealership | Not Shown
276000127
Unavailable
8
Was 275500549 Hose 1/4"
219704357
$194.99
9
Tridon Gear Clamp
293650170
$1.99
10
RH RADIATOR HOSE - Call your local BRP dealership
276000247
Unavailable
11
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
12
Tridon Gear Clamp
293650045
$5.69
13
Radiator Hose This part replaces 276000249.
276000492
$56.99
14
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
15
Tridon Gear Clamp
293650045
$5.69
16
FORMED RETURN HOSE - Call your local BRP dealership
276000122
Unavailable
17
Spring Clamp
293650115
$3.09
18
Tridon Gear Clamp
293650019
$5.82
19
Polyurethane Hose 10000Mm Long
219704410
$56.99
20
Tie Wrap 94 mm | 4X4
293750001
$1.03
21
Formed Hose
276000155
Unavailable
22
Tridon Gear Clamp
293650172
$3.09
23
FORMED HOSE - Call your local BRP dealership
276000156
Unavailable
24
Tridon Gear Clamp
293650172
$3.09
25
Tie Wrap 368 mm
293750008
$1.04
26
Tubing 25 MM 1000MM Long
219704402
$15.99
27
SHRINK TUBING - Call your local BRP dealership
276000125
Unavailable
28
Tie-Rap 180 mm
414115200
$0.11
