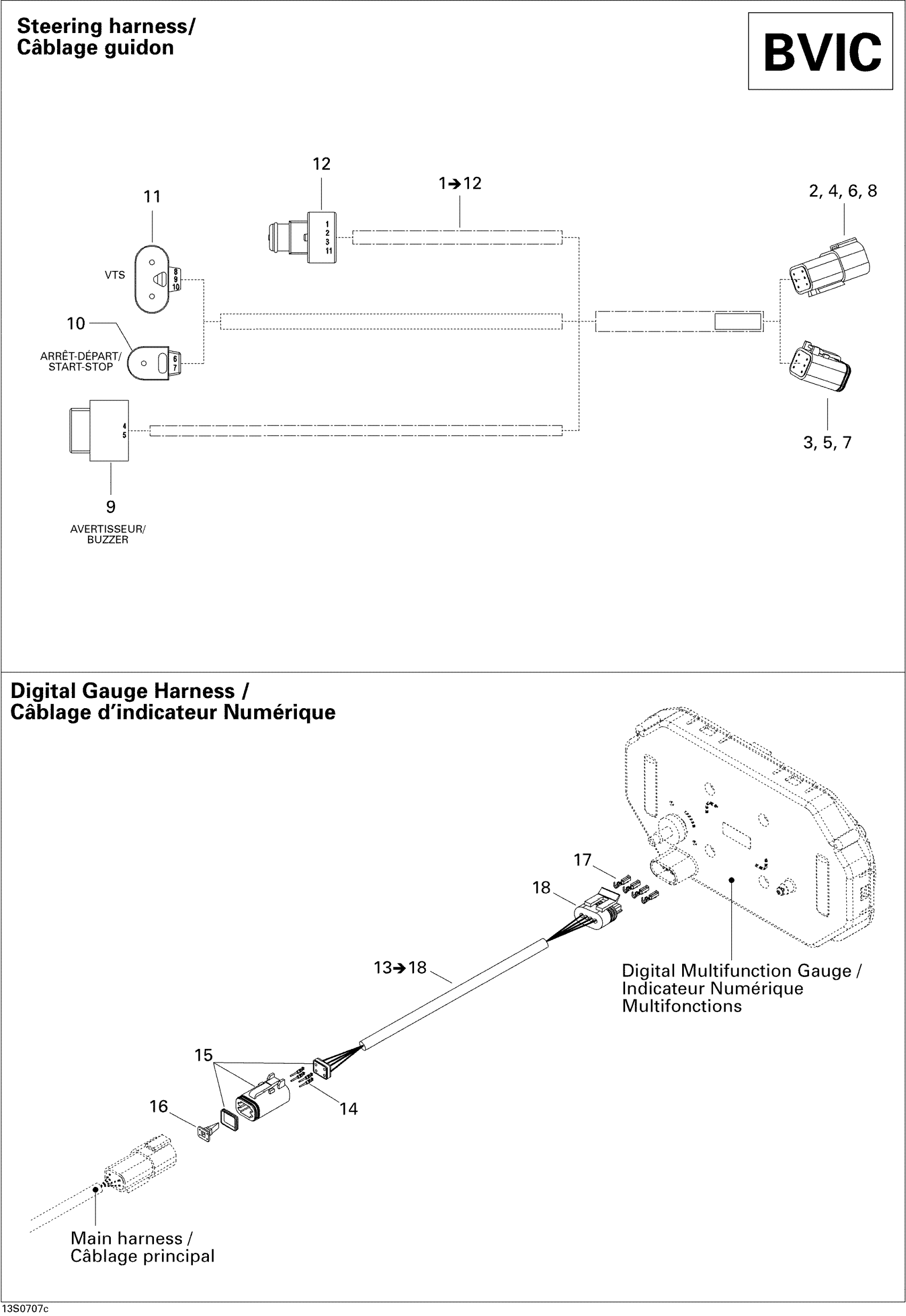

Sea-doo RXP 1503 BVIC, 2007 Electrical Harness BVIC 2 Diagram

#

Description
Price

1

Steering Harness | Includes 1 to 12

278002169

Unavailable

2

Male Terminal

278000631

$4.39

3

Female Terminal

278000632

$2.09

4

Male Terminal Housing, 6 Circuits

710001539

$19.99

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

6

Female Lock, 6 Circuits

278000735

$3.19

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

Sealing Cap

293000052

$3.19

9

BUZZER - Call your local BRP dealership

278001586

Unavailable

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

VTS SWITCH - Call your local BRP dealership | SERV

278002156

Unavailable

12

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

$114.99

13

Digital Multifunction Gauge Harness | Includes 16 to 21

278002111

$49.99

14

Female Terminal

278000632

$2.09

15

Male Connector, 4 Circuits | CE

278000739

$19.49

16

Male Lock, 4 Circuits | CE

278000738

$3.09

17

Female Terminal

278001114

$3.19

18

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable
