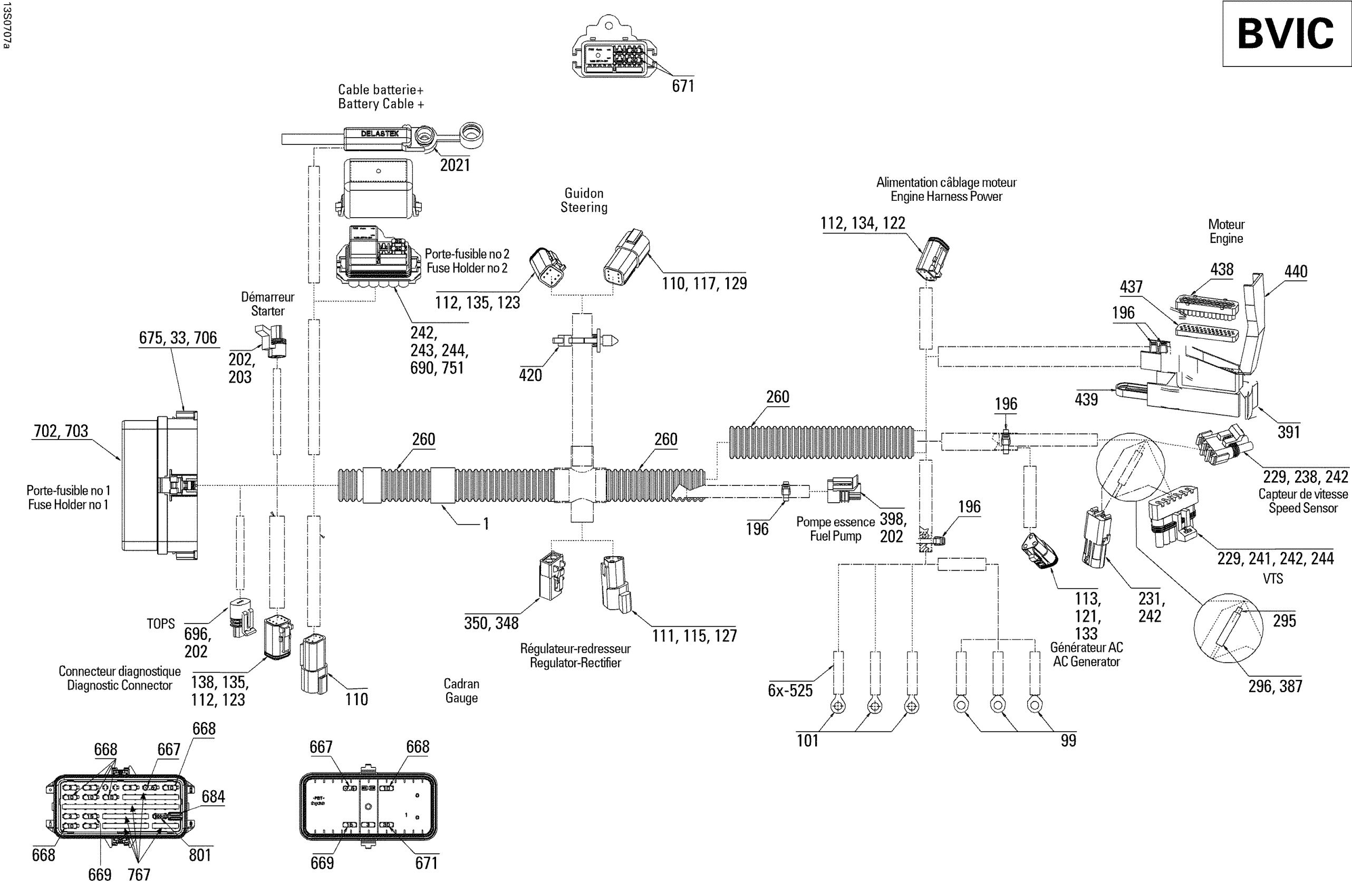

Sea-doo RXP 1503 BVIC, 2007 Electrical Harness BVIC 1 Diagram

#

Description
Price

1

REAR HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 2021

278002159

Unavailable

33

Wire Seal

278000999

$3.19

99

Open Barrel

278000992

$2.21

101

Open Barrel Terminal

278001392

$4.79

110

Male Terminal

278000631

$4.39

111

Male Terminal

515175823

$4.55

112

Female Terminal

278000632

$2.09

113

FEMALE TERMINAL - Call your local BRP dealership

278001661

Unavailable

115

Male Housing

278002378

$13.99

117

Male Terminal Housing, 6 Circuits

710001539

$19.99

121

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

$30.99

122

Male Connector, 4 Circuits | CE

278000739

$19.49

123

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

127

Male Lock, 3 Circuits

409207600

$3.19

129

Female Lock, 6 Circuits

278000735

$3.19

133

Female Lock

409207200

$4.39

134

Male Lock, 4 Circuits | CE

278000738

$3.09

135

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

138

Sealing Cap

293000052

$3.19

196

Tie Wrap 142 mm

293750002

$1.25

202

Female Terminal

278001114

$3.19

203

Male Connector, 2 Circuits

278001113

$16.86

229

Female Terminal

278000223

$3.19

231

Female Housing, 2 Circuits

278000217

$9.59

238

Male Housing, 3 Circuits

278000273

$9.59

241

MALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000221

Unavailable

242

Wire Seal

278000218

$4.39

243

Wire Seal

710000048

$7.69

244

Wire Seal

278000216

$3.19

260

Was 515175319 Tubing 22 mm

219704423

$14.99

295

Insulated Sheath

278001008

$3.28

296

Insulated Sheath

278000770

$7.90

348

Female Terminal Housing, 2 Circuits

278001673

$23.49

350

Female Lock, 2 Circuits

278001671

$3.58

387

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

391

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

398

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

420

Tie-Rap 180 mm

414115200

$0.11

437

SEAL - Call your local BRP dealership

515175886

Unavailable

438

Latch

515175883

$9.12

439

LOCK - Call your local BRP dealership

515175884

Unavailable

440

COVER - Call your local BRP dealership

515175885

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

667

Little Fuse, 7.5 Amperes

710000743

$8.49

668

Little Fuse, 10 Amperes

710000744

$8.79

669

Little Fuse, 15 Ampere

710000745

$8.49

671

Little Fuse, 30 Amperes

710000747

$8.49

675

Fuse Box Base Ass´y

415129856

$50.99

684

Fuse Puller

710000781

$8.09

690

Female Terminal

710000890

$4.55

696

Connector, 3 Circuits

278002064

$25.99

702

Female Terminal

710000836

$5.61

703

Female Terminal

710000837

$5.39

706

Cap

710000840

$5.89

751

Female Terminal

710000918

$7.69

767

Bus Bar

278002165

$8.79

801

RESISTANCE 500 OHMS - Call your local BRP dealership

278002188

Unavailable

2021

Battery Cable

278002163

$63.49
