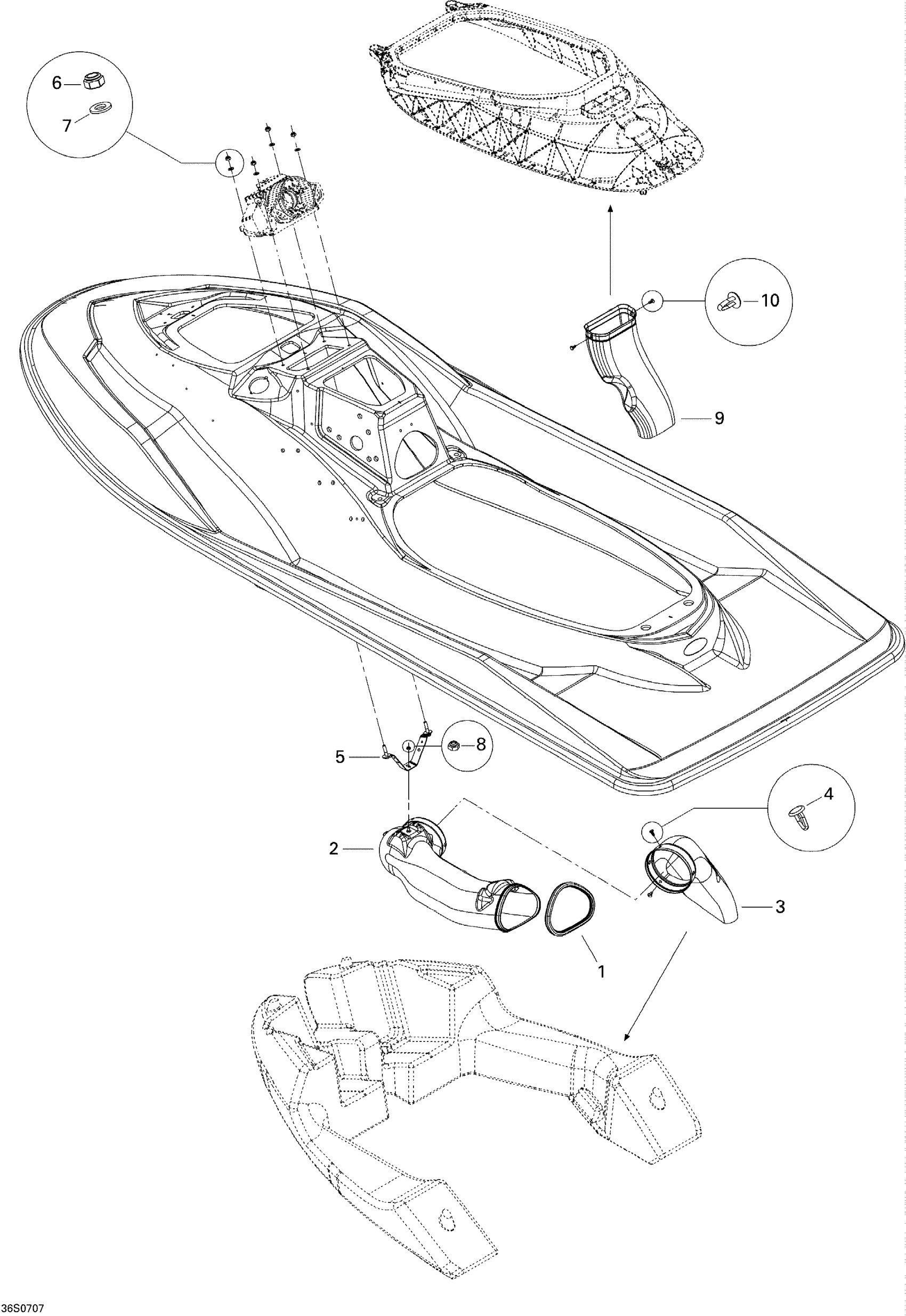

Sea-doo RXP 1503 BVIC, 2007 Ventilation Diagram

#

Description

Price

1

FRONT COLLECTOR JOINT - Call your local BRP dealership

291001933

Unavailable

2

FRONT COLLECTOR - Call your local BRP dealership

291001934

Unavailable

3

Vent Hose

291001935

Unavailable

4

Dart, Fastex

293730024

$1.05

5

Collector Support

291002546

Unavailable

6

Hex. Elastic Nut M8 Brass

232581200

$1.29

7

Stainless, Flat Washer 8 mm

234081600

$0.46

8

Elastic Stop Nut M6, Brass

232561200

$3.51

9

VENTILATION DUCT - Call your local BRP dealership

291001936

Unavailable

10

Dart, Fastex

293730024

$1.05
