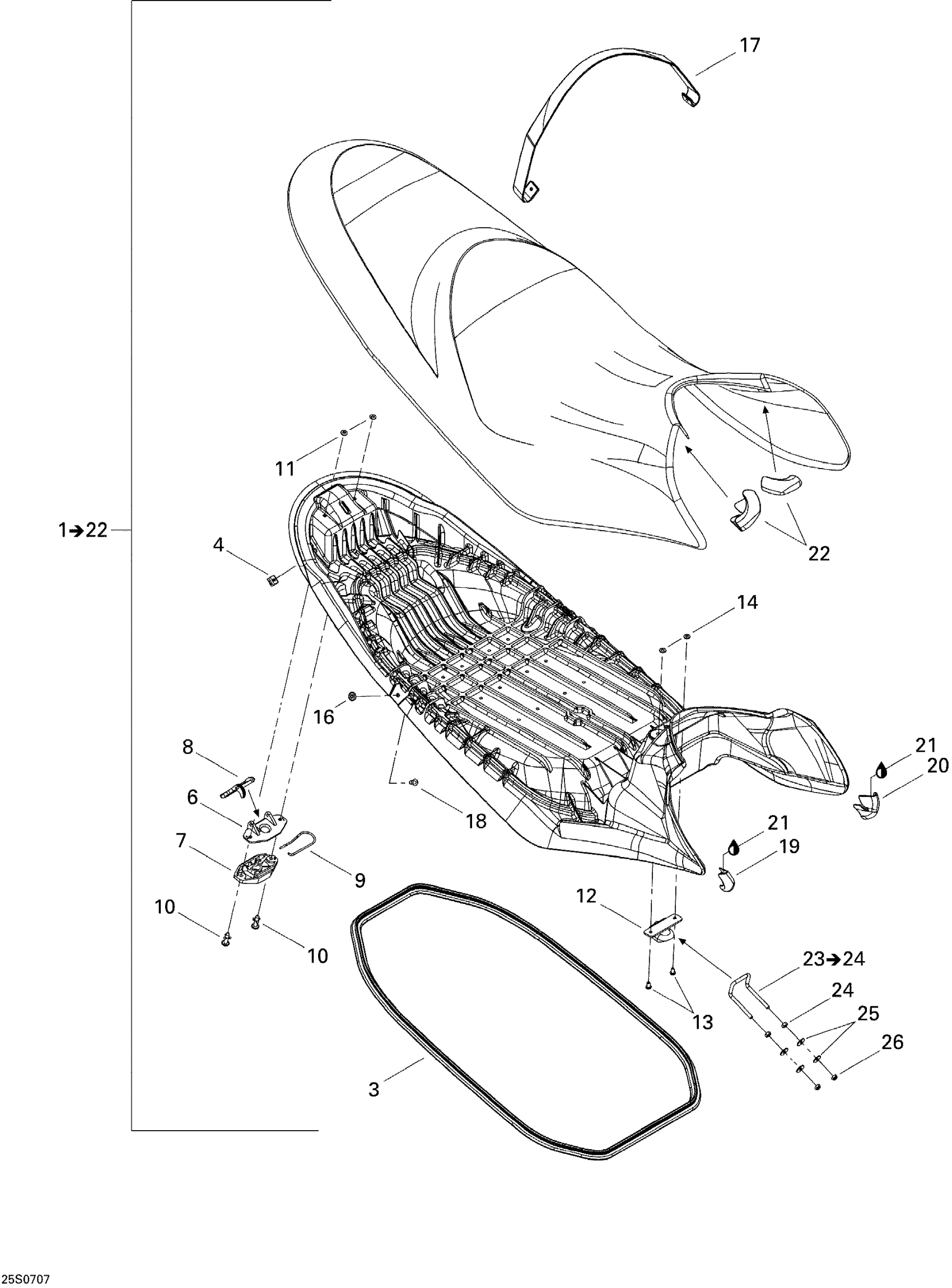

Sea-doo RXP 1503 BVIC, 2007 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 22, Deep Black

269001450

Unavailable

1

Seat Ass'y | Includes 1 to 16

269001454

Unavailable

3

Was 293200062 Seal

219704366

$61.72

4

QUARTER-TURN NUT - Call your local BRP dealership

250100032

Unavailable

6

Latch Ass'y

269700109

$20.12

7

Latch Ass'y

269700109

$20.12

8

Latch Ass'y

269700109

$20.12

9

Latch Spring

269700017

$7.27

10

Rivet 1/4"

293150151

$6.46

11

Stainless Flat Washer M6

234061600

$0.25

12

SEAT HOOK - Call your local BRP dealership

291002012

Unavailable

13

Rivet 1/4"

293150151

$6.46

14

Stainless Flat Washer M6

234061600

$0.25

16

Grommet

293720067

$9.19

17

Seat Strap | Deep Black

269001452

Unavailable

17

Seat Strap

269001456

Unavailable

18

RIVET_POP 1/4 X ,725 - Call your local BRP dealership

293150078

Unavailable

19

RH Seat Corner, Metallic Pewter | Deep Black

269001102

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

LH SEAT CORNER, METALLIC PEWTER - Call your local BRP dealership | Deep Black

269001103

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

22

SEAT CORNER - Call your local BRP dealership

269001088

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

U-CLAMP ROD - Call your local BRP dealership | Includes 14 to 15

291001937

Unavailable

24

Hex. Nut M6

232061600

$0.91

25

Flat Washer M6, Stainless

234062600

$0.64

26

Elastic Stop Nut M6, Brass

232561200

$3.51
