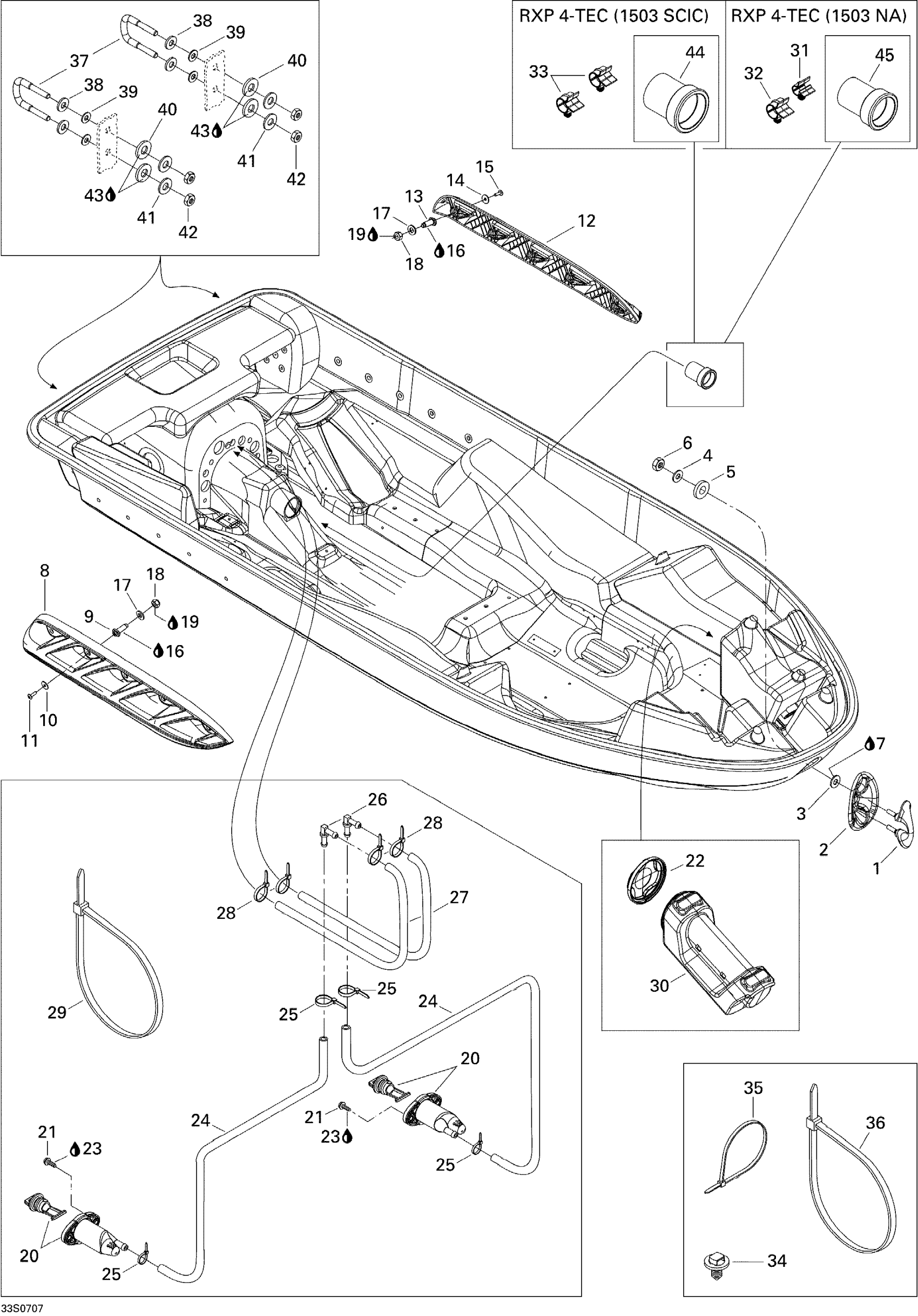

Sea-doo RXP 1503 BVIC, 2007 Hull 1503 BVIC Diagram

#

Description
Price

1

Eye-Bow (Black) This part replaces 292000708.

292000452

$42.99

2

Black Shell

292001837

$20.99

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer 8 mm, Stainless

250200175

$3.06

5

Rubber Washer

293830037

$2.68

6

Hex. Elastic Nut M8 Brass

232581200

$2.22

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

RH Sponson

292001878

$93.99

9

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

10

Flat Washer M6.6 X 22

250200022

$2.72

11

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

12

LH Sponson

292001877

$93.99

13

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

14

Flat Washer M6.6 X 22

250200022

$2.72

15

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

18

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Drain Plug

292001252

$36.99

21

Hex. Screw 10-14 X 7/8”

211000023

$3.59

22

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

23

Silicone Sealant 51388, 300 ml

296000309

$36.99

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

25

Tie Wrap 94 mm | 4X4

293750001

$1.03

26

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

27

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

28

Tie Wrap 94 mm | 4X4

293750001

$1.03

29

Tie Wrap 368 mm

293750008

$1.04

30

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

Not Available As Spare Parts

XXX

Unavailable

33

Cable Retainer

275500527

$2.68

34

Mount Dart

293730040

$1.04

35

Tie-Rap 180 mm

414115200

$0.11

36

Tie Wrap 368 mm

293750008

$1.04

37

U-Clamp

292000933

$59.49

38

Flat Washer M8.5 x 18

293050001

$3.07

39

Flat Washer 8 mm, Nylon

234081100

$1.39

40

Rubber Washer

293830037

$2.68

41

Flat Washer 8 mm, Stainless

250200175

$3.06

42

Hex. Elastic Nut M8 Brass

232581200

$2.22

43

Silicone Sealant 51388, 300 ml

296000309

$36.99

44

HULL INSERT, 50 MM - Call your local BRP dealership

292000974

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable
