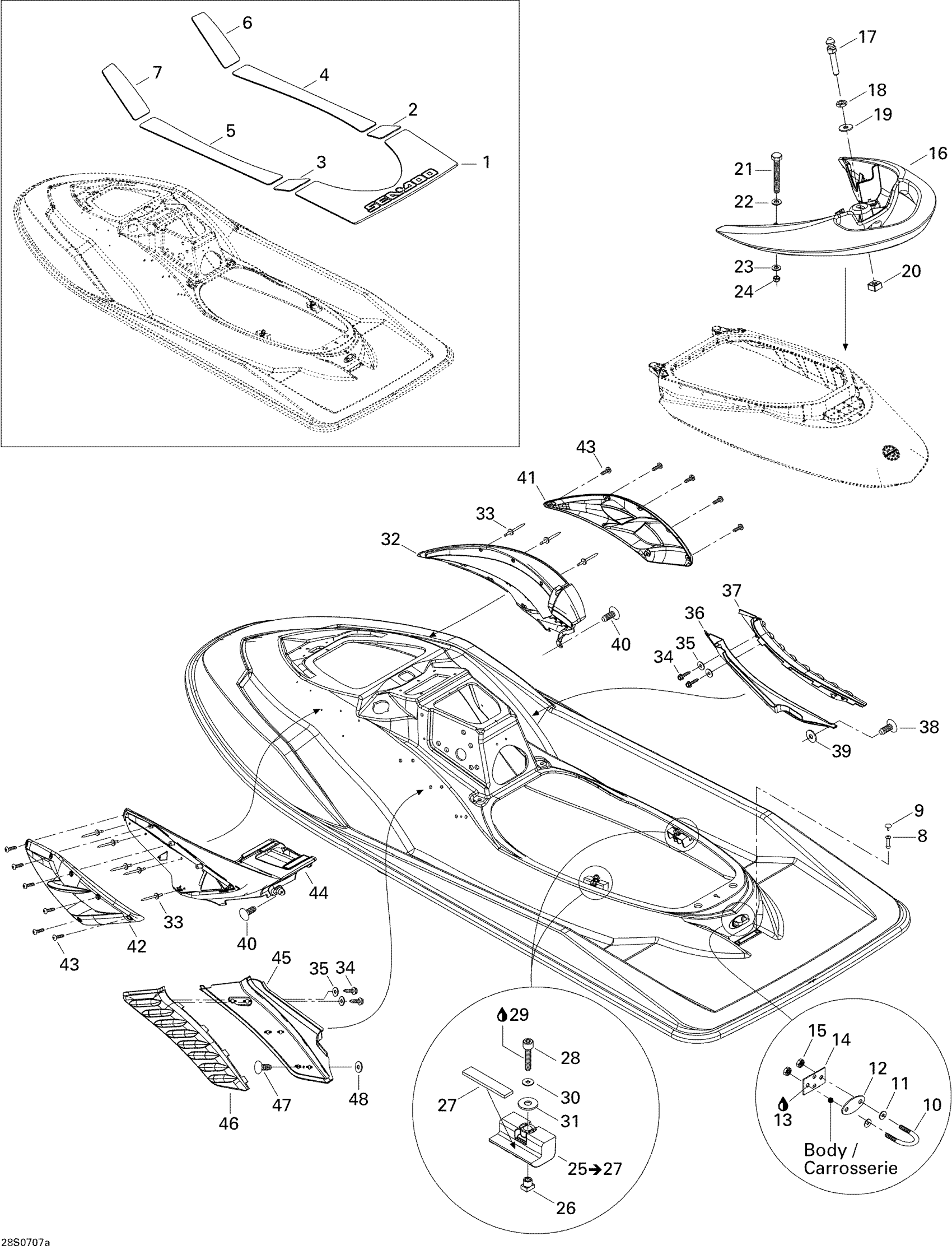

Sea-doo RXP 1503 BVIC, 2007 Body, Rear View Diagram

#

Description
Price

1

ANTI SLIP MAT_DECK - Call your local BRP dealership

291002333

Unavailable

2

RH Rear Carpet

291002388

Unavailable

3

LH Rear Carpet

291002389

Unavailable

4

RH Center Carpet

291002390

Unavailable

5

LH Center Carpet

291002391

Unavailable

6

RH Front Carpet

291002392

Unavailable

7

LH Front Carpet

291002393

Unavailable

8

Rivet 1/8"

293150016

$0.40

9

Black, Snap Cap

293000014

$1.09

10

U-CLAMP - Call your local BRP dealership

292000011

Unavailable

11

Flat Washer M8.5 x 18

293050001

$3.07

12

Black, Finition Plate

291001386

$10.99

13

Silicone Sealant 51388, 300 ml

296000309

$36.99

14

RETAINER PLATE - Call your local BRP dealership

291001387

Unavailable

15

Hex. Elastic Nut M8 Brass

232581200

$2.22

16

GRAB HANDLE - Call your local BRP dealership

269000812

Unavailable

17

LATCH STUD - Call your local BRP dealership

291000691

Unavailable

18

Hex. Jam Nut M10

232100600

$2.22

19

Flat Washer 10 mm, Stainless

234002600

$2.22

20

NUT HOUSING ASS'Y - Call your local BRP dealership | Includes 60 to 61

271000598

Unavailable

21

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085560

Unavailable

22

Stainless, Flat Washer 8 mm

234081600

$0.55

23

Flat Washer 8 mm, Stainless

234082600

$2.43

24

Hex. Elastic Nut M8 Brass

232581200

$2.22

25

Link Bridge Ass'y

291001931

$26.99

26

Square Nut M8

211100033

$17.99

27

Pad

291001932

$10.99

28

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083560

Unavailable

29

Loctite 243, 10 ml

293800060

$21.49

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

Rubber Washer

293830037

$2.68

32

RH MOULDING - Call your local BRP dealership | Black, Yellow

291002451

Unavailable

32

RH Moulding

291002452

Unavailable

33

Pop Rivet 3/16"

293150123

$4.29

34

Hex. Screw 10-14 X 7/8”

211000023

$3.59

35

Flat Washer, Stainless/Neoprene

211200055

$0.73

36

RH Moulding | Black, Yellow

291002455

Unavailable

36

RH MOULDING - Call your local BRP dealership

291002456

Unavailable

37

RH KNEE PAD - Call your local BRP dealership

269001296

Unavailable

38

Black, Dart

293730006

$0.99

39

Rubber Washer 5 mm

250200024

$2.19

40

Black, Dart

293730006

$0.99

41

RH GRILL - Call your local BRP dealership

273000231

Unavailable

42

LH GRILL - Call your local BRP dealership

273000232

Unavailable

43

Allen Plastite Screw #12

250000099

$2.19

44

LH MOULDING - Call your local BRP dealership | Black, Yellow

291002457

Unavailable

44

LH MOULDING - Call your local BRP dealership

291002458

Unavailable

45

LH Moulding | Black, Yellow

291002461

Unavailable

45

LH MOULDING - Call your local BRP dealership

291002462

Unavailable

46

LH KNEE PAD - Call your local BRP dealership

269001295

Unavailable

47

Black, Dart

293730006

$0.99

48

Rubber Washer 5 mm

250200024

$2.19
