- RXP 1503 BVIC, 2007
05- Trim, Electrical

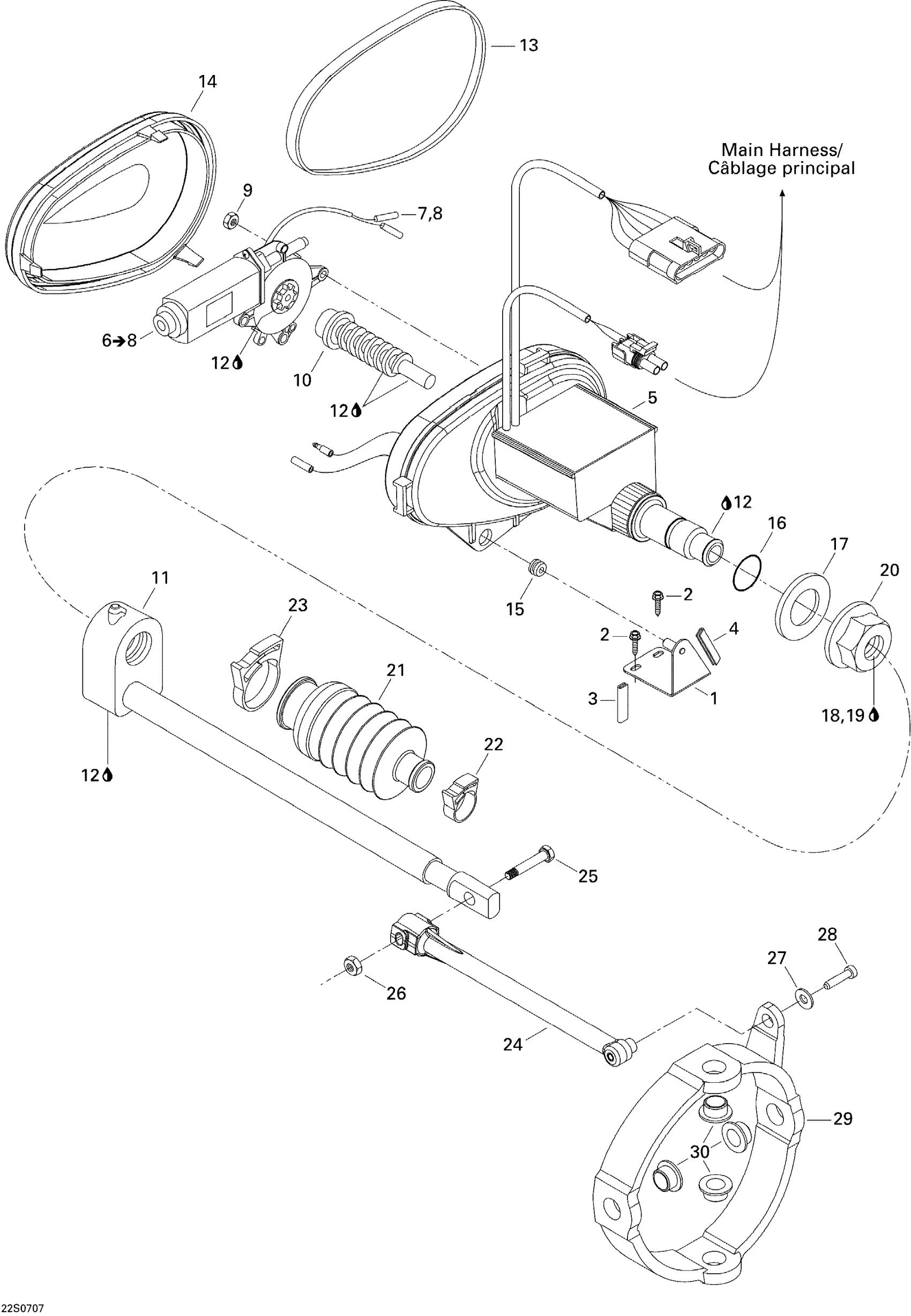

Sea-doo RXP 1503 BVIC, 2007 05- Trim, Electrical Diagram
#
Description
Price
1
V.T.S. SUPPORT ASSY - Call your local BRP dealership
292000250
Unavailable
2
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
243041660
Unavailable
3
Was 271000110 Protection Trim
219704353
$15.99
4
Was 271000110 Protection Trim
219704353
$15.99
5
V.T.S Housing
278001605
$419.99
6
Windshield Motor
278002579
$234.99
7
Insulation Sheath
278000231
$5.08
8
Male Terminal
278000230
$4.39
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Worm Screw
278000428
$14.30
11
Sliding Block Ass’y
278001698
$43.99
12
Synthetic Grease, 400 G
293550010
Unavailable
13
GASKET - Call your local BRP dealership
293200027
Unavailable
14
V.T.S. COVER - Call your local BRP dealership
278000595
Unavailable
15
GROMMET - Call your local BRP dealership
293720015
Unavailable
16
O-Ring
293300044
$1.05
17
SEAL WASHER - Call your local BRP dealership
293830027
Unavailable
18
Was 293800041 Loctite Primer 7649
219704458
$39.99
19
Loctite 243, 10 ml
293800060
$21.49
20
SPECIAL NUT M27 - Call your local BRP dealership
211100020
Unavailable
21
Protector Hose
271000459
$17.49
22
Clamp
293650082
$3.99
23
CLAMP - Call your local BRP dealership
293650083
Unavailable
24
V.T.S. ROD - Call your local BRP dealership
271001179
Unavailable
25
HEX. SCREW M6 X 35 - Call your local BRP dealership
250000173
Unavailable
26
Elastic Stop Nut M6, Brass
232561200
$4.23
27
Flat Washer 5 mm, Stainless
234052600
$0.77
28
PIVOT SCREW - Call your local BRP dealership
250000018
Unavailable
29
Trim Ring, Black
266000013
$119.99
30
Venturi Bushing
293900007
$5.45
