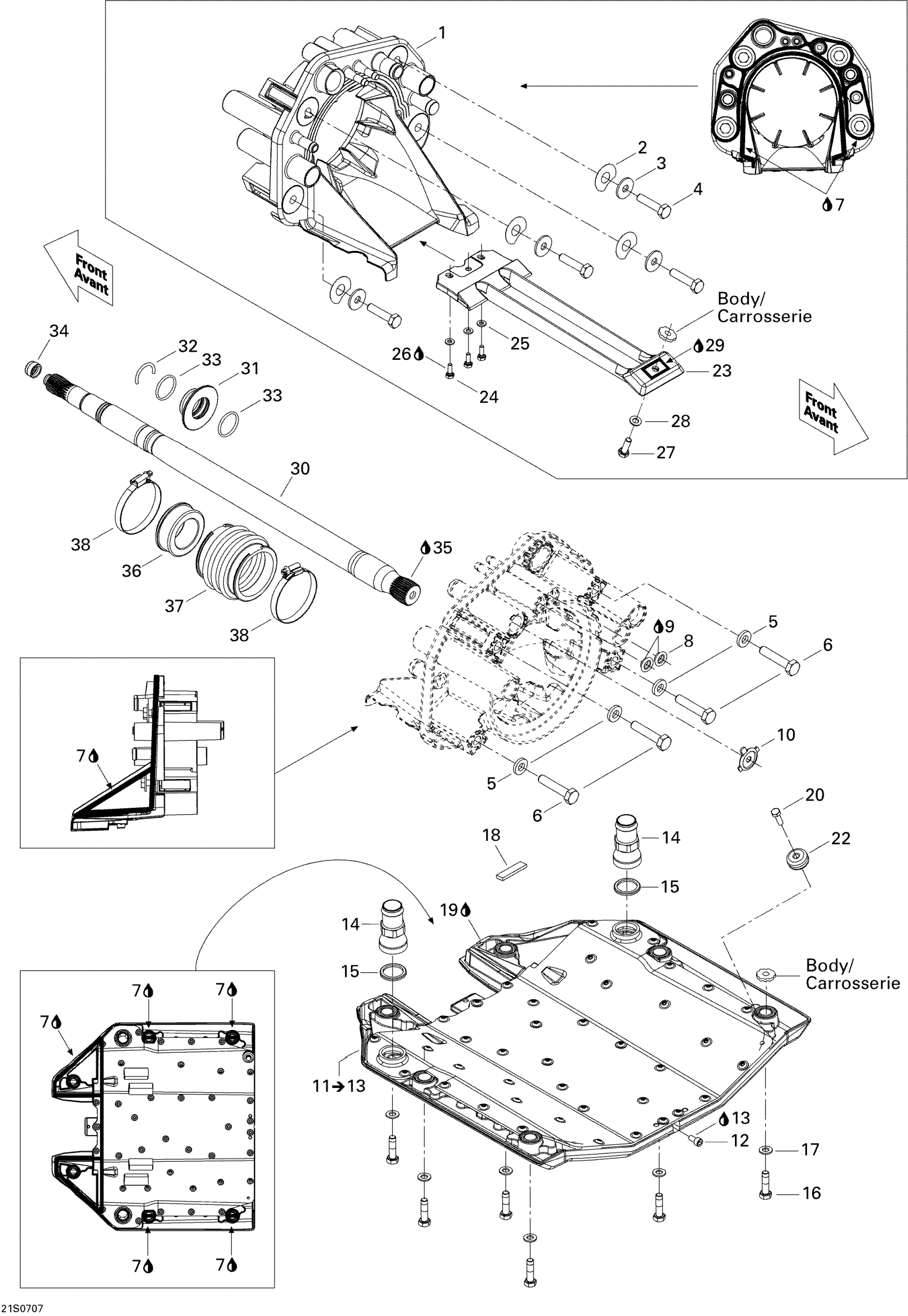

Sea-doo RXP 1503 BVIC, 2007 Propulsion 1503 BVIC Diagram

#

Description
Price

1

PUMP SUPPORT ASS'Y - Call your local BRP dealership

271001546

Unavailable

2

Shim 0.3 mm

272000053

$11.49

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

5

Flat Washer

211200051

$1.68

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

8

Watertight Seal

293250084

$7.49

9

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

10

Reducer This part replaces 291001887.

291004649

$17.49

11

Riding Plate Ass'y | Includes 10 to 12

271001649

$275.49

12

Socket Drain Plug M6 X 12

250500005

$16.49

13

Was 293800013 Loctite 56765

219704454

$65.99

14

Straight Plastic Fitting

293710111

$8.47

15

O-Ring

293300121

$8.32

16

Hex. Screw M8 X 40, Scotch Grip

250000230

$2.53

17

Stainless, Flat Washer 8 mm

234081600

$0.55

18

Gasket, Neoprene 2000Mm Long

219704476

$15.36

19

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

22

Anode Zinc

271001813

$18.99

23

Pump Grate

271001476

Unavailable

24

Hex. Screw M6 X 16

207161660

$1.59

25

Stainless Flat Washer M6

234061600

$0.33

26

Loctite 271, 10 ml

293800005

$26.99

27

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

28

Stainless, Flat Washer 8 mm

234081600

$0.55

29

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$64.99

30

Drive Shaft

271001601

$328.49

31

Carbon Ring Kit | Includes 280b to 280b4

295501204

$82.49

32

C-Clip

271001577

$3.27

33

O-Ring

293300107

$1.01

34

Drive Shaft Plug

272000173

$8.68

35

Synthetic Grease, 400 G

293550010

Unavailable

36

CARBON RING - Call your local BRP dealership | Not Available. Ref Bulletin 2019-4

271001420

Unavailable

37

Bellow This part replaces 271001422.

271001933

$23.49

38

Norma Clamp

293650079

$11.60
