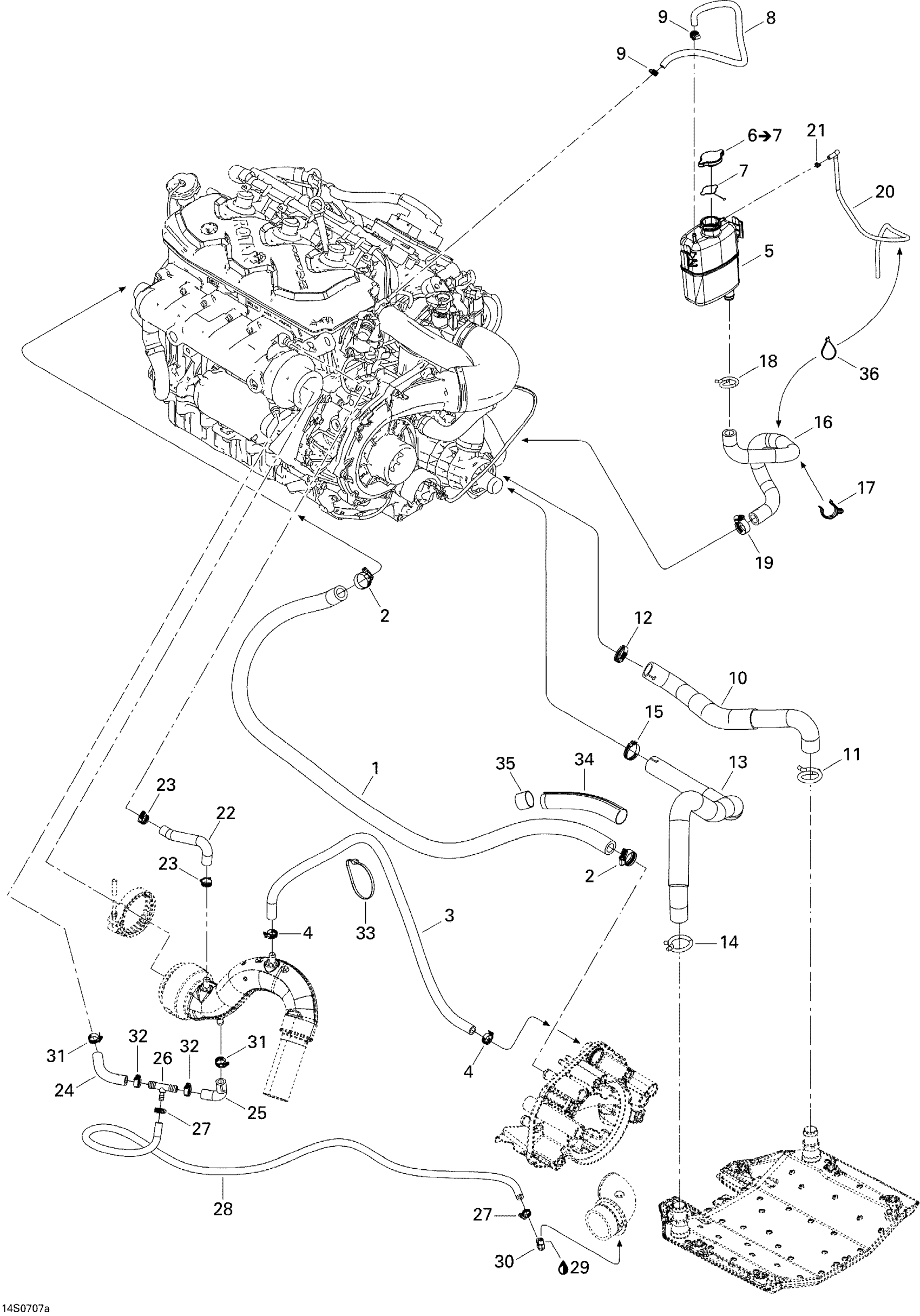

Sea-doo RXP 1503 BVIC, 2007 Cooling System (1503 BVIC) Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

Was 276000001 Hose 12.5 mm

219704394

$51.99

4

Tridon Gear Clamp

293650172

$3.09

5

Coolant Tank

276000086

$109.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Latch - Call your local BRP dealership | Not Shown

276000127

Unavailable

8

Was 275500549 Hose 1/4"

219704357

$194.99

9

Tridon Gear Clamp

293650170

$1.99

10

RH RADIATOR HOSE - Call your local BRP dealership

276000247

Unavailable

11

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

12

Tridon Gear Clamp

293650045

$5.69

13

Radiator Hose This part replaces 276000249.

276000492

$56.99

14

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

15

Tridon Gear Clamp

293650045

$5.69

16

FORMED RETURN HOSE - Call your local BRP dealership

276000122

Unavailable

17

Retainer

275500526

$4.55

18

Spring Clamp

293650115

$3.09

19

Tridon Gear Clamp

293650019

$5.82

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Tie Wrap 94 mm | 4X4

293750001

$1.03

22

Formed Hose

276000155

Unavailable

23

Tridon Gear Clamp

293650172

$3.09

24

LOWER FORMED HOSE - Call your local BRP dealership

276000136

Unavailable

25

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

26

T-Fitting

293710116

$17.62

27

Tridon Gear Clamp

293650171

$3.09

28

Hose 8 mm

509000093

Unavailable

29

Was 293800013 Loctite 56765

219704454

$65.99

30

ELBOW FITTING 90 - Call your local BRP dealership

293700024

Unavailable

31

Tridon Gear Clamp

293650172

$3.09

32

Tridon Gear Clamp

293650173

$3.09

33

Tie Wrap 368 mm

293750008

$1.04

34

Tubing 25 MM 1000MM Long

219704402

$15.99

35

SHRINK TUBING - Call your local BRP dealership

276000125

Unavailable

36

Tie-Rap 180 mm

414115200

$0.11
