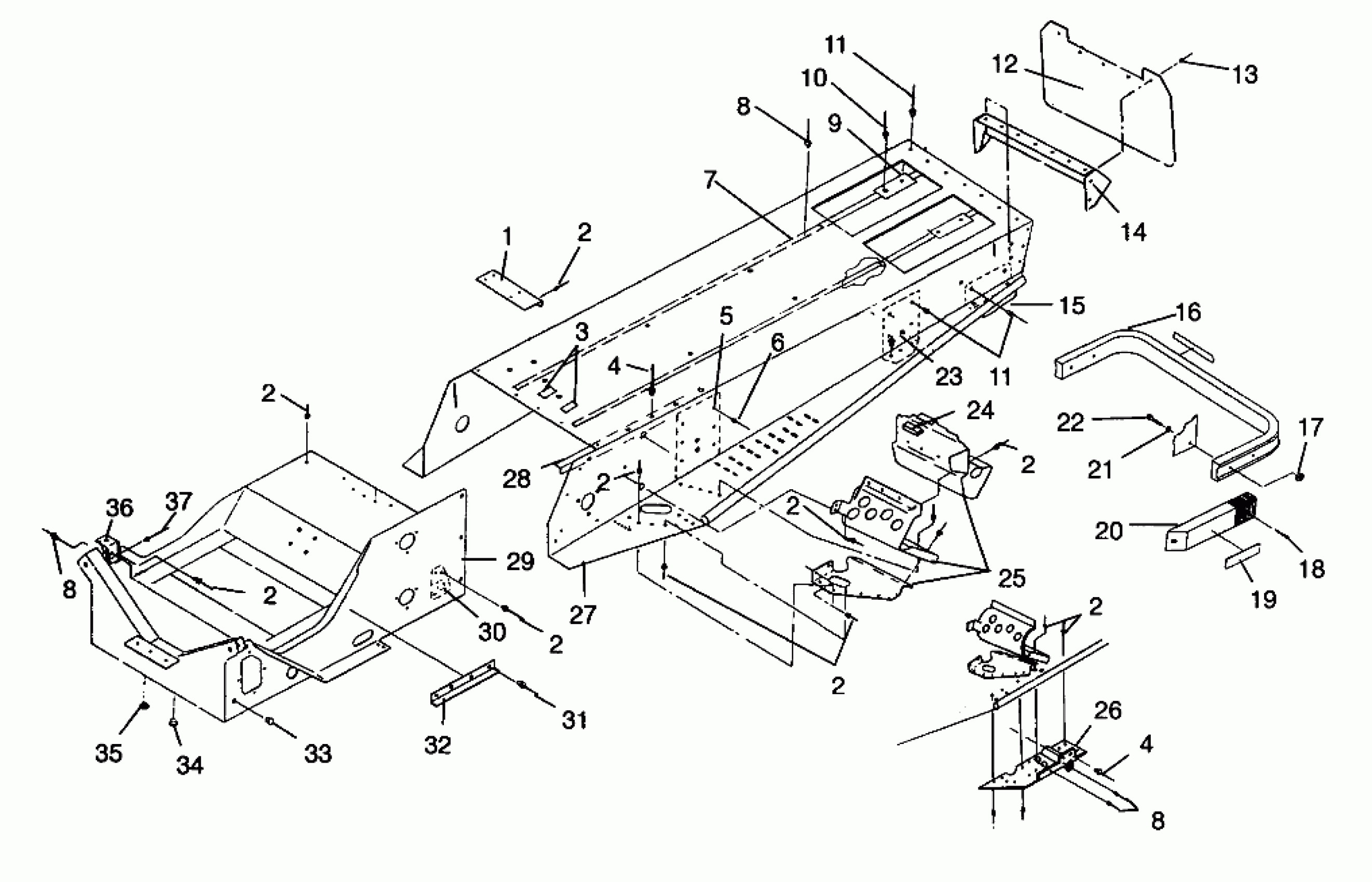

Polaris RXL - 0966768 TUNNEL RXL 0966768 (4932033203A005) Diagram
#
1
BRKT, TOOL BOX
5220973
Unavailable
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,INTERLOCK,B(50)
7661638
$1.49
3
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
4
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
4
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
5
SNAP-MALE(10)
7080227
Unavailable
6
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
7
STRIP,WEAR
5131241
Unavailable
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
SHIM,WEAR STRIP
5211651
Unavailable
10
POP RIVET(50)
7621402
$1.49
11
RIVET,SEMI-TUBE,(50)
7661841
$1.49
11
RIVET,SEMI-TUBE,(50)
7661841
$1.49
12
FLAP,SNOW
5432033
Unavailable
13
POP RIVET(50)
7621418
$1.49
14
PANEL,TUNNELBACK
5241053-067
$308.99
15
WEARPLATE,TUNNEL
5222061
Unavailable
16
BUMPER,REAR,STD.
5224674-067
Unavailable
17
NUT-LOCK(10)
7542122
$1.49
18
SCREW(10)
7511863
$1.99
19
REFLECTOR RED
2670070
$9.91
20
CAP, BUMPER, BLK.
5430930-070
Unavailable
21
WASHER(10)
7558301
$1.49
22
BOLT(10)
7512240
$3.99
23
MT,LH,REAR SUSP,BLK Substituted by 1012431-067
1012265-067
$18.89
23
MT,RH,REAR SUSP,BLK Substituted by 1012432-067
1012266-067
Unavailable
24
EXTRUSION,CLUTCHGUARD
5521238
$6.46
25
FOOTREST,LH,BLK.
1012263
Unavailable
25
FOOTREST,RH,EFI,BLK.
1012273
Unavailable
26
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
26
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
27
TUNNEL,RXL
1012384
Unavailable
28
BRACE,REINF.TUNNEL
5240242
Unavailable
29
BULKHEAD,(650)
1012342
$480.16
30
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
30
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
31
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
32
GUARD,ADAPTER GUIDE
5222857
$12.94
33
PLUG, HOLE(10)
7080416
$5.65
34
PLUG-HOLE
7080398
$4.84
35
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
36
SUPPORT,MUFFLER,BLK. Substituted by 1260724-067
1260657-067
Unavailable
37
RIVET(50)
7621452
$1.49
