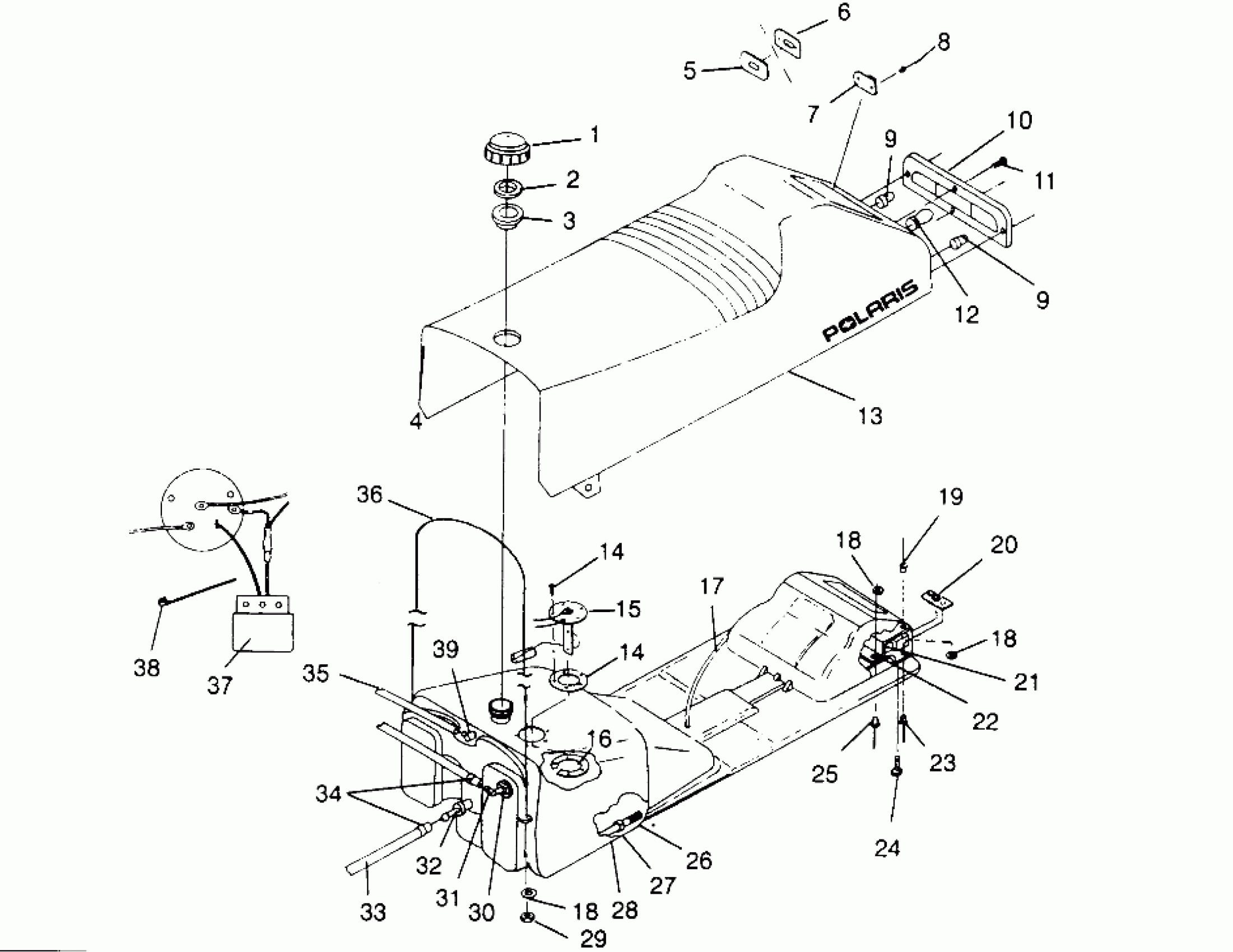

Polaris RXL - 0966768 SEAT and GAS TANK RXL 0966768 (4932033203A006) Diagram

#

Description
Price

1

CAP,FUELTANK,W/GASKET

2511226

Unavailable

2

GASKET, GAS CAP

5810513

$8.89

3

GROMMET,FUELTANK

5410842

Unavailable

4

CUSHION ASM,SEAT,LONG (Incl. 10-24, 26-30, 32)

2681875

$399.99

5

GROMMET,RELATCH,1",BOTT.(10)

7080550

Unavailable

6

GROMMET,RELATCH,1",TOP(10)

7080549

Unavailable

7

TWISTLOCK,RELATCH,1",W/HOLE(10)

7080548

Unavailable

8

RIVET(50)

7621337

$1.49

9

BULB,TAILLIGHT(10)

4030024

$4.84

9

BULB,TAILLIGHT(10)

4030024

$4.84

10

LENS,TAILLIGHT

5430423

Unavailable

11

SCREW(10)

7511840

Unavailable

12

Bulb, Brakelight

4030045

Unavailable

13

COVER,SEAT,LONG

2681876

Unavailable

14

HDWE.PKG,SEND.UNIT

2410012

Unavailable

15

SENDER,FUEL LEVEL

4110147

Unavailable

15

SENDER,FUEL LEVEL

4110147

Unavailable

16

MTG.FLANGE,FUELTANK Substituted by 5244067

5211308

Unavailable

17

HARNESS,TAILLIGHT

2460398

Unavailable

18

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

18

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

18

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

19

RIVET, BLIND(50)

7621467

$1.49

20

NUT,RETAINER-WELD.(10)

7542147

$17.59

21

COVER,T/L PROTECTOR

5431436

$21.43

22

HOUSING,TAILLIGHT Substituted by 5433341

5431545

Unavailable

23

RIVET(50)

7621301

$3.99

24

SCREW(10)

7512242

$2.39

25

RIVET(50)

7621464

$3.99

26

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

27

RING, COMPRESSION(10)

7080402

$1.60

28

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

29

NUT(10)

7541925

$1.49

30

GROMMET-TANK FITTING(10)

7052028

$6.39

32

FITTING - OUTLET(10)

7052023

$24.99

33

FUEL LINE, 5 FT.

8450045-153

Unavailable

33

FUEL LINE, 5 FT.

8450045-153

Unavailable

34

CLAMP, HOSE

7080490

Unavailable

35

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

36

CABLE,TANK,RETENTION

7080559

Unavailable

37

RECTIFIER, FUEL (LR-51)

4060094

$17.46

38

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

39

FITTING,90 DEG,1/8,(10)

7052095

$4.79
