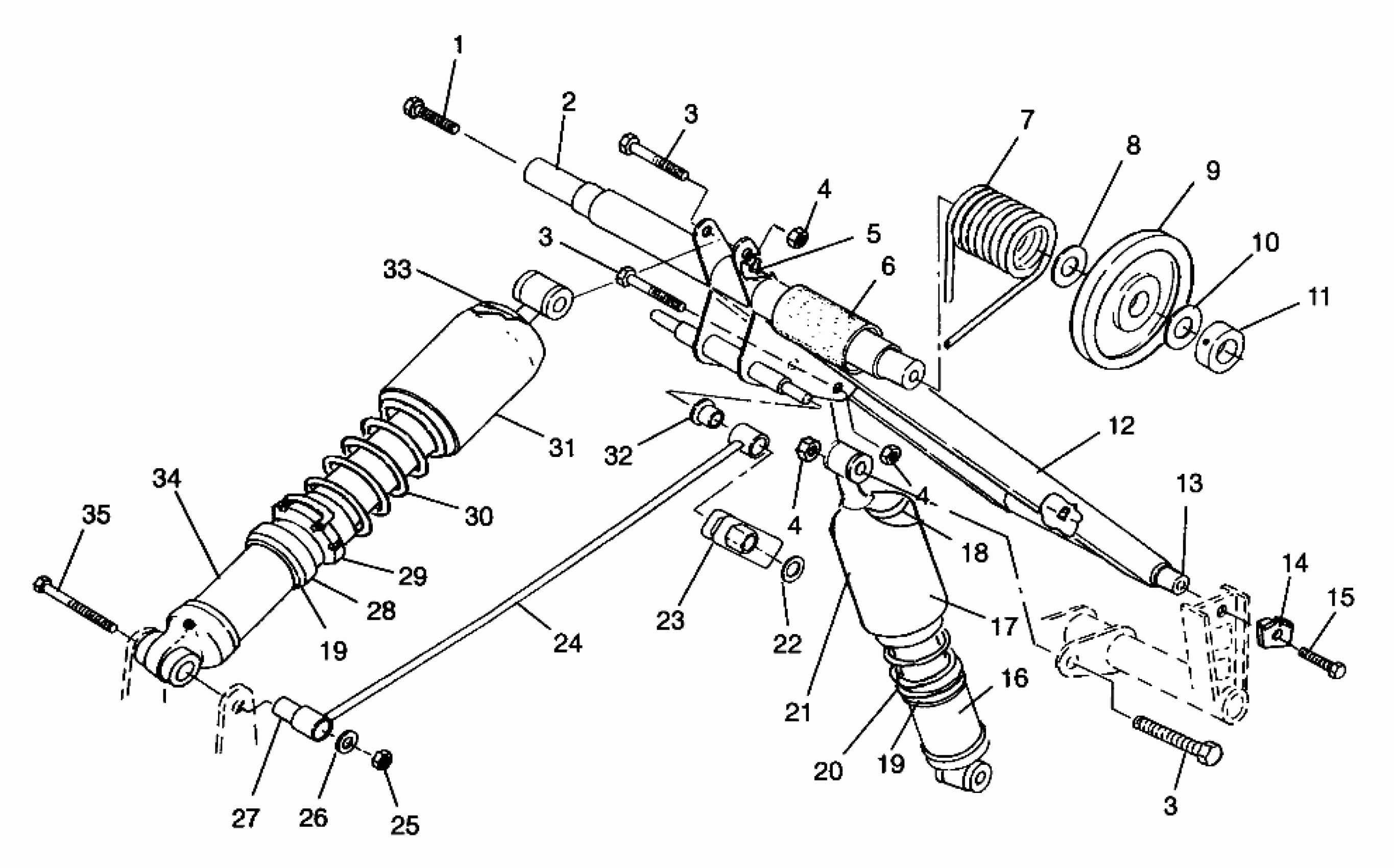

Polaris RXL - 0966768 REAR TORQUE ARM RXL 0966768 (4932033203B012) Diagram
#
Description
Price
1
BOLT(10)
7512587
$13.19
2
SHAFT,RTA,UPPER
5020814
Unavailable
3
BOLT Substituted by 7515491
7515433
$1.59
3
BOLT Substituted by 7515491
7515433
$1.59
3
BOLT Substituted by 7515491
7515433
$1.59
4
NUT LOCK(10)
7542411
$3.19
4
NUT LOCK(10)
7542411
$3.19
4
NUT LOCK(10)
7542411
$3.19
5
ZERK,FITTING,THREADED(10)
7080433
$1.49
6
SLEEVE,TORSION SPRING
5431923
$6.39
7
SPRING,RH,TORSION,BLK. (Std.)
7041395-067
Unavailable
7
SPRING,LH,TORS,.421,BLK. (Firm)
7041406-067
$95.19
7
SPRING,RH,TORS,.421,BLK. (Firm)
7041407-067
Unavailable
7
SPRING,LH,TORSION,BLK. (Std.)
7041394-067
Unavailable
8
WASHER, THRUST(10) Substituted by 7555871
7555787
Unavailable
9
Wheel, Carrier
1543023
Unavailable
10
WASHER, THRUST(10) Substituted by 7555871
7555862
$5.56
11
SCREW-SET(10)
7512257
$3.99
11
COLLAR-BRG. LOCK
5010155
Unavailable
12
ARM,R.TORQUE Substituted by 1541029-067
1540970-067
Unavailable
13
SHAFT,LOW,RR,TORQUE
5020843
Unavailable
14
LOCK,BOLT,MECHANICAL
5211649
Unavailable
15
BOLT(10)
7515526
$1.19
16
Fox Shock, Gas - Rear (See Pg. for Details)
-------
Unavailable
17
SPRING,BLACK,COMP.
7041253-067
$95.22
18
RETAINER,SPRING,SLOTTED
5020618
$24.99
19
RING, RETAINING(10)
7710424
$0.63
19
RING, RETAINING(10)
7710424
$0.63
20
RETAINER, SPRING BODY
5020617
Unavailable
21
SHIELD-SPRING
5430671
$24.27
22
CLIP-PUSH ON
7080394
$2.39
23
ROLLER,SPRING,ADJ.
5431909
$5.75
24
ROD, SHOCK
1541014-067
$92.99
25
NUT LOCK(10)
7542411
$3.19
26
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
27
Spacer
5333028
$1.59
28
RETAINER,SPRING,BODY,THREADED
1500063
$44.51
29
RING,SPRING PRELOAD ADJ.
5431734
$52.60
30
SPRING,R.SUSP,BLK,LXC
7041351-067
Unavailable
31
SHIELD-SPRING
5430671
$24.27
32
BUSHING, NYLON
3573910
Unavailable
34
Fox Shock, Gas - Front Track (See Pg. for Details)
-------
Unavailable
35
BOLT(10)
7515514
$7.19
