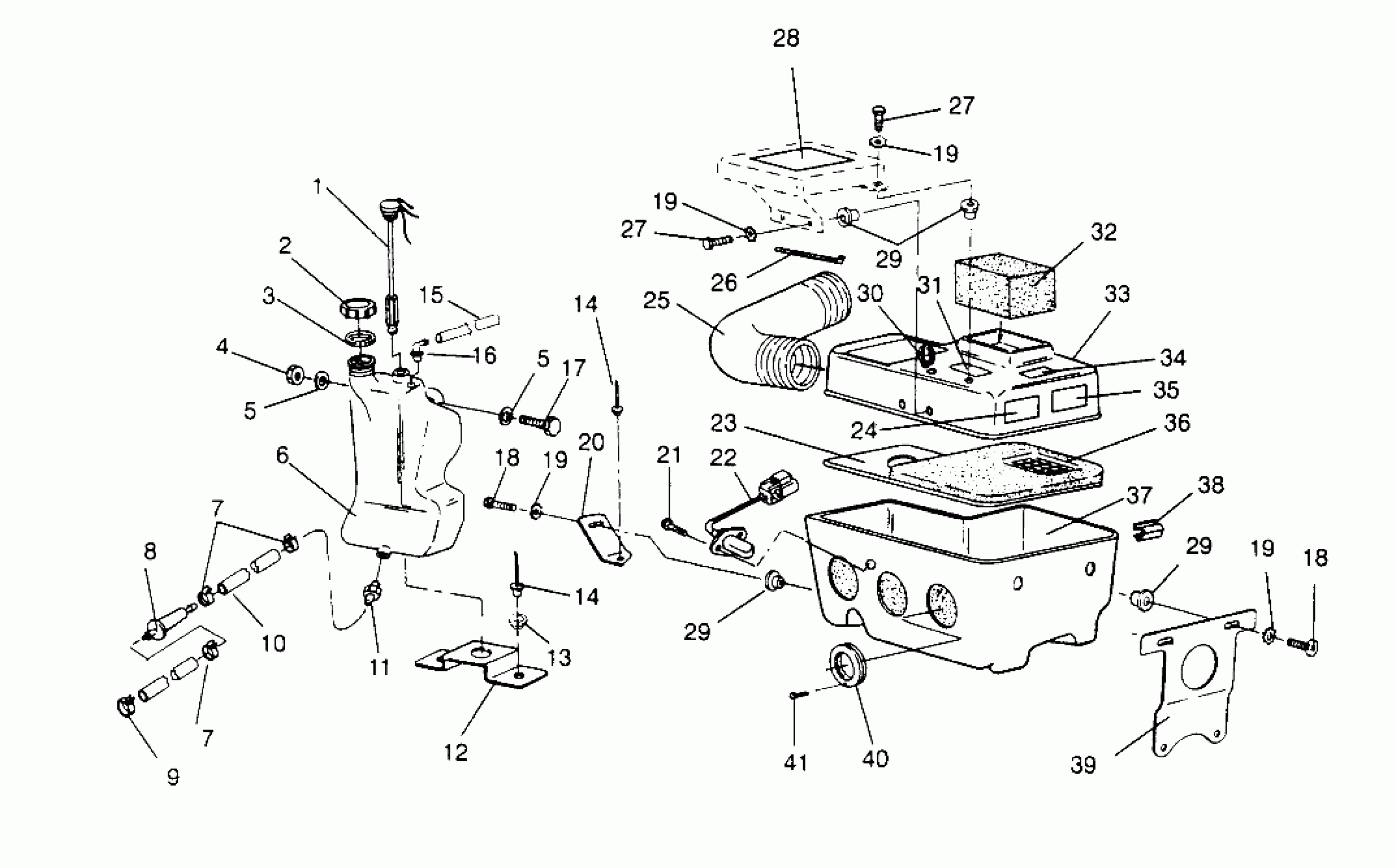

Polaris RXL - 0966768 OIL TANK / AIR BOX RXL 0966768 (4932033203C004) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

NUT-LOCK(10)

7542122

$1.49

5

WASHER,WROUGHT(10)

7558302

$1.59

5

WASHER,WROUGHT(10)

7558302

$1.59

6

Tank, Oil

5431437

Unavailable

7

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

8

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

9

CLAMP-HOSE,(10)

7080236

$1.59

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FITTING, OUTLET

7052042

$8.99

12

BRKT,OILTANK,COINED

5241334

$9.70

13

GROMMET RUBBER

5410021

Unavailable

14

RIVET-3/16-.090-.290

7661637

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

16

FITTING,90 DEG,1/8,(10)

7052095

$4.79

17

BOLT(10)

7512103

$3.19

18

SCREW(10)

7512279

$1.49

18

SCREW(10)

7512279

$1.49

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

20

BRKT,AIR SILENCER

5240823-067

Unavailable

21

BOLT(10) Substituted by 7527815

7511871

Unavailable

22

Sensor, Air Temp. (See Pg., Ref.)

-------

Unavailable

23

PLATE,AIR SILENCER

5850075

$24.27

24

DECAL, GREASING [No Longer Available]

7073426

$7.27

25

HOSE-INLET

5410251

Unavailable

26

STRAP, BLK

7080272

Unavailable

27

BOLT(10)

7512261

$4.99

27

BOLT(10)

7512261

$4.99

28

DECAL,"OXYGEN.FUEL"(RXL)

7074911

Unavailable

29

NUT-WELL(10)

7541923

$5.59

29

NUT-WELL(10)

7541923

$5.59

29

NUT-WELL(10)

7541923

$5.59

30

CLAMP,WIRE ROUTING(10)

7080409

$2.39

31

DECAL,FOAM CAUTION

7075352

Unavailable

32

INTAKE ASM,FOAM,(EFI)

1253113

Unavailable

33

COVER,SILENCER(DRILLED)

5431220

Unavailable

34

DECAL,INTAKE

7075348

Unavailable

35

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

36

BAFFLE ASM. (Incl. 23)

1253104

Unavailable

37

SILENCER,INTAKE,DRLD.

5431948

Unavailable

38

CLIP, AIR BOX,(10)

7670055

$7.99

39

BRKT,AIR BOX

5241080-067

Unavailable

40

BOOT, RELIEVED

5410585

Unavailable

41

SCREW,SELF-TAP(10)

7522004

Unavailable
