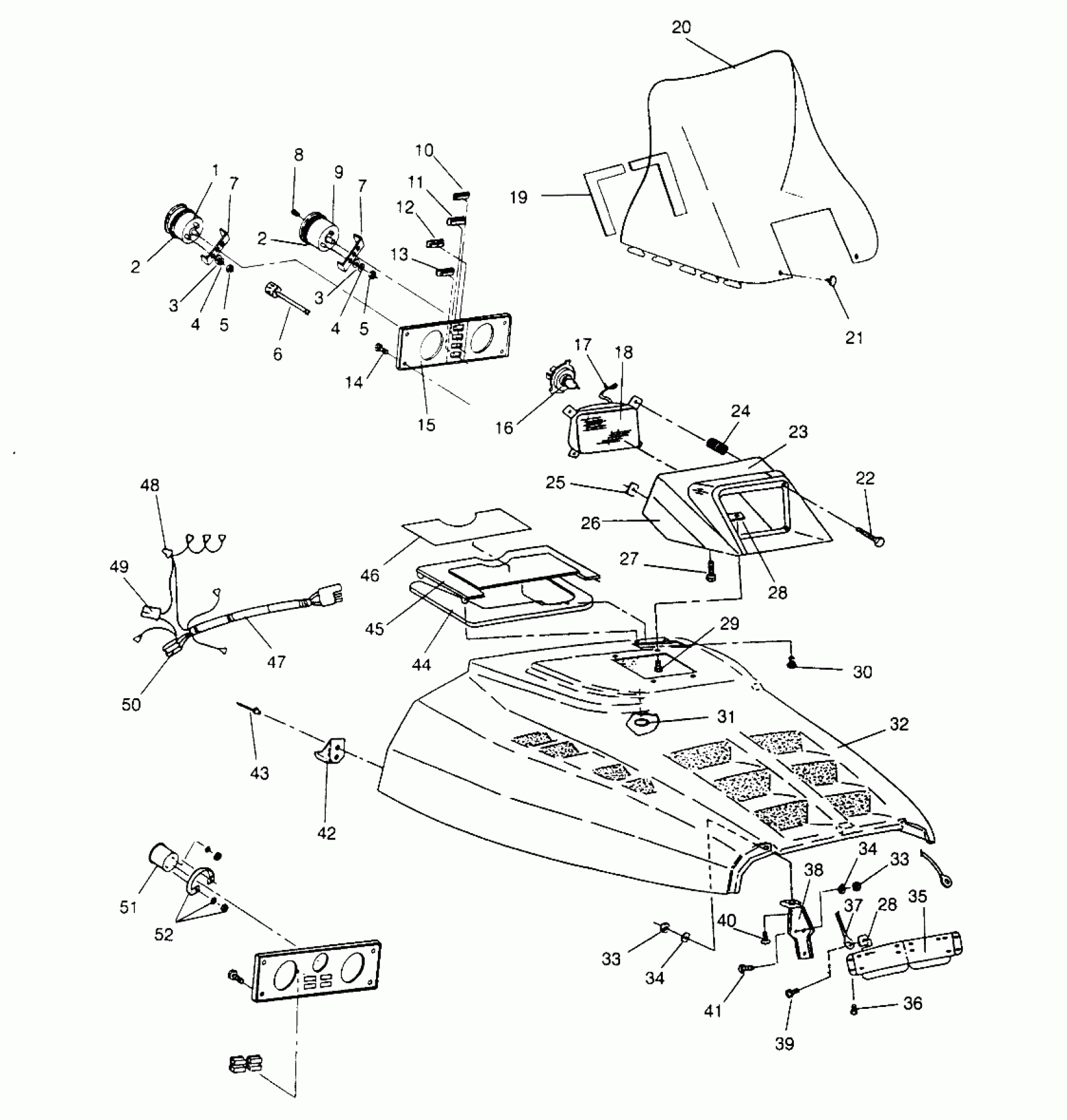

Polaris RXL - 0966768 HOOD RXL 0966768 (4932033203A009) Diagram

#

Description
Price

1

BULB TAILLIGHT(10)

4030015

$4.03

1

TACH,3P,BACKLIT (Incl. 7, 3-5)

3280192

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

2

CUSHION,TACH/SPEEDO,RUBBER

3280151

Unavailable

3

WASHER,FLAT,(10)

3280157

$2.39

3

WASHER,FLAT,(10)

3280157

$2.39

4

WASHER,SPLIT LOCK

3280156

$1.49

4

WASHER,SPLIT LOCK

3280156

$1.49

5

Nut

3280158

Unavailable

5

Nut

3280158

Unavailable

6

CABLE,SPEEDO.

3280094

$60.70

7

BRKT,SPEEDO/TACH

3280153

Unavailable

7

BRKT,SPEEDO/TACH

3280153

Unavailable

8

KNOB,TRIP ODOMETER,LH THD.

3280186

$9.70

9

SPEEDO ASM,120MPH.BACKLIT (Incl. 7, 3-5)

3280188

Unavailable

10

INDICATOR'TEMP'WARN.

4040011

$32.37

11

INDICATOR'OIL/BRK'WARN.

4040034

$12.17

12

INDICATOR'HI-BEAM'WARN.

4040013

Unavailable

13

INDICATOR,'ACC'WARN.

4040014

Unavailable

14

SCREW,SCKT.HD.CAP(10)

7512008

Unavailable

15

BEZEL, INSTRUMENT

5431308

Unavailable

16

BULB,QUARTZ.H/L,INDY

2870448

$24.99

17

RETAINER,H/L BULB

4032063

Unavailable

18

HEADLIGHT ASM.

4032040

Unavailable

19

PAD,W/S,LH,BLACK

5810437

Unavailable

19

PAD,W/S,RH,BLACK

5810438

$1.67

20

WINDSHIELD, HIGH

5431118

Unavailable

21

RIVET,(PLASTIC LOK)(50) Substituted by 7621509

7621505

$1.19

22

SCREW, ADJ.(10)

4032003

Unavailable

23

HSG,TOP(MOD.),BLK.

5431364

$23.59

24

SPRING-ADJ

4032002

Unavailable

25

NUT, SPEED(10)

7670056

Unavailable

26

HSG,INST.BOTT.BLK.

5430922-070

Unavailable

27

SCREW(10)

7512009

Unavailable

28

NUT, SPEED(10)

7670057

$1.49

28

NUT, SPEED(10)

7670057

$1.49

29

SCREW, SEMS(10)

7512283

$3.99

30

SCREW(10)

7511840

Unavailable

31

RETAINER,WINDSHIELD,(10)

5410970

$1.49

32

HOOD,BLK.MET(LIQ.INDY SP) (Incl. Foam, Foil & Warning Decals)

2631751-177

Unavailable

33

NUT-LOCK(10)

7542122

$1.49

33

NUT-LOCK(10)

7542122

$1.49

34

WASHER,WROUGHT(10)

7558302

$1.59

34

WASHER,WROUGHT(10)

7558302

$1.59

35

PLATE,RE-INF.,(HD.)

5222105

$49.51

36

SCREW(10)

7511861

Unavailable

37

CABLE,HOOD RETAINER

7080368

$10.51

38

HINGE ASM,HD,BLK

2635005-067

$16.67

39

SCREW(10)

7511989

Unavailable

40

BOLT-CARRIAGE(10)

7512263

$3.99

41

BOLT(10)

7512193

$2.39

42

CUP, HOOD LATCH,(10)

5430733

$4.84

43

RIVET(50)

7621334

$1.49

44

SEAL, INTAKE

5810597

Unavailable

45

PANEL ASM,INTAKE,BLK.MET. (Incl. 4-6)

2620095-177

Unavailable

46

DECAL,DASH WARN.(PARK BRK) Substituted by 7075457

7075440

Unavailable

47

HARNESS,HEADLIGHT(RXL)

2460436

$26.78

48

HOUSING (Tach. Conn.)

4020052

Unavailable

49

HOUSING (Headlight)

4020114

Unavailable

50

HOUSING (Speedo., Conn.)

4020115

$1.59

51

INDICATOR,FUEL LEVEL

3280118

$53.59

52

HDWE.PKG,FUEL INDIC.

3280119

$24.79
