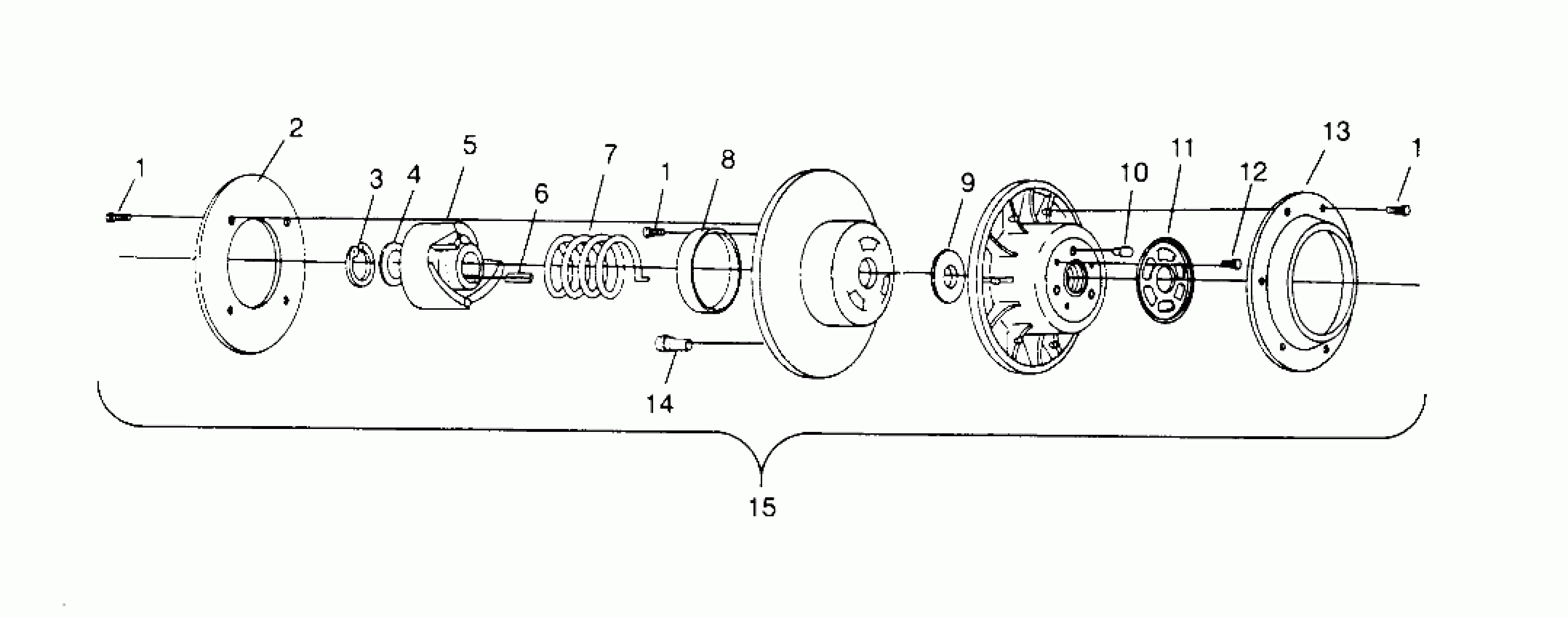

Polaris RXL - 0966768 DRIVEN CLUTCH RXL 0966768 (4932033203C001) Diagram

#

Description
Price

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

1

SCREW(10)

7512048

Unavailable

2

PLATE

5210749

$30.99

3

RING,RETAINING(10)

7714804

$9.59

4

WASHER(10)

7556804

$1.49

5

RAMP,DRIVEN,36 DEGREE

5130895

$199.99

6

KEY SQUARE(10)

7721103

$5.65

7

SPRING,CLUTCH,(RED) (Red)

7041198

$52.60

8

BUSHING,D.U.

3569803

Unavailable

9

WASHER(10)

7555899

Unavailable

10

PIN, CLUTCH

5020653

$34.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

SCREW(10)

7515133

$3.99

13

CAP DRIVEN

5230101

Unavailable

14

BUTTON-RAMP,(10)

5430466

$6.46

15

CLUTCH,36DEG.ADJ,DRIVEN Substituted by 1321925 (Incl. 1-14)

1322155

Unavailable
