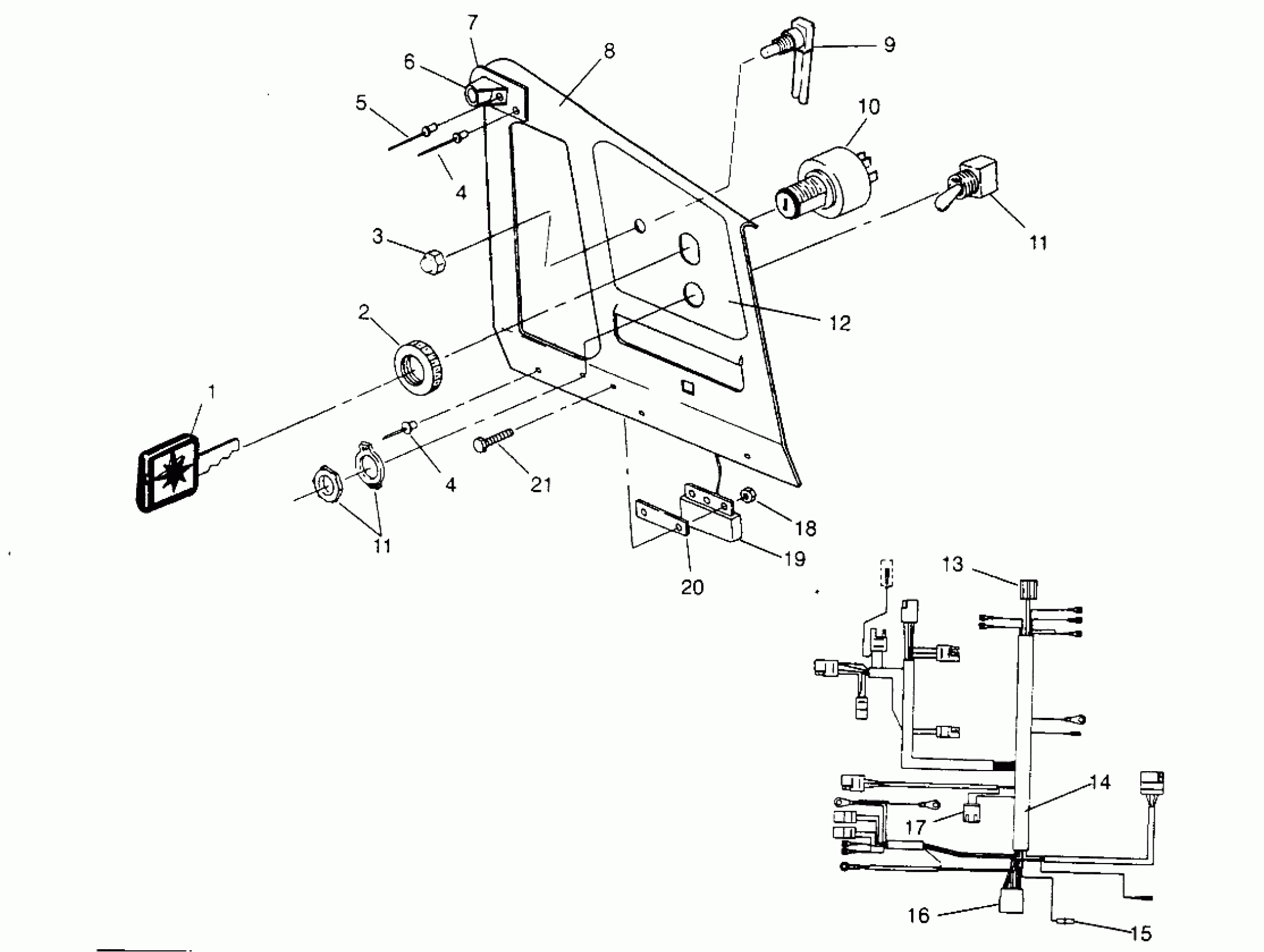

Polaris RXL - 0966768 CONSOLE RXL 0966768 (4932033203A013) Diagram

#

Description
Price

1

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

2

NUT, IGN.SWITCH(10)

7543101

Unavailable

3

BOOT,SW. O'RIDE

7080412

Unavailable

4

RIVET,INTERLOCK,B(50)

7661638

$1.49

4

RIVET,INTERLOCK,B(50)

7661638

$1.49

5

RIVET,(50)

7621477

$1.19

6

GUIDE, RECOIL

5431385

$10.51

7

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

8

CONSOLE

5222757-067

Unavailable

9

HARNESS,SW,ELEC.ENRICH

2460364

Unavailable

10

KIT,IGN.SWITCH

2200358

$76.89

11

SW,HEATER,HI-LOW

4110077

Unavailable

11

SW,HEATER,HI-LOW

4110077

Unavailable

12

DECAL, CONSOLE [No Longer Available]

7073073

Unavailable

13

RECEPTACLE HOUSING

4020062

Unavailable

14

HARNESS,MAIN(RXL TRNG,94)

2460437

Unavailable

15

CONNECTOR, TACH.

2200094

Unavailable

16

HOUSING,W/RECEPTACLES

2200039

Unavailable

17

CONNECTOR, BRAKE SWITCH

4020112

Unavailable

18

NUT(10)

7541925

$1.49

19

REGULATOR,14 VAC.LR-9

4060122

Unavailable

20

SPACER,REGULATOR

5211573

Unavailable

21

BOLT(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labelled on underside of switch body behind console. Key dot code found

7512031

$2.23
