Description

Price

1

SHIFT SHAFT ASSEMBLY.1

5U4-18101-00-00

Unavailable

2

CIRCLIP

99006-10600-00

$9.49

3

SHIFT LEVER ASSEMBLY

353-18120-00-00

Unavailable

4

ROLLER, SHIFT LEVER

214-18178-00-00

Unavailable

5

SPRING TORSION 353181240000

90508-32054-00

Unavailable

6

SHAFT

367-18197-00-00

Unavailable

7

CIRCLIP

99006-10600-00

$9.49

8

SCREW, ADJUSTING (367)

90149-08094-00

$7.49

9

NUT(6L2)

95333-08600-00

$2.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

CIRCLIP

99006-10600-00

$9.49

13

SHIFT PEDAL ASSY

2HX-18110-10-00

$36.99

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06

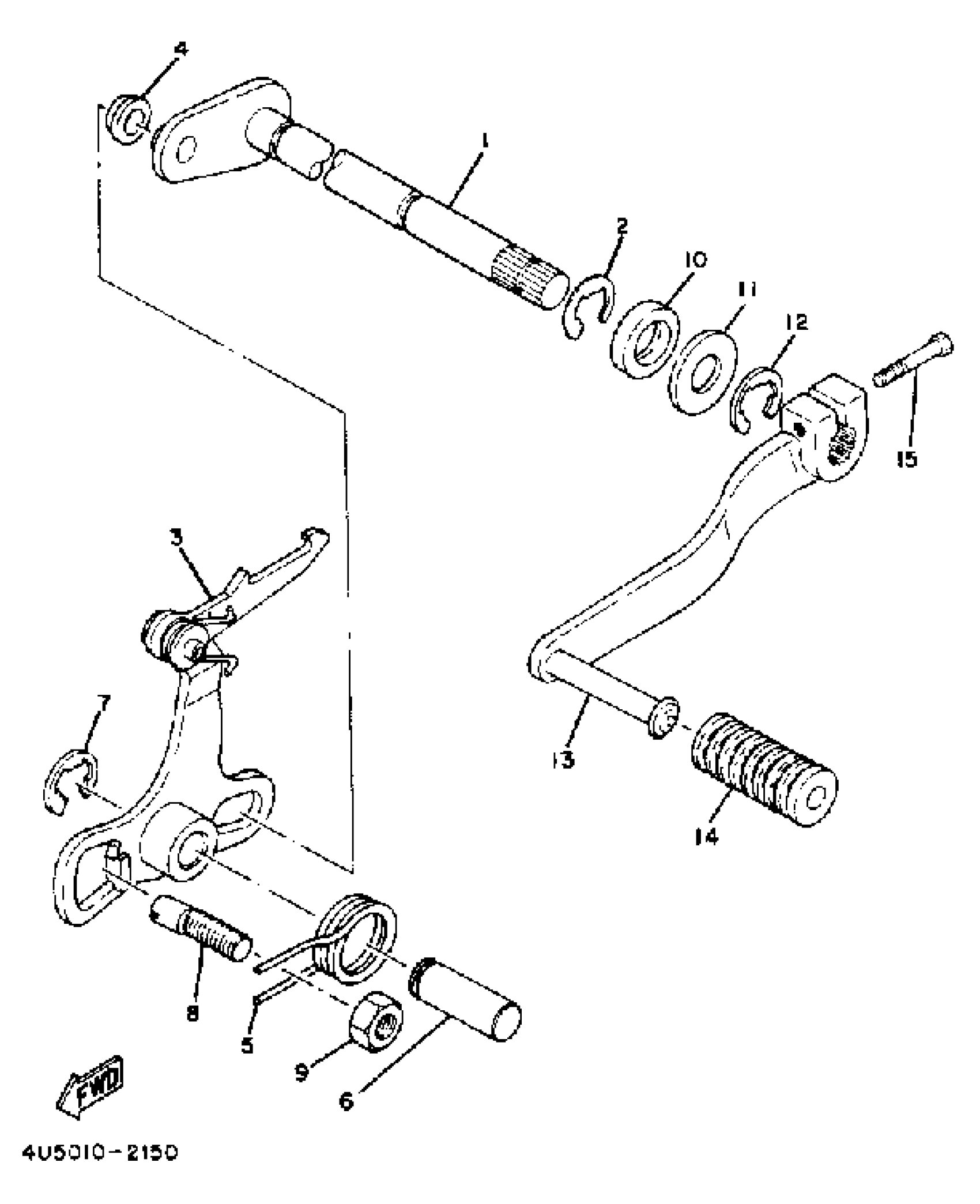

Yamaha RX50K (RX350MK) 1983 SHIFT SHAFT Diagram

SHIFT SHAFT ASSEMBLY.1

CIRCLIP

SHIFT LEVER ASSEMBLY

ROLLER, SHIFT LEVER

SPRING TORSION 353181240000

SHAFT

CIRCLIP

SCREW, ADJUSTING (367)

NUT(6L2)

SEAL, OIL (30X)

WASHER, PLATE (353)

CIRCLIP

SHIFT PEDAL ASSY

COVER, CHANGE PEDAL

BOLT, HEXAGON
