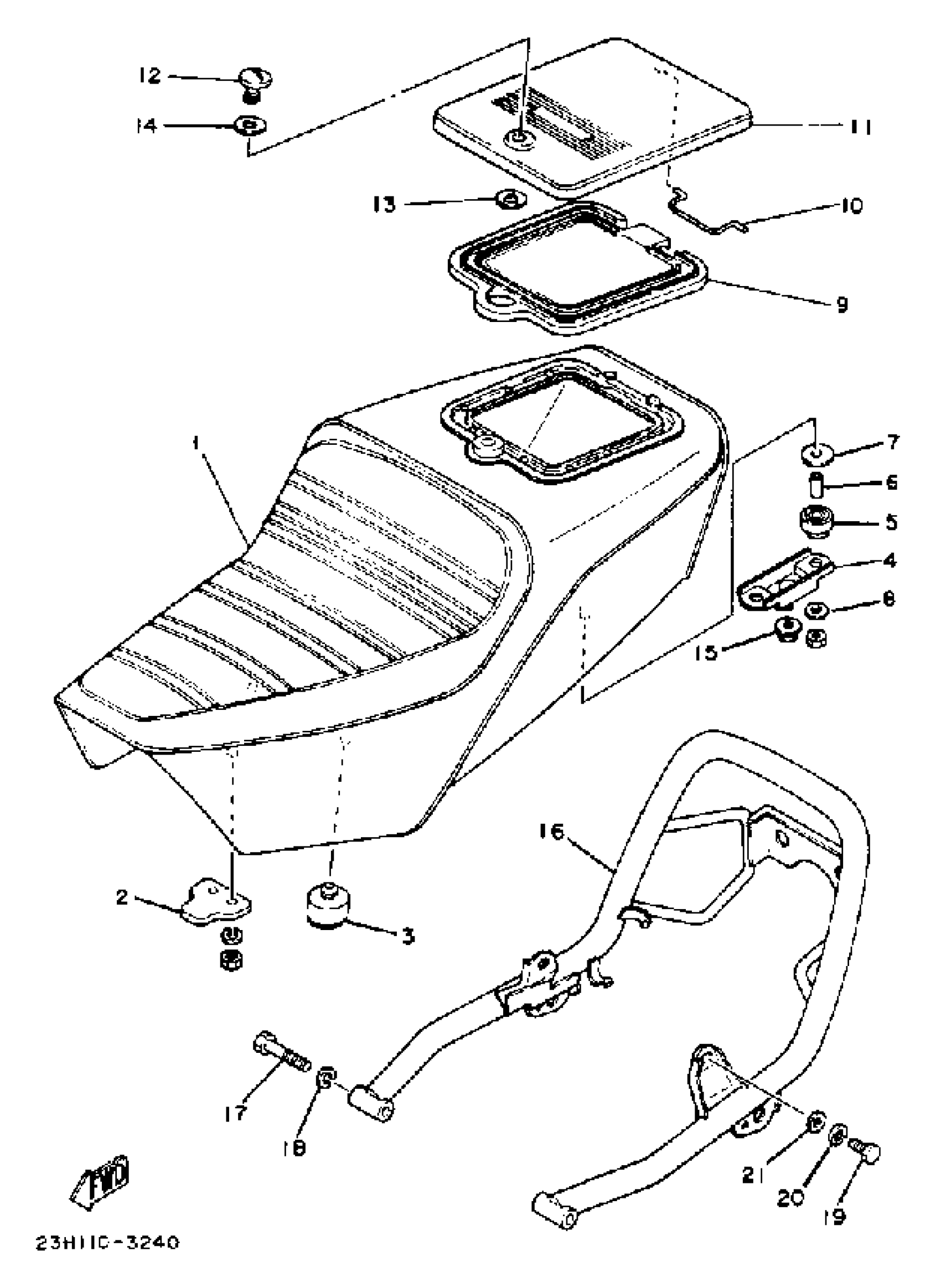

Yamaha RX50K (RX350MK) 1983 SEAT Diagram
#
Description
Price
1
SEMI-DBL-SEAT ASSEMBLY
4U5-W2473-01-00
Unavailable
2
BRACKET, SEAT
1M1-24748-00-00
Unavailable
3
PAD, SEAT
1T4-24741-00-00
Unavailable
4
BRACKET, SEAT
4U5-24738-01-00
Unavailable
5
DAMPER, SEAT
2H7-24723-00-00
Unavailable
9
SEAL
4U5-2475M-01-00
Unavailable
10
HINGE, SEAT
4U5-24769-00-00
Unavailable
11
LID 1
4U5-2473T-01-00
Unavailable
15
SPEED NUT
4U5-24735-00-00
Unavailable
16
HANDLE, SEAT
(40E-24773-00-00)
Unavailable
17
BOLT(3HN)
97017-08045-00
Unavailable
18
WASHER(JN5)
92907-08100-00
Unavailable
19
BOLT, HEXAGON
97017-08016-00
Unavailable
20
WASHER(JN5)
92907-08100-00
Unavailable
21
WASHER(6TA)
92907-08600-00
Unavailable
