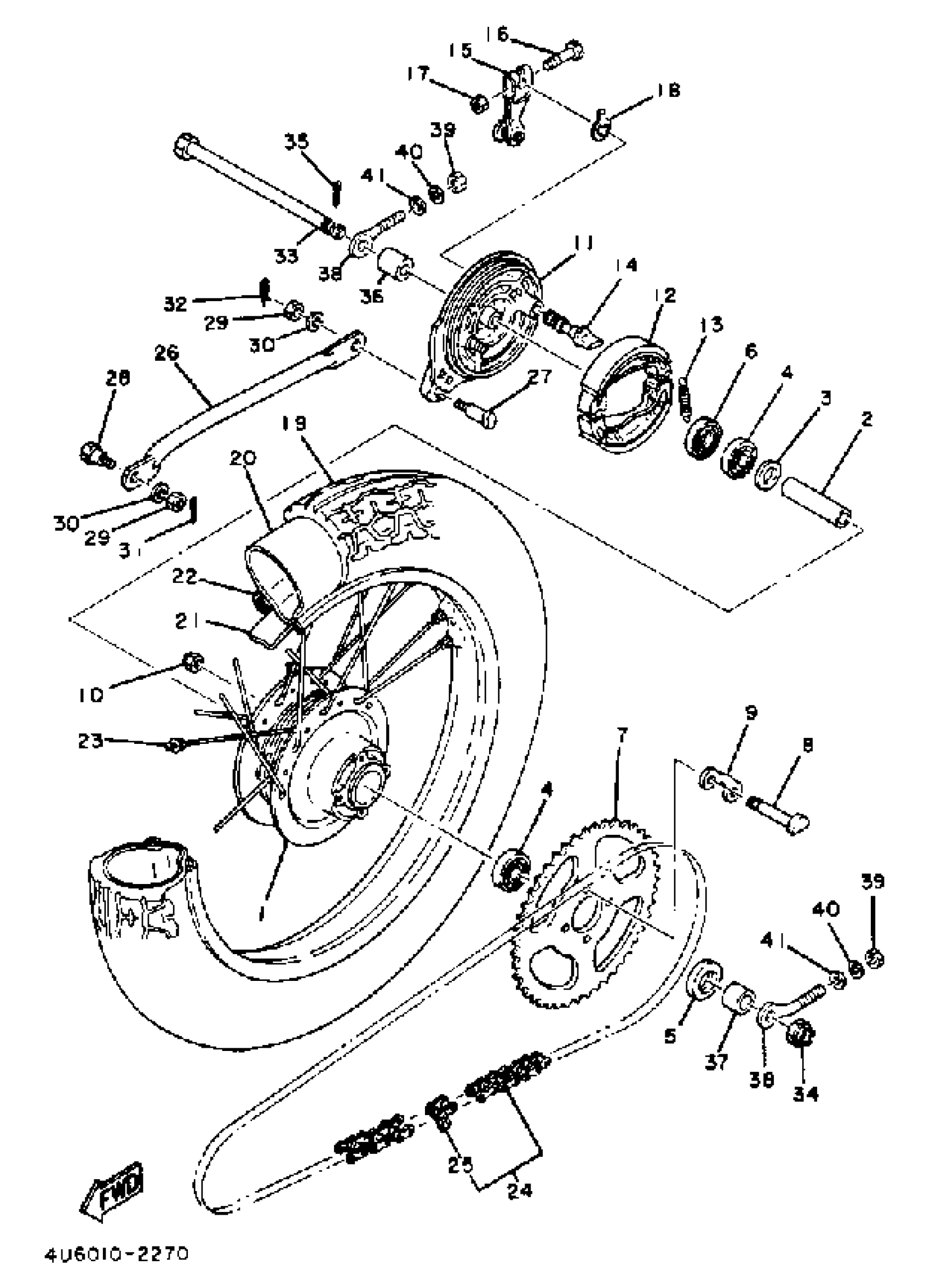

Yamaha RX50K (RX350MK) 1983 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(462-25311-01-98)

Unavailable

2

SPACER (1U1)

90560-12170-00

$17.99

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BRG.

93306-30101-00

$36.99

5

OIL SEAL(3TU)

93106-20033-00

$13.49

6

OIL SEAL (21X37X7-102)

93104-21016-00

$14.99

7

SPROCKET, DRIVEN

4U6-25447-11-00

Unavailable

8

BOLT 109254110000

90109-08319-00

$10.49

9

WASHER

40E-25412-00-00

Unavailable

10

NUT, HEXAGON (509)

90170-08158-00

$2.34

11

PLATE, BRAKE SHOE

1M3-25321-02-98

Unavailable

12

BRAKE SHOE SET-2 PCS

326-W2536-00-00

Unavailable

13

SPRING, TENSION (566).

90506-16150-00

$9.49

14

CAMSHAFT

5U7-25351-00-00

Unavailable

15

LEVER, CAMSHAFT

5U7-25355-00-00

Unavailable

16

UNAVAILABLE IN PRICE BOOK

[90-10106-54-20

Unavailable

17

NUT(6TA)

95317-06600-00

Unavailable

18

PLATE

3Y6-2533A-01-00

Unavailable

19

350-16 4PR Y967

94135-16456-00

Unavailable

19

350-16 4PR Y967

94135-16456-00

Unavailable

20

TUBE

94232-16166-00

Unavailable

20

TUBE

94232-16166-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

[94-31216-10-40

Unavailable

21

BAND, RIM

94330-16058-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

[94-41816-26-70

Unavailable

23

SPOKE SET, REAR

4U6-25304-00-00

Unavailable

24

CHAIN, DRIVE

94580-52110-00

Unavailable

25

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

26

BAR, TENSION

4U5-25371-00-00

Unavailable

27

BOLT

90109-08639-00

Unavailable

28

UNAVAILABLE IN PRICE BOOK

[90-10908-63-80

Unavailable

29

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

30

WASHER(JN5)

92907-08100-00

Unavailable

31

PIN, COTTER

91490-20025-00

Unavailable

32

CLIP (156-83525-00)

90468-10050-00

Unavailable

33

AXLE, WHEEL

5U4-25381-00-00

Unavailable

34

NUT CASTLE(481)

90171-12005-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

COLLAR

90387-121F0-00

Unavailable

37

COLLAR (40E)

90387-120F9-00

Unavailable

38

PULLER, CHAIN 2

5U4-25389-00-00

Unavailable

39

NUT(6TA)

95317-06600-00

Unavailable

40

WASHER, SPRING

92907-06100-00

Unavailable

41

WASHER(6TA)

92907-06600-00

Unavailable
