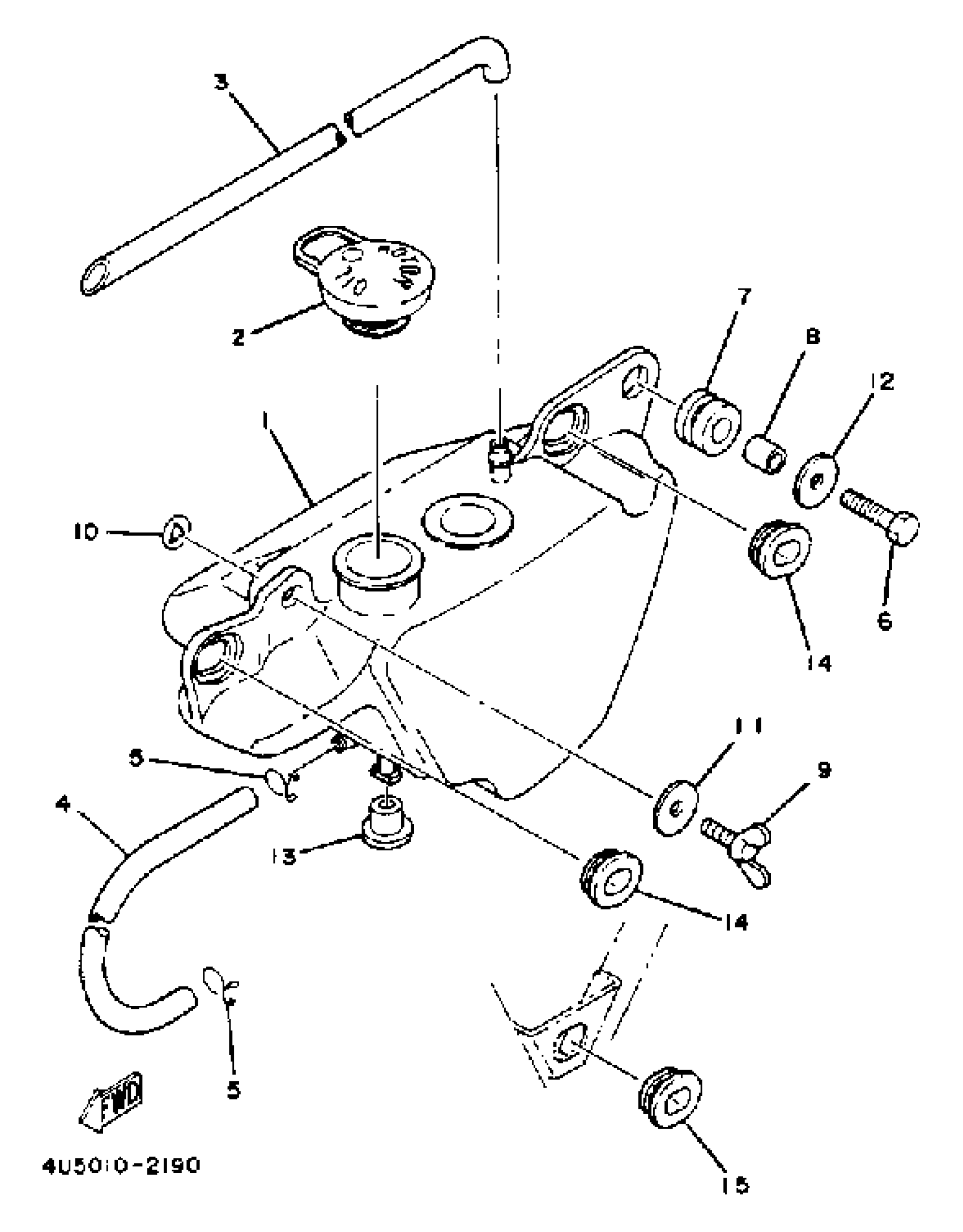

Yamaha RX50K (RX350MK) 1983 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

4U5-21751-01-00

Unavailable

2

BODY, CAP

1T9-21771-01-00

$7.99

3

PIPE

22F-14197-00-00

Unavailable

4

HOSE (L420)

90445-092K1-00

$12.49

5

CLIP 101235600

90467-08003-00

$10.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

GROMMET 839774310000

90480-14023-00

$7.49

8

COLLAR

90387-07020-00

$8.49

9

BOLT, WING

90122-06015-00

Unavailable

10

PLATE

4U5-2176E-00-00

$7.99

11

WASHER, PLATE

90201-06380-00

$0.60

12

WASHER, PLATE

90201-06380-00

$0.60

13

GROMMET

(90480-12292-00)

Unavailable

14

GROMMET(41Y)

90480-01401-00

$8.49

15

GROMMET(41Y)

90480-01401-00

$8.49
