Description

Price

1

HEADLIGHT UNIT ASSEMBLY

40E-84110-60-00

Unavailable

2

RIM, HEADLIGHT

(23H-84115-00-00)

Unavailable

3

. RING, RETAINING

498-84195-60-00

Unavailable

4

. LENS ASSEMBLY

498-84120-61-00

Unavailable

5

. SCREW

438-84194-60-00

Unavailable

6

SPRING, REFLECTOR SET

1M1-84124-60-00

$8.99

7

. COVER, SOCKET

341-84397-61-00

Unavailable

8

. SCREW, RIM ADJUSTING

447-84331-61-00

Unavailable

9

SPRING, COMPRESSION (ITALY)

447-84332-60-00

$9.99

10

NUT, ADJUST

198-84334-60-00

$7.99

11

BODY ASSEMBLY, HEADLIGHT (5U7-84130-00)

4U5-84130-00-00

Unavailable

12

COLLAR, BODY FITTING

498-84145-60-00

$6.99

13

DAMPER, HEAD LAMP A

498-84163-60-00

$7.99

14

DAMPER, HEAD LAMP B

498-84164-60-00

$6.99

15

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

16

BOLT

97017-08035-00

Unavailable

17

WASHER(6TA)

92907-08600-00

Unavailable

18

NUT, FLANGE

95704-08500-00

Unavailable

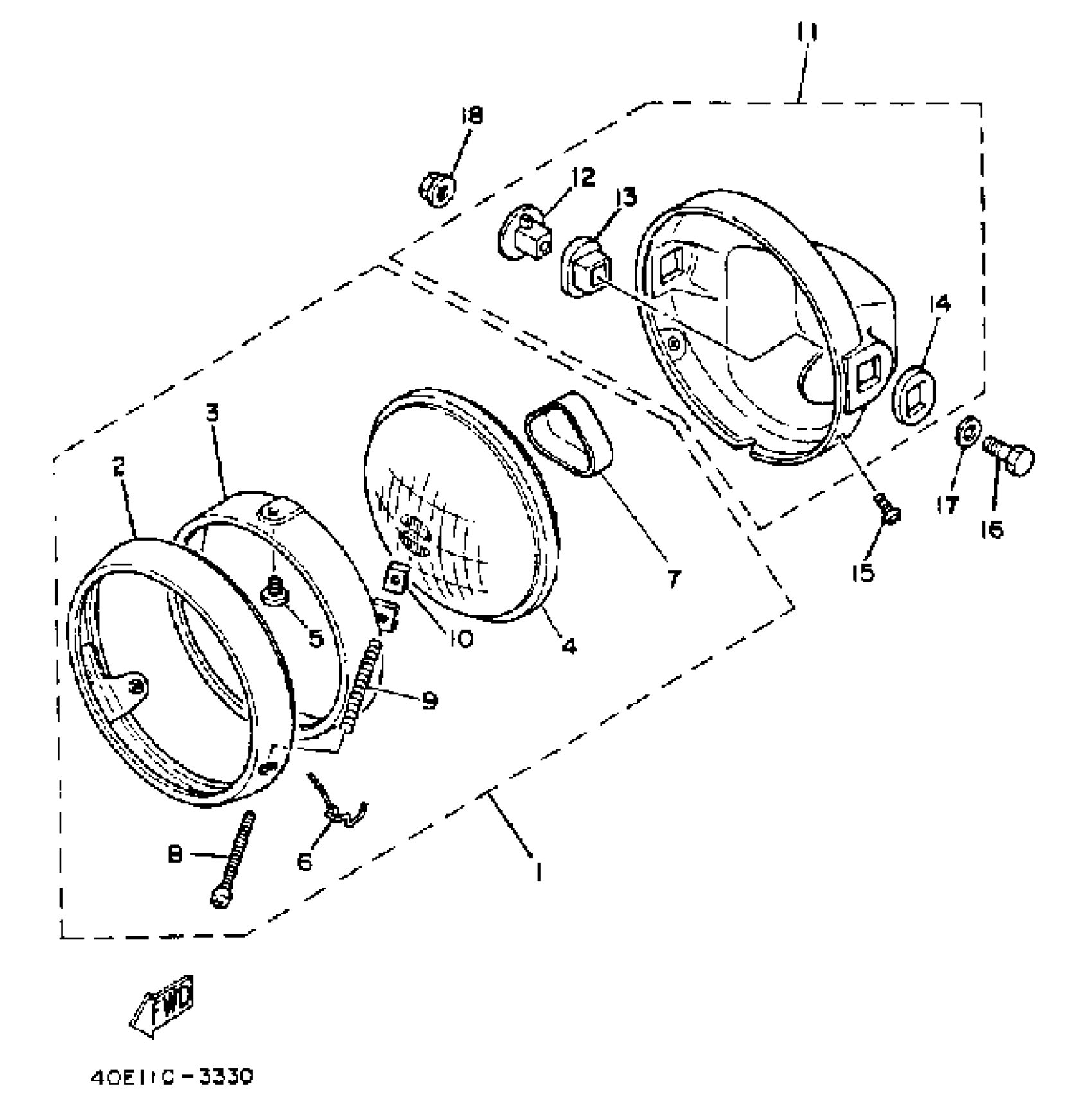

Yamaha RX50K (RX350MK) 1983 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

RIM, HEADLIGHT

. RING, RETAINING

. LENS ASSEMBLY

. SCREW

SPRING, REFLECTOR SET

. COVER, SOCKET

. SCREW, RIM ADJUSTING

SPRING, COMPRESSION (ITALY)

NUT, ADJUST

BODY ASSEMBLY, HEADLIGHT (5U7-84130-00)

COLLAR, BODY FITTING

DAMPER, HEAD LAMP A

DAMPER, HEAD LAMP B

SCREW,PAN HEAD (646)

BOLT

WASHER(6TA)

NUT, FLANGE
