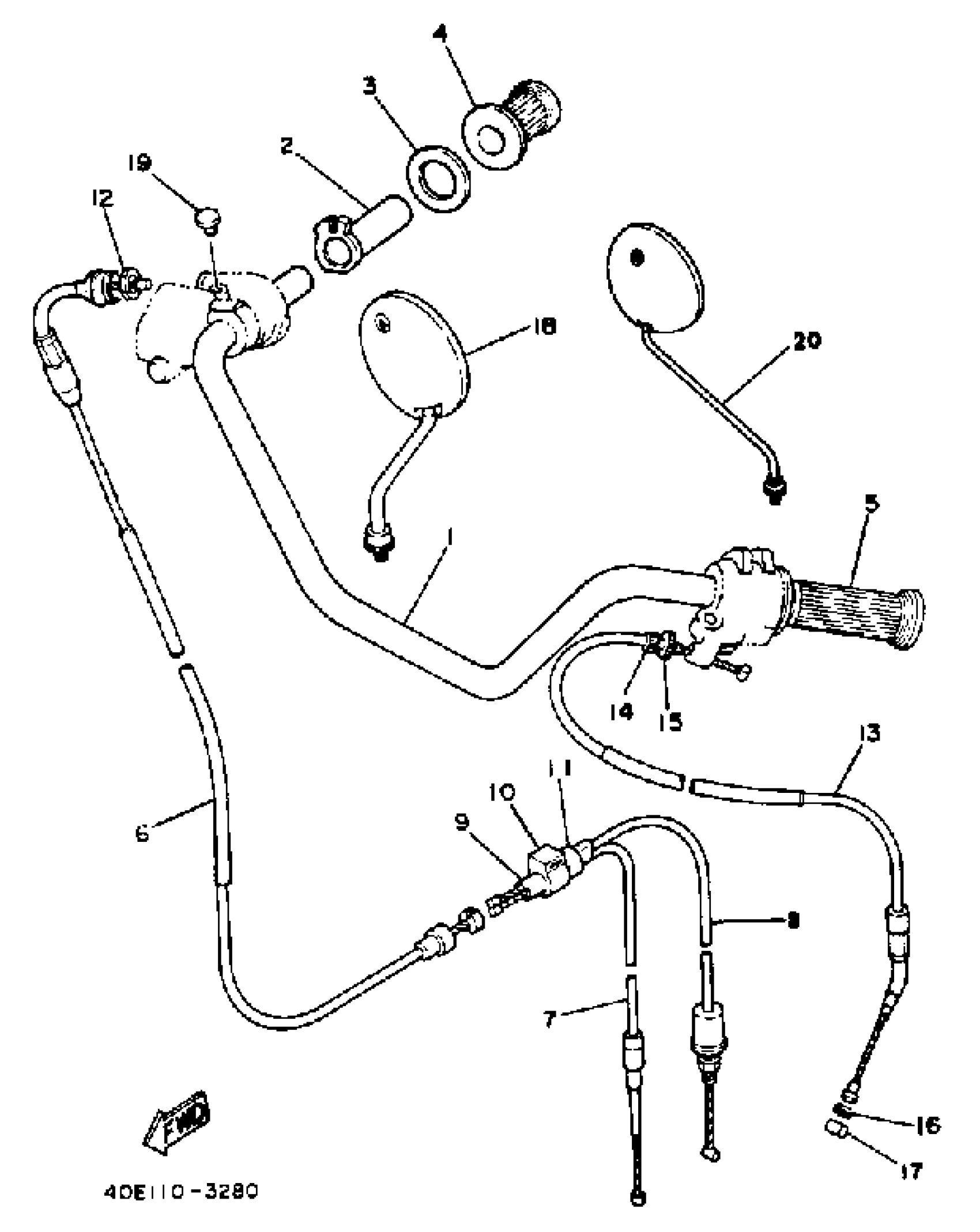

Yamaha RX50K (RX350MK) 1983 HANDLEBAR - CABLE Diagram

#

Description
Price

1

HANDLEBAR

4U5-26111-01-00

Unavailable

2

TUBE, GUIDE.

434-26243-00-00

$49.99

3

RING, LEAF

1M1-26249-01-00

$7.99

4

GRIP (R.H)

1A0-26242-01-00

$39.99

5

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

6

CABLE, THROTTLE 1

23H-26311-00-00

Unavailable

7

CABLE, THROTTLE 2

5U7-26312-00-00

Unavailable

8

CABLE, PUMP

4U5-26321-00-00

Unavailable

9

CONNECTER, CABLE

4U1-26261-00-00

$39.99

10

BOOT

4G3-26339-00-00

Unavailable

11

CAP

5L6-26272-00-00

$8.99

12

NUT, HEXAGON

90170-10038-00

$4.67

13

CABLE, CLUTCH

40E-26335-00-00

Unavailable

14

BOLT

90123-08002-00

$10.49

15

NUT

90179-08030-00

$5.49

16

WASHER(6TA)

92907-06600-00

Unavailable

17

END, WIRE

164-26363-00-00

Unavailable

18

MIRROR ASSEMBLY LH (5U7-26290-10)

4U5-26290-10-00

Unavailable

19

PLUG (341-26329-00)

90338-09012-00

Unavailable

20

MIRROR ASSEMBLY RH

(5U7-26290-00-00)

Unavailable
