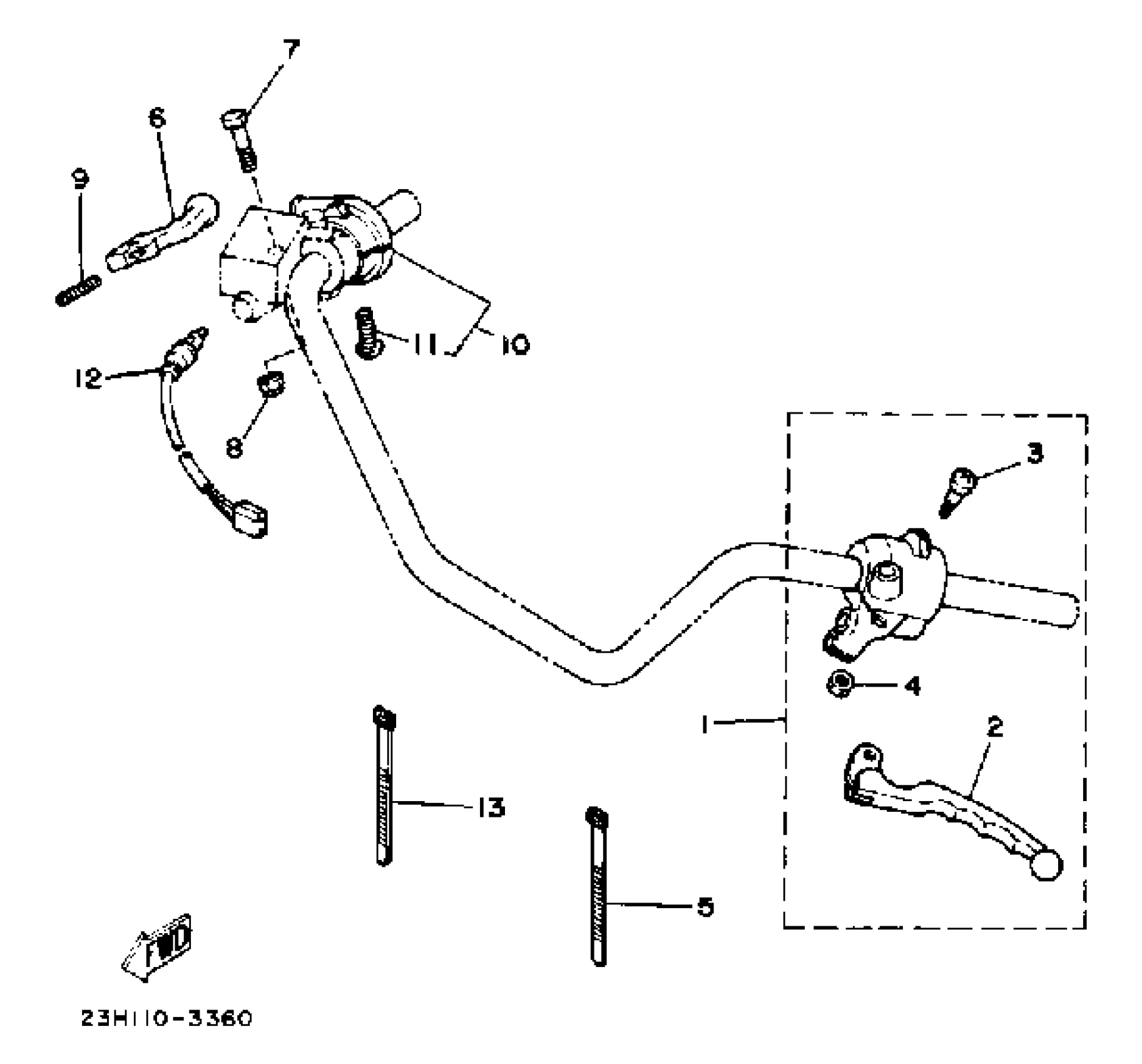

Yamaha RX50K (RX350MK) 1983 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSEMBLY 1

40E-82910-00-00

Unavailable

2

LEVER 1

5R2-83912-00-00

Unavailable

3

SCREW (1E2)

90149-05120-00

$9.49

4

NUT, FLANGE(3GM)

95707-05500-00

$8.49

5

BAND, SWITCH CORD

437-83936-01-00

$7.99

6

LEVER R

5R2-83922-00-00

Unavailable

7

BOLT (4L0)

90109-06577-00

$5.60

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

10

SWITCH, HANDLE 1

15A-83976-00-00

Unavailable

11

SCREW, PAN HEAD(41N)

90157-05057-00

Unavailable

12

FRONT STOP SWITCH ASSY

3YF-83980-00-00

$47.99

13

BAND, SWITCH CORD

437-83936-01-00

$7.99
