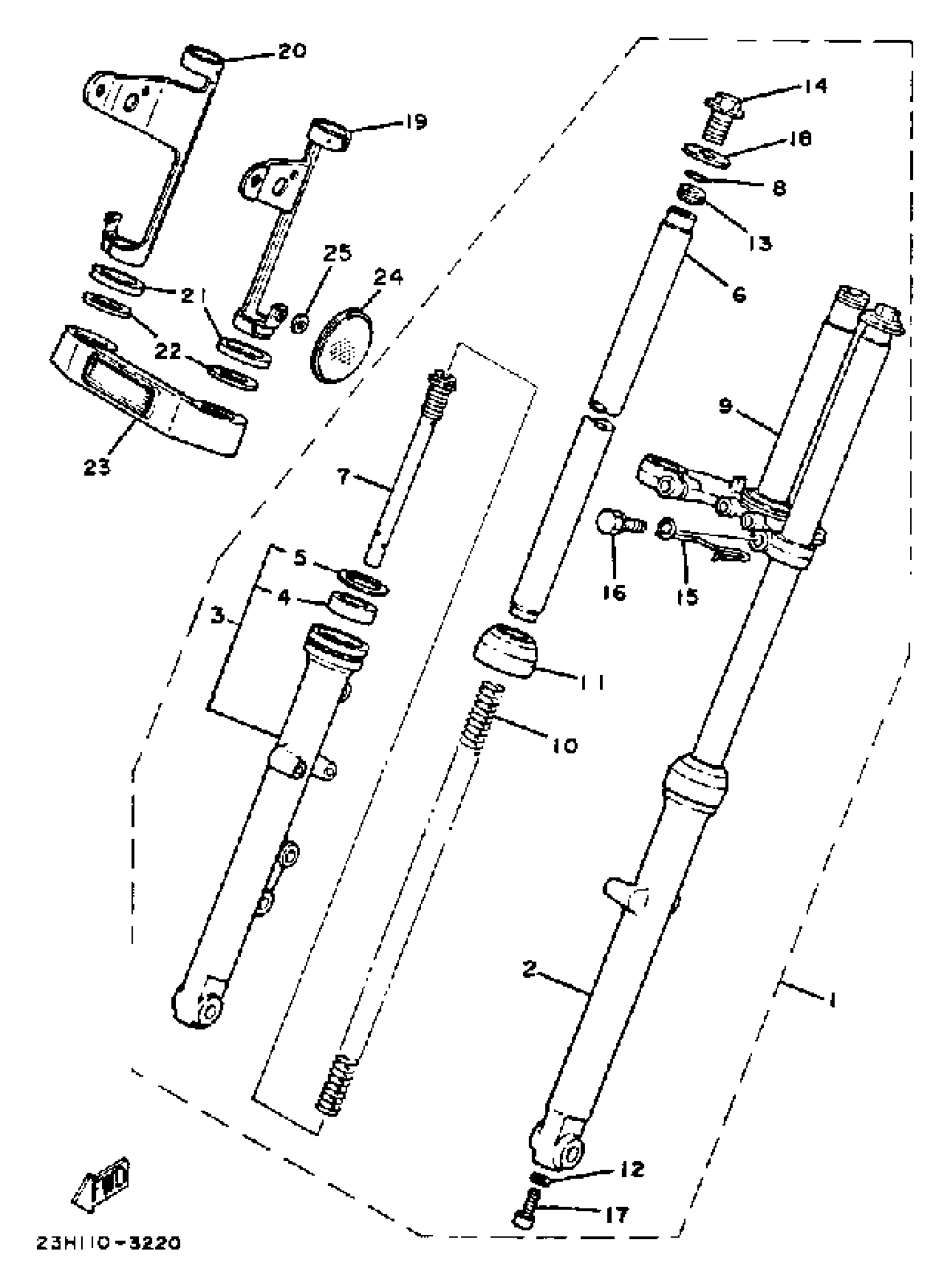

Yamaha RX50K (RX350MK) 1983 FRONT FORK Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

[5U-72310-00-00

Unavailable

2

TUBE, OUTER 1

(5U7-23126-00-00)

Unavailable

3

TUBE, OUTER 2

(5U7-23136-00-00)

Unavailable

4

OIL SEAL (5R6)

93110-27010-00

Unavailable

5

CLIP, OIL SEAL

2M6-23156-00-00

$3.48

6

. INNER TUBE 1

4U5-23110-00-00

Unavailable

7

. CYLINDER, FRTFRK FRONT FORK

4U5-23170-00-00

Unavailable

8

. O-RING

93210-16275-00

Unavailable

9

. UNDER BRACKET (4U5-23340-00-33)

5G1-23340-00-33

Unavailable

10

. SPRING, FRONT FORK

4U5-23141-00-00

Unavailable

11

SEAL, DUST

(4U5-23144-00-00)

Unavailable

12

GASKET

509-23158-L0-00

$16.49

13

. SEAT, SPRING UPPER

2U2-23142-00-00

Unavailable

14

. BOLT, CAP

5L6-23111-00-00

Unavailable

15

. UNAVAILABLE IN PRICE BOOK

[5U-72331-90-00

Unavailable

16

. UNAVAILABLE IN PRICE BOOK

[5G-02334-60-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

18

. UNAVAILABLE IN PRICE BOOK

[5U-72311-20-00

Unavailable

19

STAY, FLASHER

23H-23327-00-00

Unavailable

20

STAY, FLASHER

23H-23328-00-00

Unavailable

21

UNAVAILABLE IN PRICE BOOK

[3M-72313-70-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

[3M-72338-50-00

Unavailable

23

UNAVAILABLE IN PRICE BOOK

[5U-72312-20-00

Unavailable

24

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

25

WASHER, PLATE(3AJ)

90202-05191-00

Unavailable
