Description

Price

1

CRANKSHAFT ASSEMBLY

(23H-11400-00-00)

Unavailable

2

CRANK 1

(23H-11412-00-00)

Unavailable

3

CRANK 2

(23H-11422-00-00)

Unavailable

4

ROD, CONNECTING

3R1-11651-01-00

$125.99

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

PIN, CRANK 1

257-11681-10-00

$29.99

7

WASHER 132116850000

90209-18112-00

$10.49

8

PISTONSTD (3T2-11631-00-97)

3T2-11631-01-97

Unavailable

8

PISTON 1 O/S 0.25 (3T2-11635-00)

3T2-11635-01-00

Unavailable

8

PISTON 2 O/S 0.50 (3T2-11636-00)

3T2-11636-01-00

Unavailable

9

PISTON RING SET (STD)

2W1-11610-00-00

$64.99

9

PISTON RINGSET 1ST

2W1-11610-10-00

Unavailable

9

PISTON RINGSET 2ND

2W1-11610-20-00

Unavailable

10

PIN, PISTON

517-11633-00-00

$16.49

11

CIRCLIP 132116340000

93450-13022-00

$8.49

12

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

Unavailable

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

COLLAR (4Y2)

90387-205E9-00

Unavailable

15

BEARING(1GJ)

93306-20458-00

Unavailable

16

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

17

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

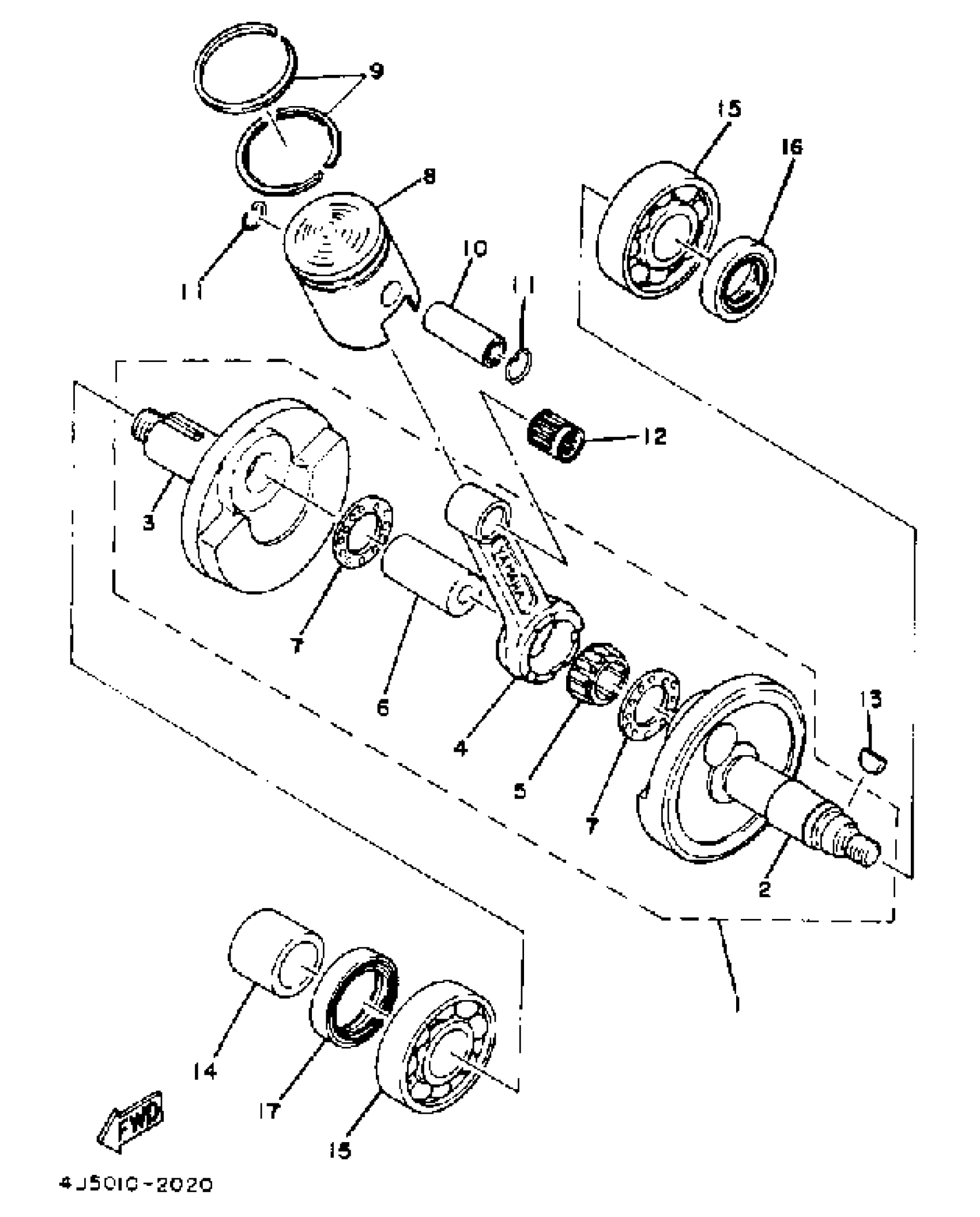

Yamaha RX50K (RX350MK) 1983 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSEMBLY

CRANK 1

CRANK 2

ROD, CONNECTING

BEARING, CYLINDRICAL(3TU)

PIN, CRANK 1

WASHER 132116850000

PISTONSTD (3T2-11631-00-97)

PISTON 1 O/S 0.25 (3T2-11635-00)

PISTON 2 O/S 0.50 (3T2-11636-00)

PISTON RING SET (STD)

PISTON RINGSET 1ST

PISTON RINGSET 2ND

PIN, PISTON

CIRCLIP 132116340000

BRG,CYL-CAL ROLLER 5G TM

KEY WOODRUFF 146115450000

COLLAR (4Y2)

BEARING(1GJ)

OIL SEAL (20X35X7-136)

OIL SEAL (28X40X8-132)
