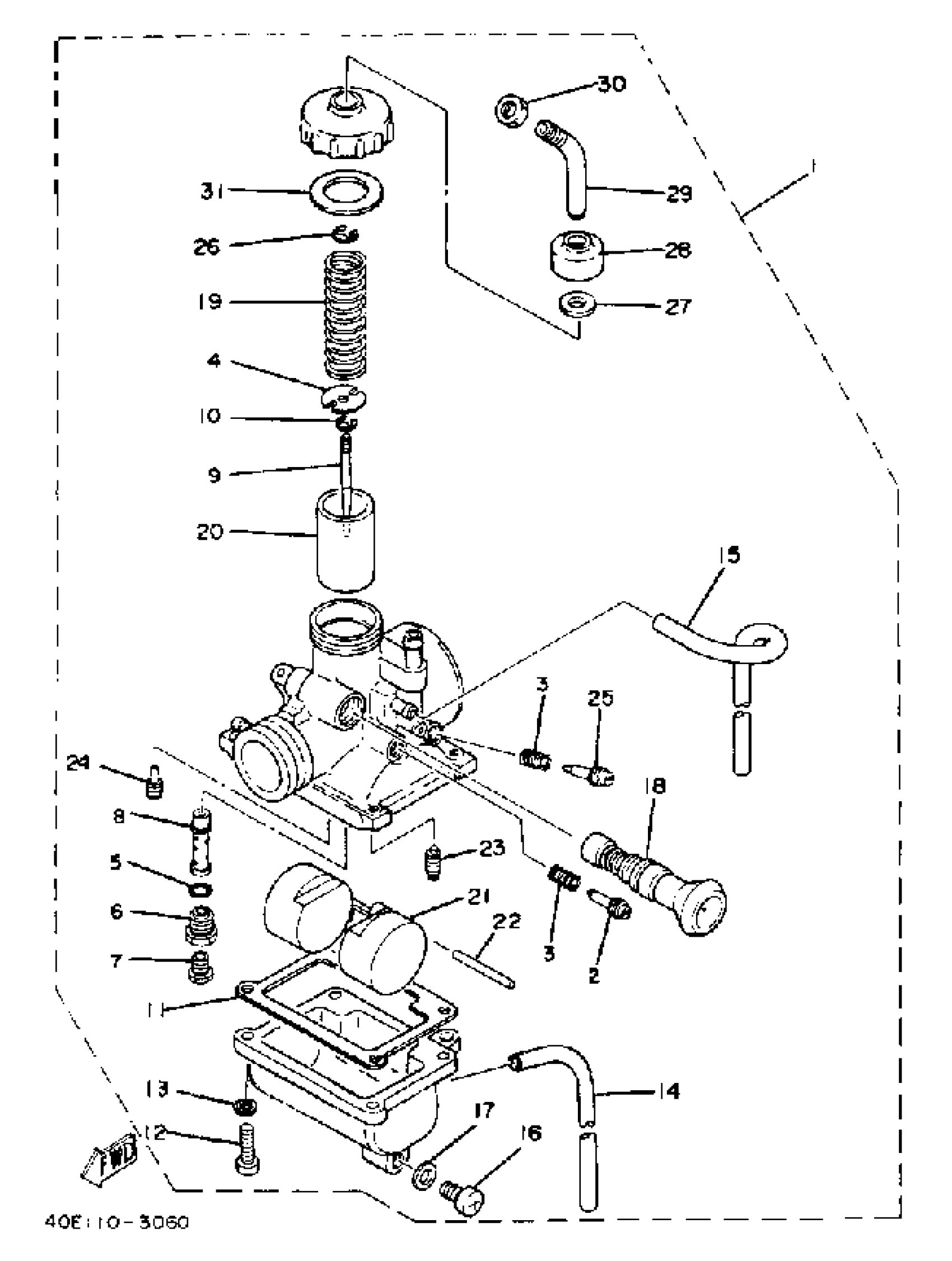

Yamaha RX50K (RX350MK) 1983 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1 (5U7-14101-00)

4U5-14101-00-00

Unavailable

2

THROTTLE SCREW SET

12G-14103-00-00

$25.99

3

SPRING, AIR ADJUSTING

127-14134-00-00

$7.99

4

SEAT, SPRING

212-14136-00-00

Unavailable

5

O-RING

214-14147-00-00

$7.99

6

. SETTER, NEEDLE JET

4A5-14145-00-00

Unavailable

7

JET, MAIN (NO.110)

127-14143-22-00

Unavailable

7

JET, MAIN (NO.120)

127-14143-24-00

$6.99

7

JET, MAIN (NO.130)

127-14143-26-00

$6.99

8

NOZZLE, MAIN

(4U5-14141-10-00)

Unavailable

9

. NEEDLE

12G-1490J-00-00

Unavailable

10

CLIP

127-14137-00-00

Unavailable

11

GASKET, FLOAT CHAMBER

353-14184-00-00

Unavailable

12

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

13

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

14

PIPE

23F-14197-00-00

Unavailable

15

PIPE, AIR VENT

183-14197-01-00

Unavailable

16

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

17

WASHER, PLUG SCREW

296-14117-00-00

Unavailable

18

PLUNGER, STARTER

4U5-14171-00-00

Unavailable

19

. SPRING, THRTL VALVE

4U5-14131-00-00

Unavailable

20

. VALVE, THROTTLE 1

4U5-14112-20-00

Unavailable

21

FLOAT

4U5-14185-00-00

Unavailable

22

PIN, FLOAT

353-14186-00-00

Unavailable

23

NEEDLE VALVE ASSY

3L5-14190-01-00

Unavailable

24

JET, PILOT (# 25)

260-14142-25-00

Unavailable

25

AIR SCREW SET

36R-14104-00-00

Unavailable

26

CLIP

363-14137-00-00

Unavailable

27

GASKET

509-14198-00-00

Unavailable

28

CAP

3X3-14169-00-00

Unavailable

29

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

30

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

31

GASKET

4U5-14126-00-00

Unavailable
