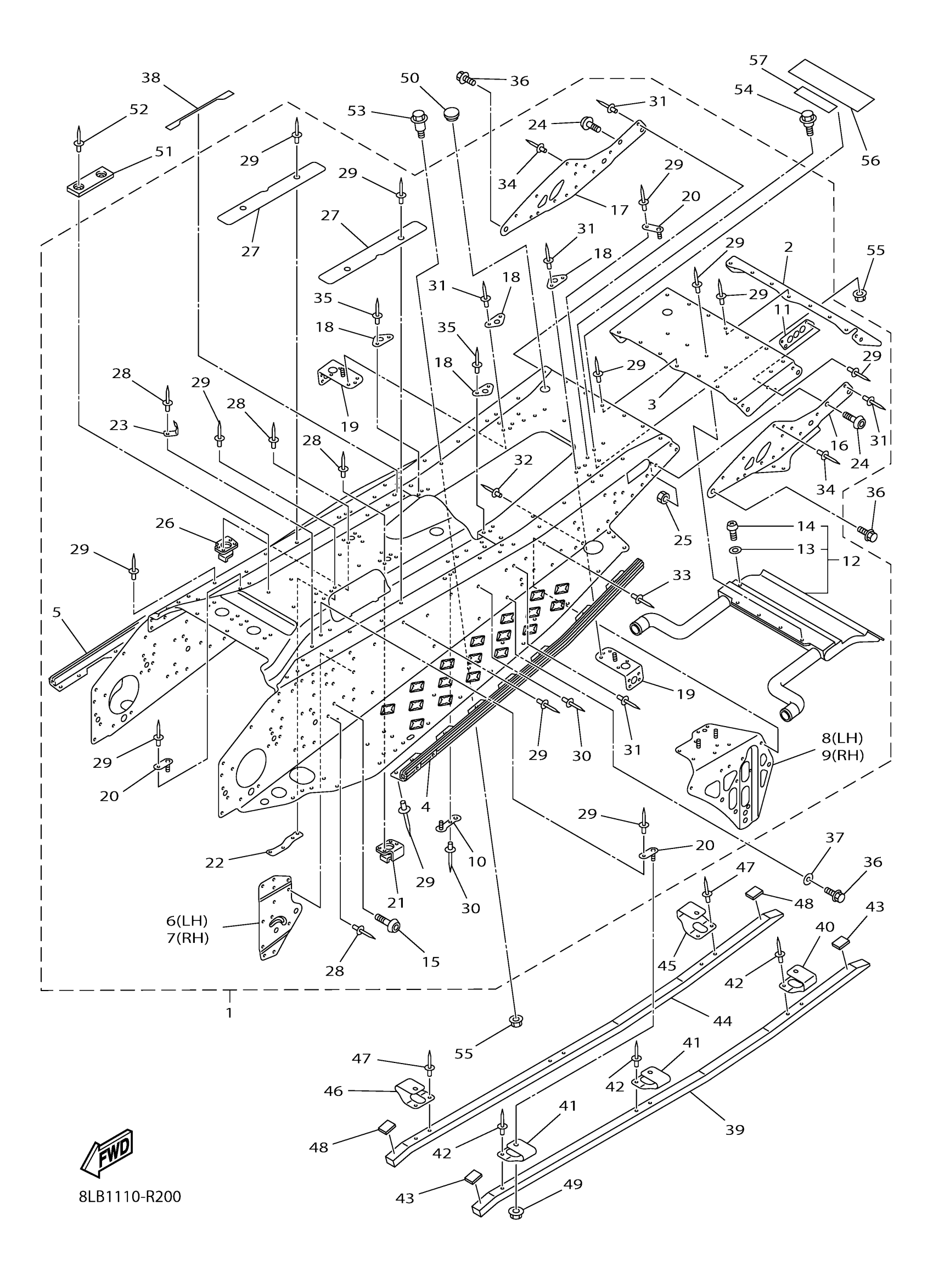

Yamaha RX1NXLJW (APEX XTX LE 1.75 50TH) 8LB5 2018 FRAME 2 Diagram
#
1
REAR FRAME COMP.
8KL-21950-00-00
Unavailable
2
REINEFORCEMENT, FRAME REAR 1
8HG-21923-00-00
Unavailable
3
PANEL, SUB FRAME 6
8KL-21917-00-00
Unavailable
4
REINFORCEMENT, FOOTREST 1
8FG-21926-00-00
Unavailable
5
REINFORCEMENT, FOOTREST 2
8FG-21936-00-00
Unavailable
6
BRACKET, MAIN TRACK 1
8HN-21943-00-00
Unavailable
7
BRACKET, MAIN TRACK 2
8HN-21953-00-00
Unavailable
8
BRACKET, RR.TRACK SUSPENTION 1
8HN-21944-00-00
Unavailable
9
BRACKET, RR.TRACK SUSPENTION 2
8HN-21954-00-00
Unavailable
10
BRACKET, FUEL TANK 1
8HG-2194N-00-00
Unavailable
11
PATCH 1
8KL-21961-00-00
Unavailable
12
HEAT EXCHANGER ASSY 4
8KL-1241A-00-00
$436.99
13
WASHER, SEAL (7G5)
90210-06006-00
$9.49
14
SCREW, PAN
98517-06012-00
$3.78
15
BOLT, BUTTON HEAD
92012-10020-00
Unavailable
16
REINF., SUB FRAME 1
8HG-21928-00-00
Unavailable
17
REINF., SUB FRAME 2
8HG-21938-00-00
Unavailable
18
PATCH
8HG-22168-00-00
Unavailable
19
PLATE 1
8HG-2162G-00-00
Unavailable
20
BRKT., 9
8HG-2251A-00-00
Unavailable
21
STAY, MUFFLER
8HG-14791-00-00
Unavailable
22
PATCH 1
8HG-21961-00-00
Unavailable
23
. CLAMP
90465-08370-00
Unavailable
24
BOLT, BUTTON HEAD
92012-08020-00
Unavailable
25
NUT,FLANGE(J10)
95702-08500-00
Unavailable
26
STAY, MUFFLER
8HG-14792-00-00
Unavailable
27
DAMPER 1
8HG-2214F-00-00
Unavailable
28
RIVET, BLIND
90267-47195-00
Unavailable
29
RIVET, BLIND
90267-48023-00
Unavailable
30
RIVET, BLIND
90267-48177-00
Unavailable
31
RIVET, BLIND
90267-48016-00
Unavailable
32
RIVET, BLIND
90267-48010-00
Unavailable
33
RIVET, BLIND (22W)
90267-48083-00
Unavailable
34
RIVET, BLIND
90267-48015-00
Unavailable
35
RIVET, BLIND
90267-48016-00
Unavailable
36
BOLT, FLANGE
95817-10020-00
Unavailable
37
WASHER, PLATE
90201-10038-00
Unavailable
38
PROTECTOR, SIDE 1
8HG-77561-00-00
Unavailable
39
PROTECTOR, FRAME
8KL-21978-00-00
Unavailable
40
BRACKET 4
8HG-2196G-00-00
Unavailable
41
BRACKET 7
8HG-2197N-00-00
Unavailable
42
RIVET, BLIND
90267-48177-00
Unavailable
43
DAMPER
8HG-21852-00-00
Unavailable
44
PROTECTOR, FRAME
8KL-21978-00-00
Unavailable
45
BRACKET 4
8HG-2196G-00-00
Unavailable
46
BRACKET 7
8HG-2197N-00-00
Unavailable
47
RIVET, BLIND
90267-48177-00
Unavailable
48
DAMPER
8HG-21852-00-00
Unavailable
49
NUT, SELF-LOCKING
95602-08200-00
Unavailable
50
PLUG
90338-20007-00
Unavailable
51
SPACER
8FA-21998-00-00
Unavailable
52
RIVET, BLIND (8L0)
90267-48059-00
Unavailable
53
BOLT
90109-06241-00
Unavailable
54
BOLT
90109-06220-00
Unavailable
55
NUT, FLANGE
95702-06500-00
Unavailable
56
LABEL, WARNING 2
8HA-77762-E0-00
Unavailable
57
LABEL, WARNING 5
8JT-77765-E0-00
Unavailable
