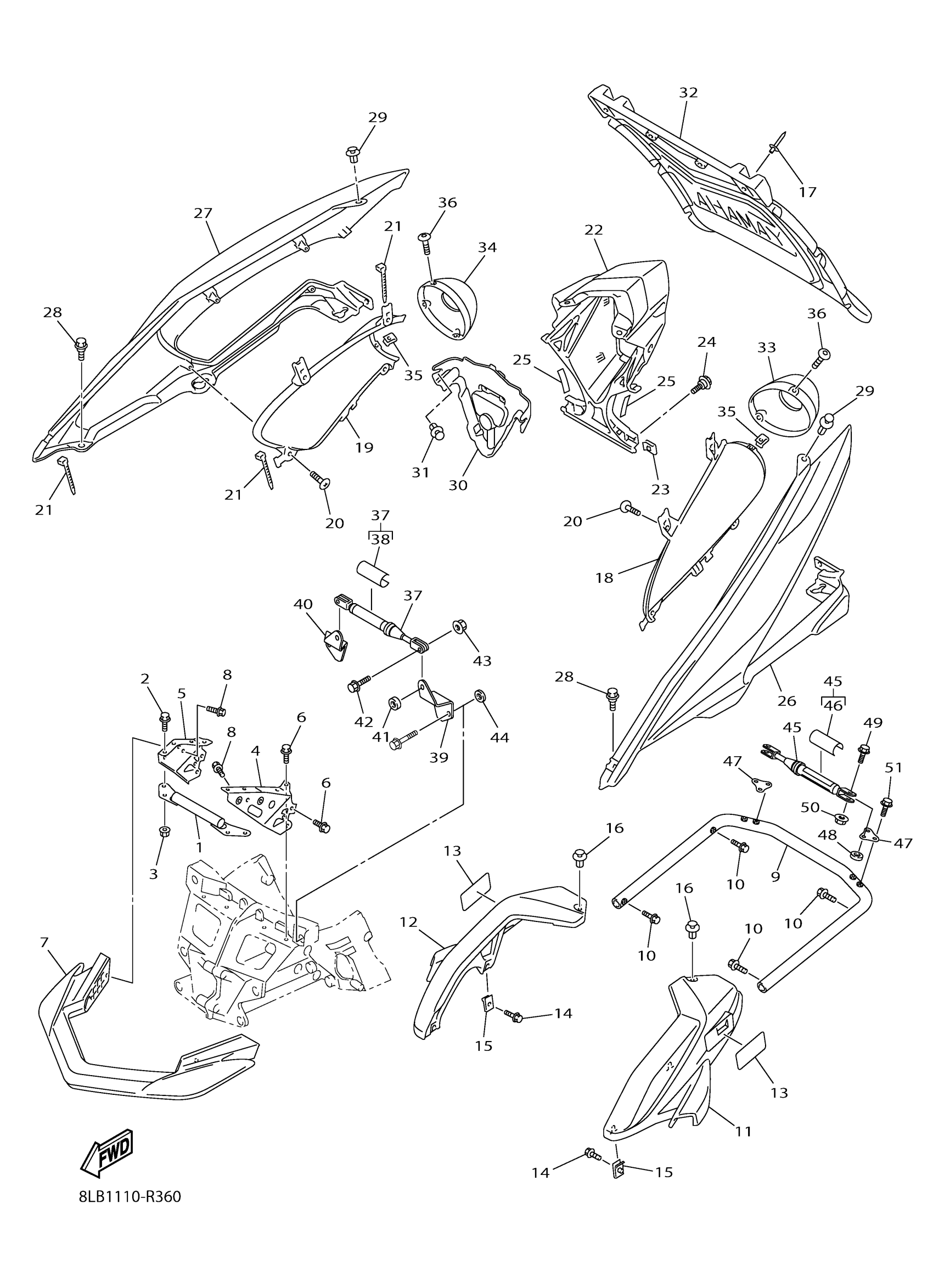

Yamaha RX1NXLJW (APEX XTX LE 1.75 50TH) 8LB5 2018 BUMPER Diagram
#
1
BRKT. ,FR. FOOD
8FP-21979-00-00
$95.99
2
BOLT, FLANGE
95817-06014-00
Unavailable
3
NUT, FLANGE
95702-06500-00
$2.39
4
BRACKET, FRONT
8FA-21949-00-00
$63.99
5
BRACKET, FRONT BUMPER
8FA-21959-00-00
$59.99
6
BOLT, FLANGE
95814-08016-00
$9.49
7
BUMPER, FRONT 1
8FA-77511-01-00
$250.99
8
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
9
BUMPER, REAR 1
8KL-77541-10-00
Unavailable
10
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
11
BUMPER, REAR 2
8HG-77542-00-00
Unavailable
12
BUMPER, REAR 3
8HG-77543-00-00
Unavailable
13
SEAL, BODY SIDE 1
8FT-7814E-00-00
Unavailable
14
BOLT, FLANGE
95817-06016-00
$2.75
15
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
RIVET
90269-08006-00
Unavailable
17
RIVET, BLIND
90267-47200-00
Unavailable
18
PROTECTOR 1
8HG-77551-00-P8
Unavailable
19
PROTECTOR 2
8HG-77552-00-P8
Unavailable
20
SCREW, TRUSS TAP.
97707-50014-00
Unavailable
21
CLAMP (6E5)
90465-13M11-00
Unavailable
22
COVER, TAILLIGHT
8HG-84516-00-00
Unavailable
23
NUT, SPRING
90183-06100-00
Unavailable
24
BOLT
90109-06220-00
Unavailable
25
DAMPER
8HG-77588-00-00
Unavailable
26
COVER, TAIL 1
8HG-2471K-00-00
Unavailable
27
COVER, TAIL 2
8HG-2472K-00-00
Unavailable
28
BOLT
90109-06220-00
Unavailable
29
RIVET
90269-08006-00
Unavailable
30
BRACKET, TAILLIGHT
8HG-2117E-00-00
Unavailable
31
RIVET
90269-08006-00
Unavailable
32
FLAP
8GT-K7595-00-00
Unavailable
33
CAP
8HG-77517-00-00
Unavailable
34
CAP
8HG-77517-10-00
Unavailable
35
NUT, SPRING
90183-050A6-00
Unavailable
36
BOLT
90111-05003-00
Unavailable
37
DAMPER BRACE SUB-ASSY.
K7R-2110K-00-00
Unavailable
38
LABEL, WARNING
K7R-22259-00-00
Unavailable
39
BRACKET 1
8JU-2194X-00-00
Unavailable
40
BRACKET 2
8JU-2195X-00-00
Unavailable
41
COLLAR
90387-10110-00
Unavailable
42
BOLT, FLANGE
95817-10035-00
Unavailable
43
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
44
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
45
DAMPER BRACE SUB-ASSY.
K7R-2110K-00-00
Unavailable
46
LABEL, WARNING
K7R-22259-00-00
Unavailable
47
BRACKET, FRONT
8KK-77531-00-00
Unavailable
48
COLLAR
90387-10110-00
Unavailable
49
BOLT, FLANGE
95817-10035-00
Unavailable
50
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
51
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
