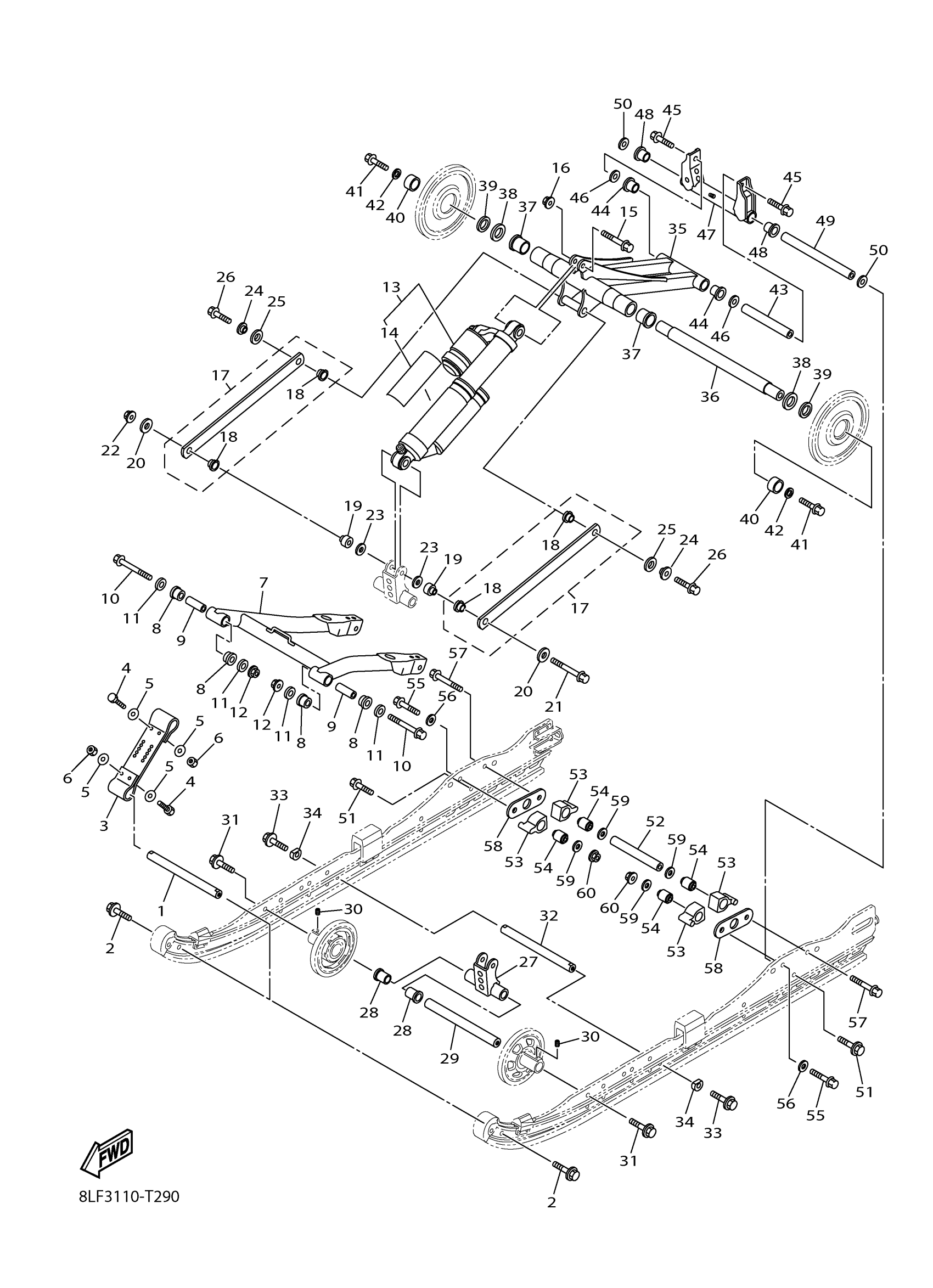

Yamaha RX1NLJW (APEX LE 50TH) 8LF3 2018 TRACK SUSPENSION 2 Diagram

#

Description
Price

1

SHAFT 4

8GL-47486-00-00

Unavailable

2

BOLT, FLANGE

95817-10030-00

$8.49

3

STOPPER 1

8KM-47495-00-00

Unavailable

4

BOLT, HEXAGON

97017-06025-00

$4.24

5

WASHER, PLATE

90201-06081-00

Unavailable

6

NUT, NYLON

95707-06300-00

$3.50

7

ARM, PIVOT 1

8KM-47331-00-00

$253.99

8

BUSH, SOLID(2WR)

90381-18068-00

$39.99

9

SHAFT 1

8GL-47465-00-00

Unavailable

10

BOLT, FLANGE

90105-10202-00

$7.49

11

WASHER, PLATE

90201-10046-00

$7.49

12

NUT, S/L FLANGE

95602-10200-00

$4.82

13

SHOCK ABSORBER

8LB-47480-00-00

Unavailable

14

LABEL, WARNING

8KM-22259-00-00

$41.99

15

BOLT, FLANGE

90105-10283-00

$5.60

16

NUT, S/L FLANGE

95602-10200-00

$4.82

17

RELAY ROD ASSY

8KM-47490-00-00

Unavailable

18

BUSH, SOLID

90381-16002-00

Unavailable

19

COLLAR 2

8HR-47366-00-00

Unavailable

20

WASHER, PLATE

90201-16027-00

Unavailable

21

BOLT, FLANGE

90105-10375-00

Unavailable

22

NUT, S/L FLANGE

95602-10200-00

$4.82

23

WASHER, PLATE

90201-10052-00

Unavailable

24

COLLAR 2

8HR-47366-10-00

Unavailable

25

WASHER, PLATE

90201-16027-00

Unavailable

26

BOLT, FLANGE

95817-10030-00

$8.49

27

BRACKET, ARM PIVOT

8HR-47349-00-00

Unavailable

28

BUSH

90386-20001-00

Unavailable

29

SHAFT 5

8GN-47487-00-00

Unavailable

30

BOLT, SET (8K2)

90113-06039-00

Unavailable

31

BOLT, FLANGE

90105-10209-00

Unavailable

32

SHAFT 4

8GL-47486-00-00

Unavailable

33

BOLT, FLANGE

95817-10030-00

$8.49

34

SPACER

8GL-47341-00-00

Unavailable

35

ARM, PIVOT 2

8KM-47332-00-00

Unavailable

36

SHAFT 2

8FU-47475-00-00

Unavailable

37

BUSH, SOLID(8CJ)

90381-28108-00

Unavailable

38

WASHER, PLATE (8V2)

90201-251G8-00

Unavailable

39

WASHER, PLATE(8CJ)

90201-250T6-00

Unavailable

40

COLLAR

90387-25005-00

Unavailable

41

BOLT

90109-10032-00

Unavailable

42

WASHER, PLATE

90201-10039-00

Unavailable

43

SHAFT 6

8KM-47488-20-00

Unavailable

44

BUSH(JA1)

90386-19160-00

Unavailable

45

BOLT, FLANGE

90105-10189-00

Unavailable

46

WASHER, PLATE

90201-10043-00

Unavailable

47

BRACKET 3

8KM-47417-00-00

Unavailable

48

BUSH(JA1)

90386-19160-00

Unavailable

49

SHAFT 3

8FU-47485-00-00

Unavailable

50

WASHER, PLATE

90201-10076-00

Unavailable

51

BOLT, FLANGE

95817-10030-00

$8.49

52

SHAFT 6

8KM-47488-00-00

Unavailable

53

STOPPER 2

8KM-47496-00-00

Unavailable

54

BUSH, REAR SHOCK ABSORBER

4GY-22216-30-00

Unavailable

55

BOLT, FLANGE

90105-10210-00

Unavailable

56

WASHER, PLATE

90201-10043-00

Unavailable

57

BOLT, FLANGE

90105-10029-00

Unavailable

58

PLATE, GUIDE

8KM-47467-00-00

Unavailable

59

WASHER, PLATE

90201-10076-00

Unavailable

60

NUT, S/L FLANGE

95602-10200-00

$4.82
