- RX1NLJW (APEX LE 50TH) 8LF3 2018
TRACK SUSPENSION 1

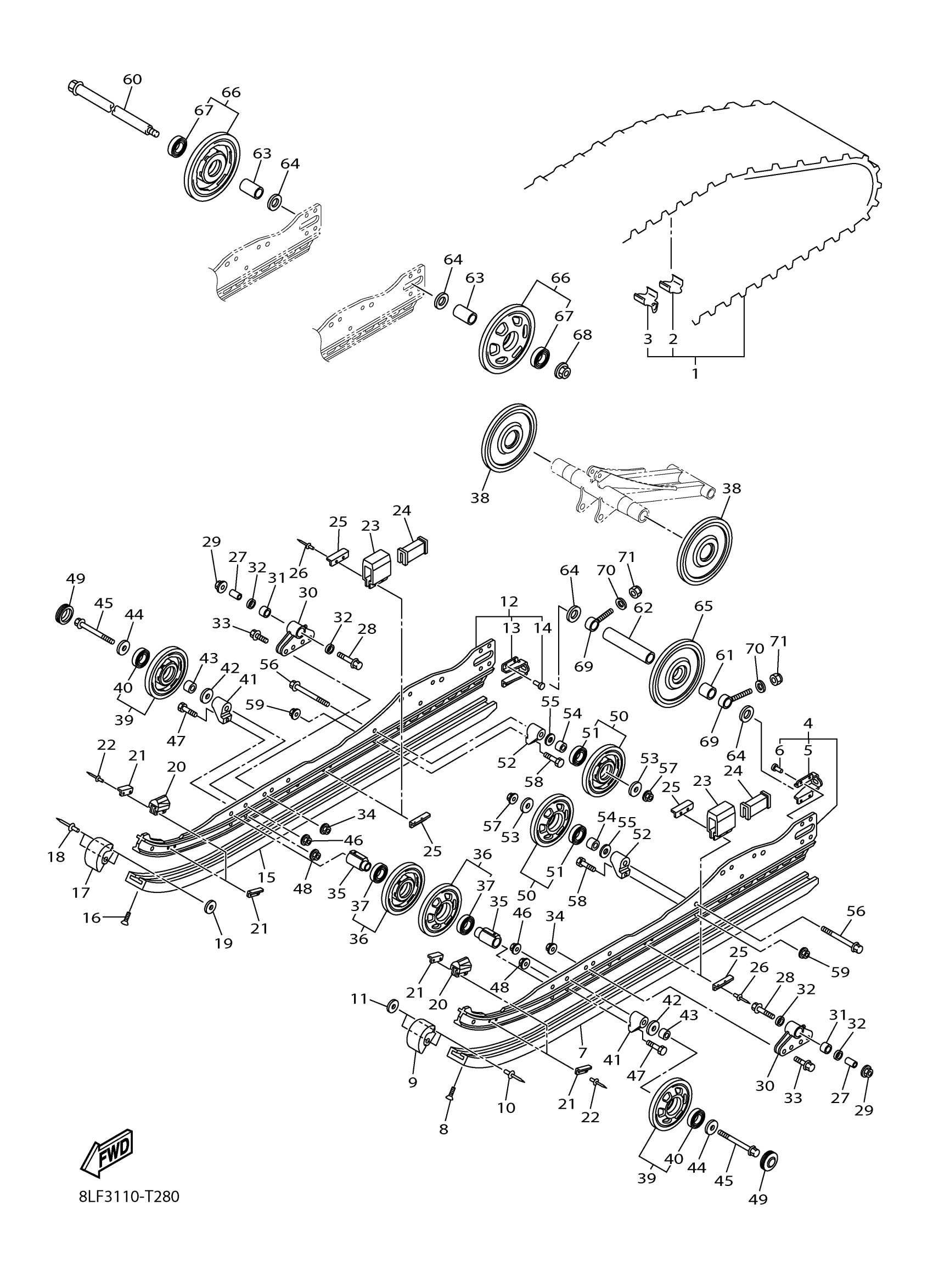

Yamaha RX1NLJW (APEX LE 50TH) 8LF3 2018 TRACK SUSPENSION 1 Diagram
#
1
TRACK ASSY
8KM-47110-00-00
Unavailable
2
PLATE, REINFORCEMENT
8HR-47113-09-00
$17.99
3
METAL, SLIDE
8HR-47115-09-00
$16.99
4
FRAME, SLIDING 1
8KM-47411-00-00
$379.99
5
BRACKET
8DM-4741B-00-00
$45.99
6
RIVET
8V0-47468-00-00
$10.49
7
RUNNER, SLIDING 1
8JD-47421-01-00
$53.99
8
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
9
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
10
RIVET BLIND
90267-48194-00
$3.28
11
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
12
FRAME, SLIDING 2
8KM-47412-00-00
Unavailable
13
BRACKET
8DM-4741B-00-00
$45.99
14
RIVET
8V0-47468-00-00
$10.49
15
RUNNER, SLIDING 1
8JD-47421-01-00
$53.99
16
SCREW, CROSSRECESS (8G6)
90151-06005-00
$9.49
17
RUNNER, SLIDING 2
8GL-47422-00-00
$30.99
18
RIVET BLIND
90267-48194-00
$3.28
19
WASHER, PLATE(8CM)
90201-047R8-00
$3.02
20
DAMPER 1
8ES-47456-00-00
Unavailable
21
PLATE, DAMPER
8K2-47458-01-00
Unavailable
22
RIVET, BLIND
90267-48199-00
Unavailable
23
DAMPER 2
8GL-47457-00-00
Unavailable
24
SPACER
8GL-47573-00-00
Unavailable
25
PLATE, DAMPER
8AX-47458-00-00
Unavailable
26
RIVET, BLIND
90267-48199-00
Unavailable
27
COLLAR
90387-1012A-00
Unavailable
28
BOLT, WASHER BASED(4KD)
90105-10728-00
Unavailable
29
NUT, S/L FLANGE
95602-10200-00
Unavailable
30
BRACKET 1
8KM-47415-00-00
Unavailable
31
BEARING
93315-31758-00
Unavailable
32
OIL SEAL
93109-17071-00
Unavailable
33
. BOLT, FLANGE
95812-10025-00
Unavailable
34
NUT, S/L FLANGE
95602-10200-00
Unavailable
35
COLLAR
8ES-47319-10-00
Unavailable
36
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
37
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
38
GUIDE WHEEL ASSY
8CR-47550-00-00
Unavailable
39
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
40
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
41
BRACKET 7
8CM-47419-10-00
Unavailable
42
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
43
COLLAR
90387-10031-00
Unavailable
44
WASHER, PLATE
90201-101U2-00
Unavailable
45
BOLT, FLANGE
90105-10241-00
Unavailable
46
NUT, S/L FLANGE
95602-10200-00
Unavailable
47
BOLT
90101-08063-00
Unavailable
48
NUT, SELF-LOCKING
95602-08200-00
Unavailable
49
CAP, WHEEL
8HF-47317-00-00
Unavailable
50
WHEEL BLK 130MM
SMA-8FP38-01-BK
Unavailable
51
BRG,R-B 6005 47MM 85G KY
93306-00507-00
Unavailable
52
BRACKET 7
8CM-47419-10-00
Unavailable
53
WASHER, PLATE (2Y4)
90201-10714-00
Unavailable
54
COLLAR
90387-10031-00
Unavailable
55
WASHER, PLATE
90201-101U2-00
Unavailable
56
BOLT, FLANGE
90105-10241-00
Unavailable
57
NUT, S/L FLANGE
95602-10200-00
Unavailable
58
BOLT
90101-08063-00
Unavailable
59
NUT, SELF-LOCKING
95602-08200-00
Unavailable
60
REAR AXLE COMP.
8L8-47520-10-00
Unavailable
61
COLLAR
90387-20015-00
Unavailable
62
COLLAR
90387-20016-00
Unavailable
63
COLLAR
90387-20039-00
Unavailable
64
WASHER, PLATE(89W)
90201-205R6-00
Unavailable
65
GUIDE WHEEL ASSY
8CR-47550-10-00
Unavailable
66
REAR WHEEL BLK 178MM
SMA-8FP38-02-BK
Unavailable
67
BEARING(8AB)
93306-00444-00
Unavailable
68
NUT, U FLANGE
95602-14200-00
Unavailable
69
COLLAR 3
8DM-47479-00-00
Unavailable
70
WASHER, PLATE
92990-10600-00
Unavailable
71
NUT, NYLON
95707-10300-00
Unavailable
