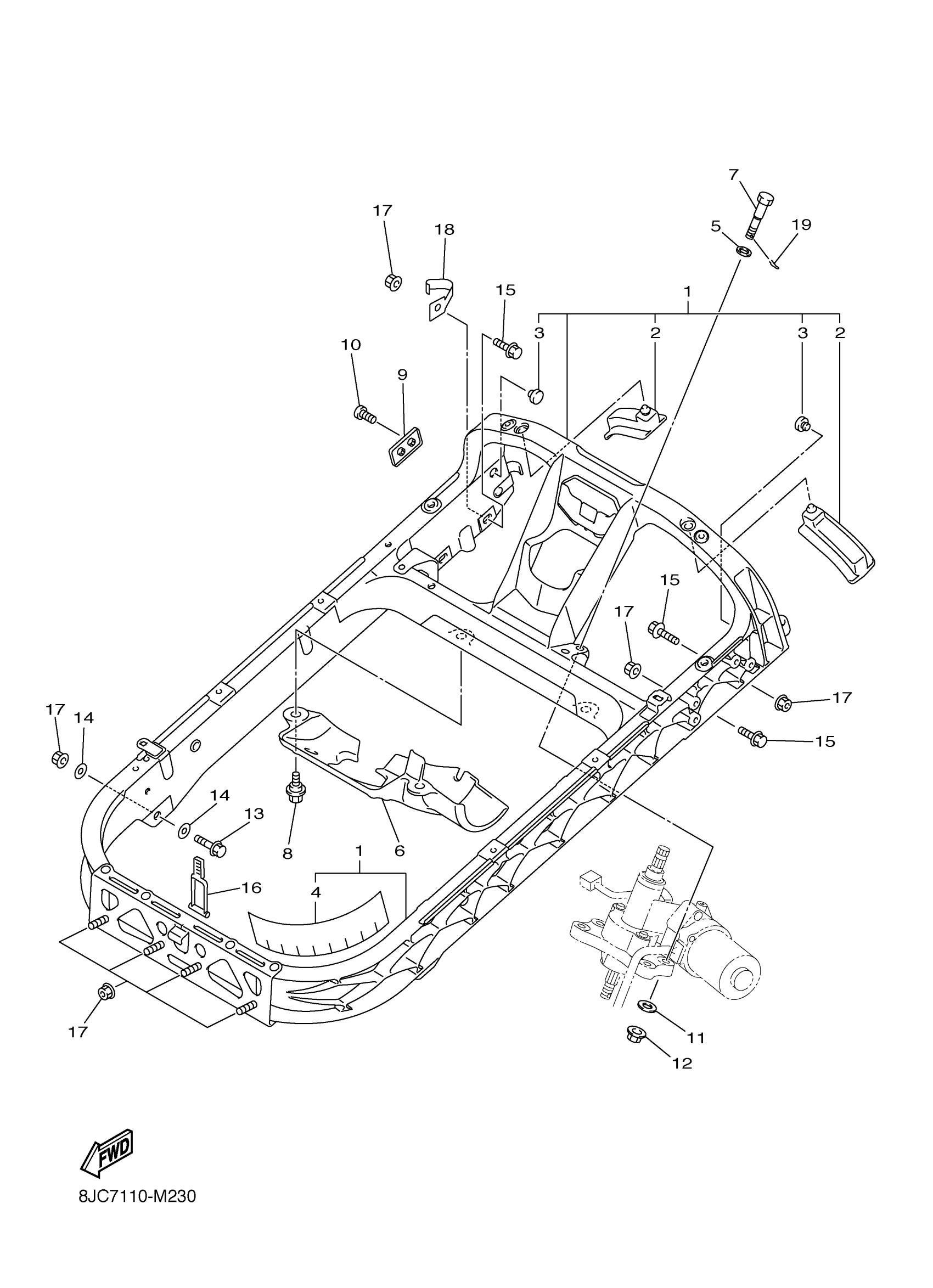

Yamaha RX1NLJW (APEX LE 50TH) 8LF3 2018 STEERING GATE Diagram

#

Description
Price

1

STEERING GATE COMP.

8HG-23870-02-00

Unavailable

2

STOPPER

8HG-23376-00-00

$11.49

3

STOPPER

8FA-24768-00-00

Unavailable

4

SPACER

8HV-23858-00-00

$3.81

5

WASHER, PLATE

90201-10032-00

$1.17

6

COVER, MOTOR

8HG-238B6-01-00

$30.99

7

BOLT, WITH HOLE

90102-08007-00

Unavailable

8

BOLT(3KJ)

90109-063F1-00

$2.97

9

BRACKET

JT1-83614-00-00

$28.99

10

SCREW, BIND (705)

98980-06016-00

$8.49

11

WASHER, PLATE(49E)

90201-087H6-00

$2.39

12

NUT,FLANGE(J10)

95702-08500-00

$1.43

13

BOLT, FLANGE

90105-08236-00

$3.55

14

WASHER (853)

90201-08326-00

$8.49

15

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

16

LATCH

8FA-2389E-00-00

Unavailable

17

NUT, SELF-LOCKING

95602-08200-00

Unavailable

18

CLAMP

90462-10022-00

Unavailable

19

CLIP 136253750000

90468-12006-00

Unavailable
