Description

Price

1

OIL PUMP ASSY

8FA-13300-10-00

Unavailable

2

O-RING (1L9)

93210-18322-00

$5.60

3

SPROCKET, DRIVEN

8FA-13355-00-00

Unavailable

4

BOLT(J17)

91312-06035-00

$3.28

5

PIN, DOWEL

99530-08012-00

Unavailable

6

PIPE, OIL 1

8FA-13416-00-00

Unavailable

7

O-RING (26H)

93210-16629-00

$7.49

8

BOLT,SOCKET

91317-06012-00

$8.49

9

PIPE, DELIVERY 1

8FP-13161-00-00

Unavailable

10

BOLT,SOCKET

91317-06012-00

$8.49

11

HOSE, OIL 1

8FP-13464-00-00

Unavailable

12

CLIP(34X)

90467-22097-00

$9.49

13

HOSE, OIL 2

8FA-13465-00-00

$91.99

14

HOSE CLAMP ASSY

90450-28001-00

$14.99

15

CONNECTOR, SUCTION PIPE 2

8FA-1311A-00-00

$34.99

16

O-RING (26H)

93210-16629-00

$7.49

17

BOLT (33M)

91312-06014-00

Unavailable

18

CHAIN

94580-31058-00

Unavailable

19

HOLDER

8FA-13898-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

$8.49

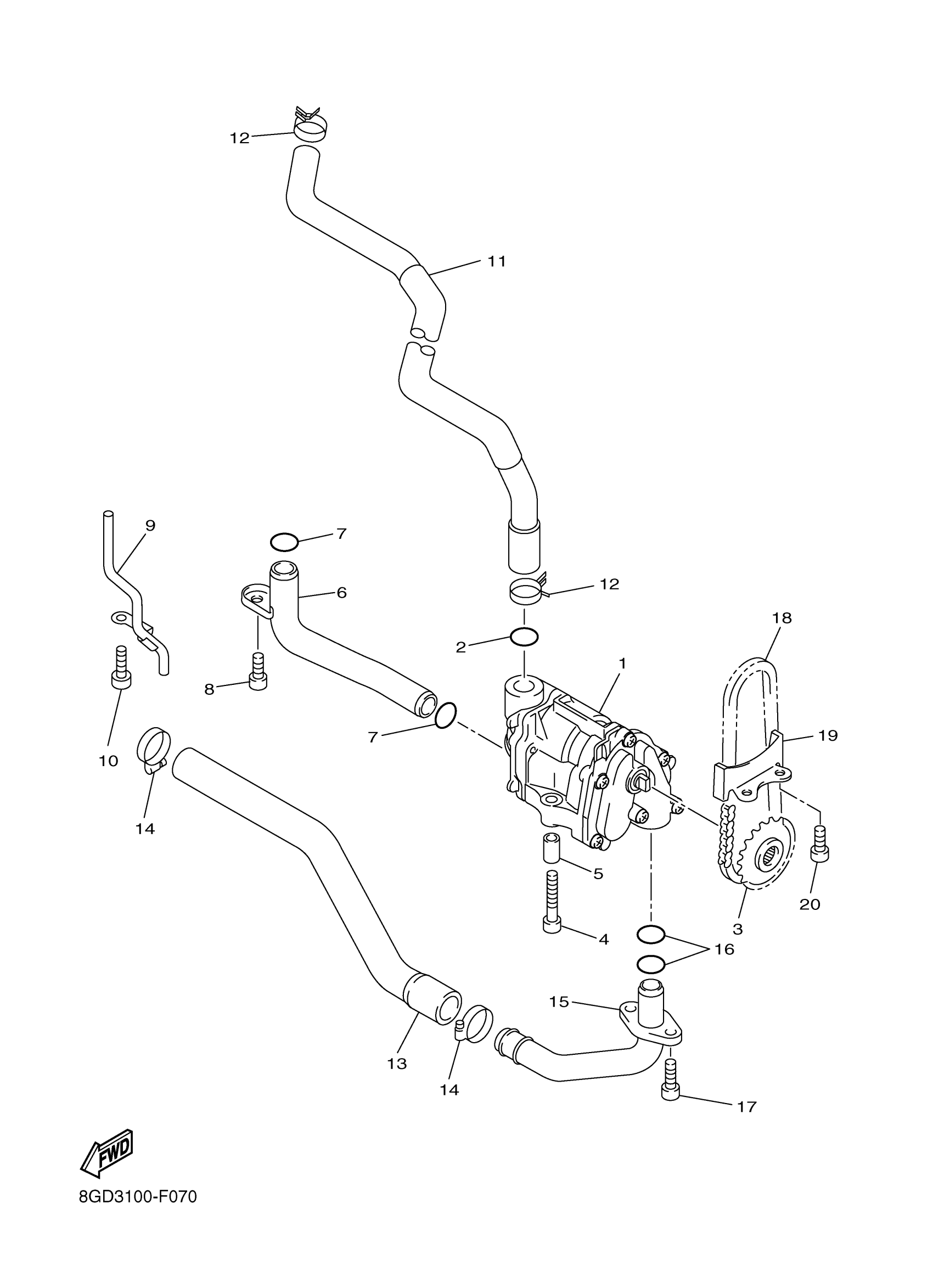

Yamaha RX1NLJW (APEX LE 50TH) 8LF3 2018 OIL PUMP Diagram

OIL PUMP ASSY

O-RING (1L9)

SPROCKET, DRIVEN

BOLT(J17)

PIN, DOWEL

PIPE, OIL 1

O-RING (26H)

BOLT,SOCKET

PIPE, DELIVERY 1

BOLT,SOCKET

HOSE, OIL 1

CLIP(34X)

HOSE, OIL 2

HOSE CLAMP ASSY

CONNECTOR, SUCTION PIPE 2

O-RING (26H)

BOLT (33M)

CHAIN

HOLDER

BOLT,SOCKET
