Description

Price

1

JOINT, CARBURETOR 1

8FP-13586-00-00

$30.99

2

HOSE CLAMP ASSY

90450-62004-00

Unavailable

3

HOSE 1

8HG-1243A-00-00

Unavailable

4

CLIP(3BM)

90467-10135-00

$8.49

5

CLIP

90467-120A5-00

$8.49

6

HOSE 3

8FP-12578-00-00

$32.99

7

CLIP(3BM)

90467-10135-00

$8.49

8

CLIP

90467-120A5-00

$8.49

9

SILENCER, INTAKE 1

8HG-14431-00-00

Unavailable

10

SILENCER, INTAKE 2

8HG-14441-00-00

Unavailable

11

PLATE, ELEMENT

8FP-14472-00-00

Unavailable

12

ELEMENT, AIR CLEANER

8FP-14451-00-00

$28.99

13

HOOK

8FA-14436-00-00

$6.99

14

DAMPER 1

8FP-14425-00-00

$8.49

15

SEAL

8FP-14452-00-00

Unavailable

16

PIPE

8FP-14419-00-00

Unavailable

17

JOINT, AIR CLEANER 1

8HG-14453-01-00

Unavailable

18

BAND

1UA-82591-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-53007-00

Unavailable

20

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

21

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

22

HOSE 1

8HG-13545-00-00

Unavailable

23

LABEL, CAUTION

8FA-2389C-E0-00

Unavailable

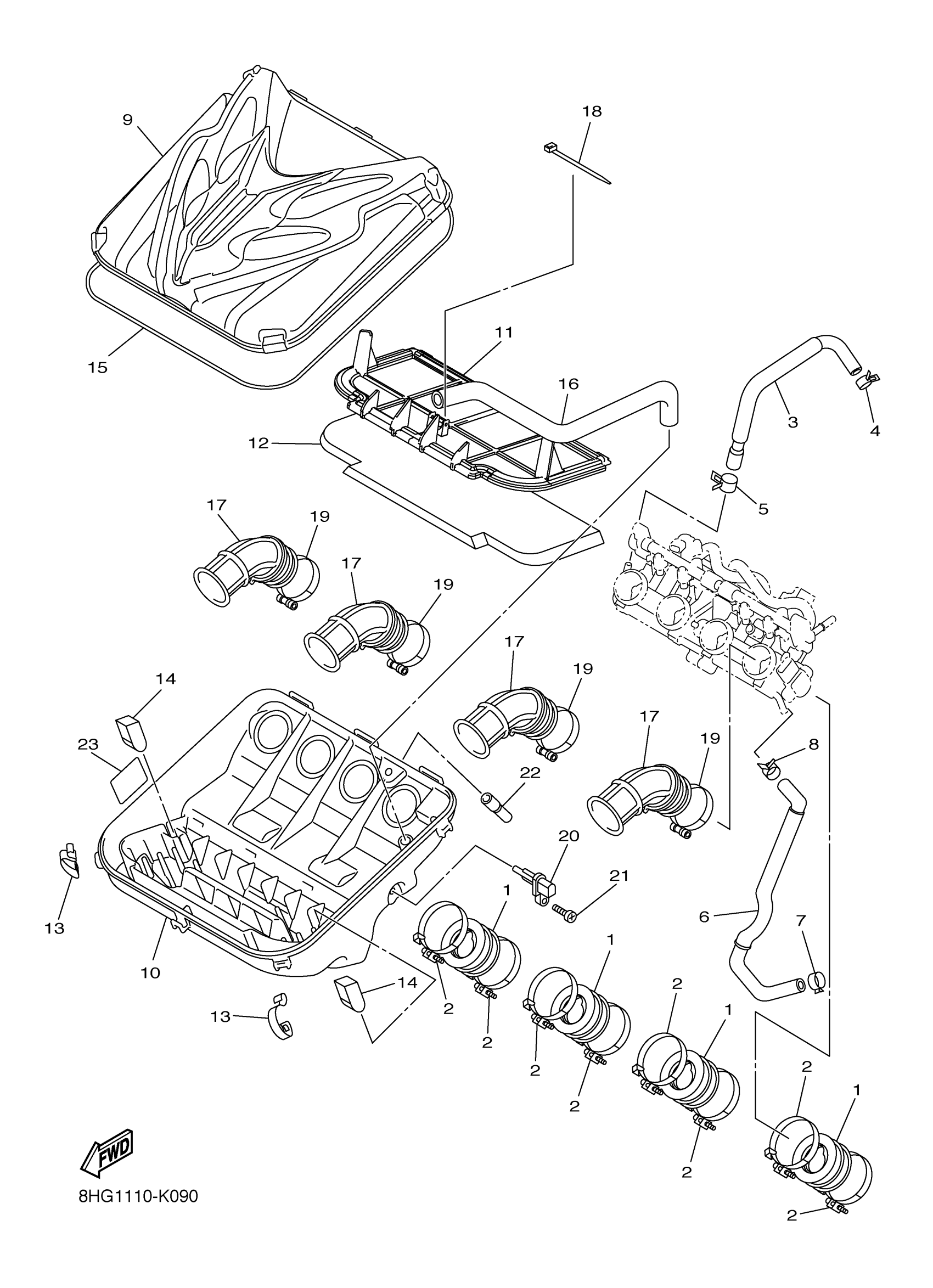

Yamaha RX10XTLHL (APEX XTX 1.75 LE) 8LB3 2017 INTAKE Diagram

JOINT, CARBURETOR 1

HOSE CLAMP ASSY

HOSE 1

CLIP(3BM)

CLIP

HOSE 3

CLIP(3BM)

CLIP

SILENCER, INTAKE 1

SILENCER, INTAKE 2

PLATE, ELEMENT

ELEMENT, AIR CLEANER

HOOK

DAMPER 1

SEAL

PIPE

JOINT, AIR CLEANER 1

BAND

HOSE CLAMP ASSY

SENSOR, AIR TEMPERATURE

SCREW, PANHEAD TAPPING

HOSE 1

LABEL, CAUTION
