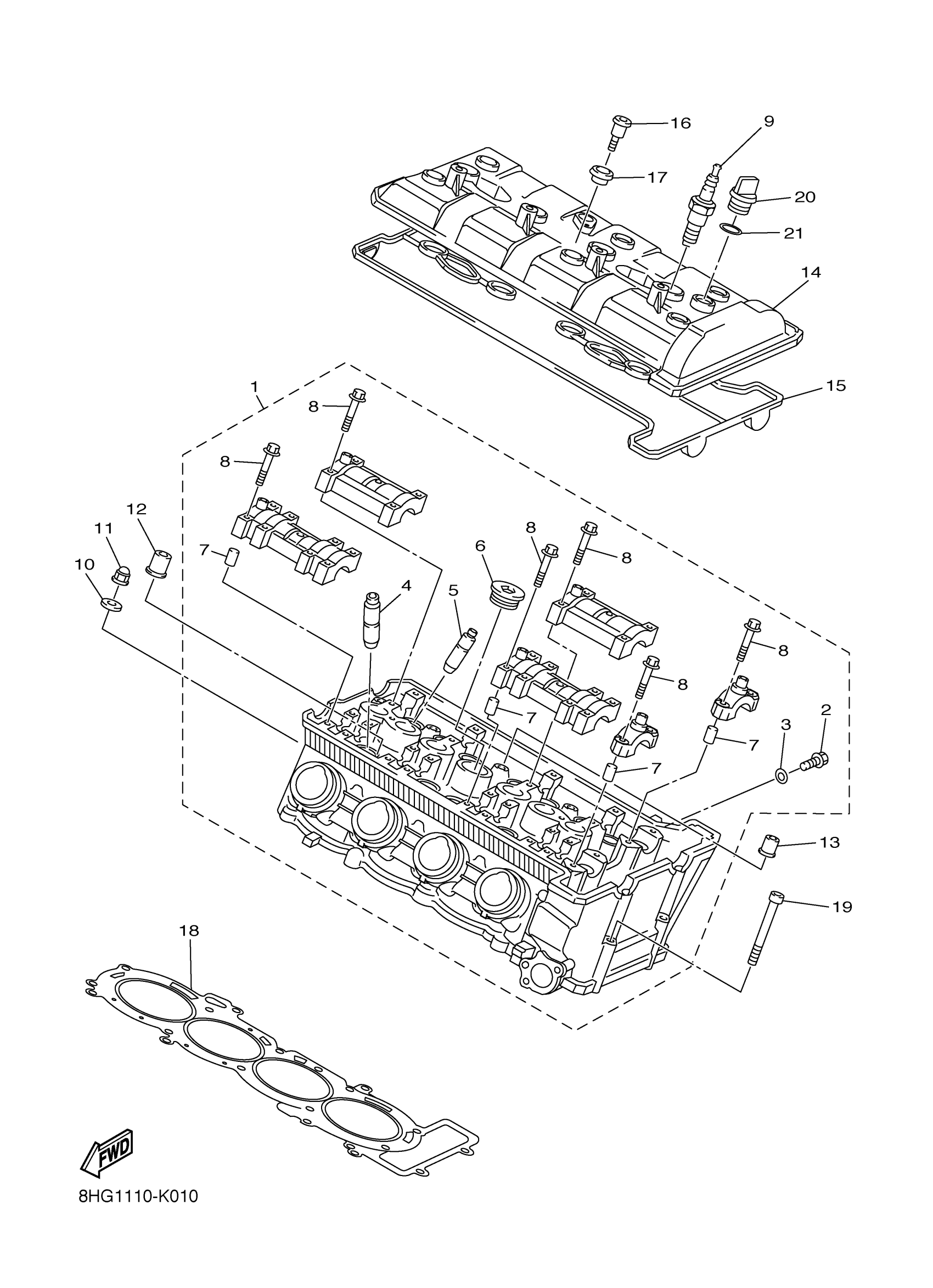

Yamaha RX10XTLHL (APEX XTX 1.75 LE) 8LB3 2017 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY

8HG-11101-09-00

Unavailable

BOLT, FLANGE

95022-06012-00

$3.29

GASKET 256113960000

90430-06014-00

Unavailable

GUIDE, INTAKE VALVE

3TJ-11133-10-00

$67.99

GUIDE, VALVE 2

8HG-11134-10-00

Unavailable

PLUG, STRAIGHT SCREW

90340-27129-00

$5.60

PIN, DOWEL(3XW)

91808-16023-00

$8.49

. BOLT, FLANGE

90105-06026-00

Unavailable

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

WASHER, PLATE

90201-10033-00

$8.49

NUT, CROWN(2GG)

90176-10075-00

$8.49

NUT

90179-10006-00

$9.49

NUT (26H)

90179-10414-00

$11.49

COVER, CYLINDER HEAD 1

8FP-11191-00-00

Unavailable

GASKET, HEAD COVER 1

8FP-11193-00-00

$59.99

BOLT(4BP)

90109-066F0-00

Unavailable

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

GASKET, CYLINDER HEAD 1

8HG-11181-00-00

Unavailable

BOLT

91312-06060-00

Unavailable

PLUG, OIL

3Y1-15363-10-00

Unavailable

O-RING (646)

93210-19123-00

Unavailable
