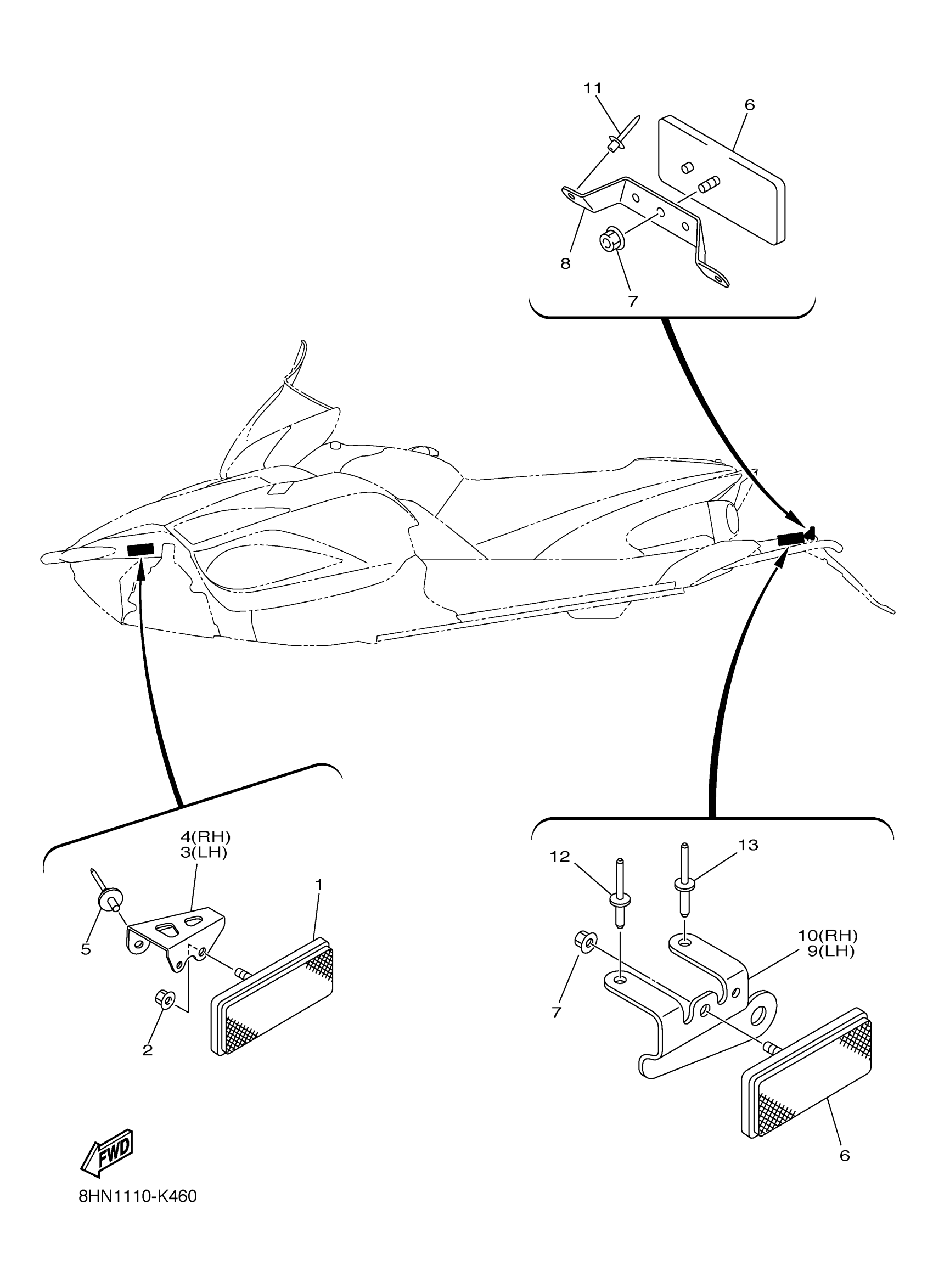

Yamaha RX10XTHL (APEX XTX) 8KL3 2017 ELECTRICAL 3 Diagram

#

Description
Price

1

REFLECTOR ASSY

8GM-85110-00-00

$11.11

2

NUT, FLANGE

95702-05500-00

$0.73

3

BRACKET 1

8FR-77421-00-00

Unavailable

4

BRACKET 2

8FR-77422-00-00

Unavailable

5

RIVET, BLIND(41R)

90267-48104-00

$2.46

6

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

7

NUT, FLANGE

95702-05500-00

$0.73

8

BRACKET, REFLECTOR 1

8HG-85132-00-00

Unavailable

9

BRACKET, REFLECTOR 2

8HN-85142-00-00

Unavailable

10

BRACKET 3

8HN-85152-00-00

Unavailable

11

RIVET, BLIND

90267-48023-00

$8.06

12

RIVET, BLIND

90267-48177-00

$1.60

13

RIVET, BLIND

90267-48016-00

$7.32
